FM82P5005

Overview

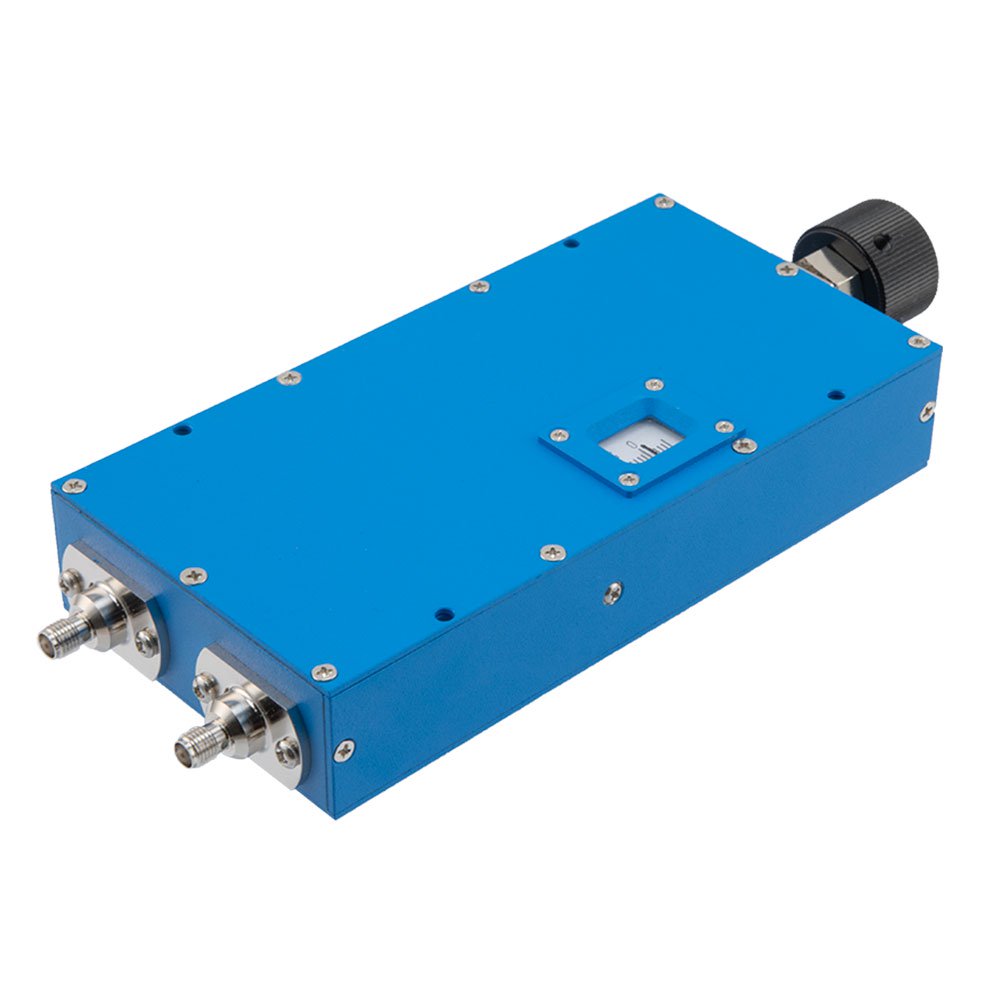

The FM82P5005 is an adjustable phase shifter manufactured by Fairview Microwave, designed for signal conditioning applications. It operates across a frequency range from DC to 4 GHz. The device provides an adjustable phase shift of 60 degrees per gigahertz, resulting in a total tuning range of 0 to 240 degrees. It features SMA female connectors and utilizes a rotary dial design for continuous adjustment.

Feature Summary

• Continuous phase adjustment via rotary dial mechanism
• Linear phase tuning rate of 60 degrees per gigahertz
• SMA female connectorized interface

Applications

• Radar systems requiring precise phase control
• Wireless communication test equipment
• RF signal processing circuits

Procurement Notes

Verify the specific datasheet version for the FM82P5005 to confirm current manufacturing status and detailed electrical specifications. Ensure compatibility with SMA female interfaces in your system design. Check for any regional distribution restrictions or supply limitations before finalizing procurement plans.

Selection Notes

Select this component when a wideband phase adjustment capability is required from DC up to 4 GHz. The linear tuning characteristic simplifies calibration processes. Consider the physical size and weight constraints associated with the rotary dial assembly during mechanical integration.

Part Context

This model belongs to Fairview Microwave's line of RF signal conditioning components. It is categorized under phase shifters within the broader signal conditioning family. The product serves as a modular solution for integrating variable phase delay into RF chains without complex electronic control loops.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Evaluate other Fairview Microwave phase shifters like the FM82P5007 or FM82P5012 only if frequency ranges or connector types differ from project requirements.
