FM82P5006

Overview

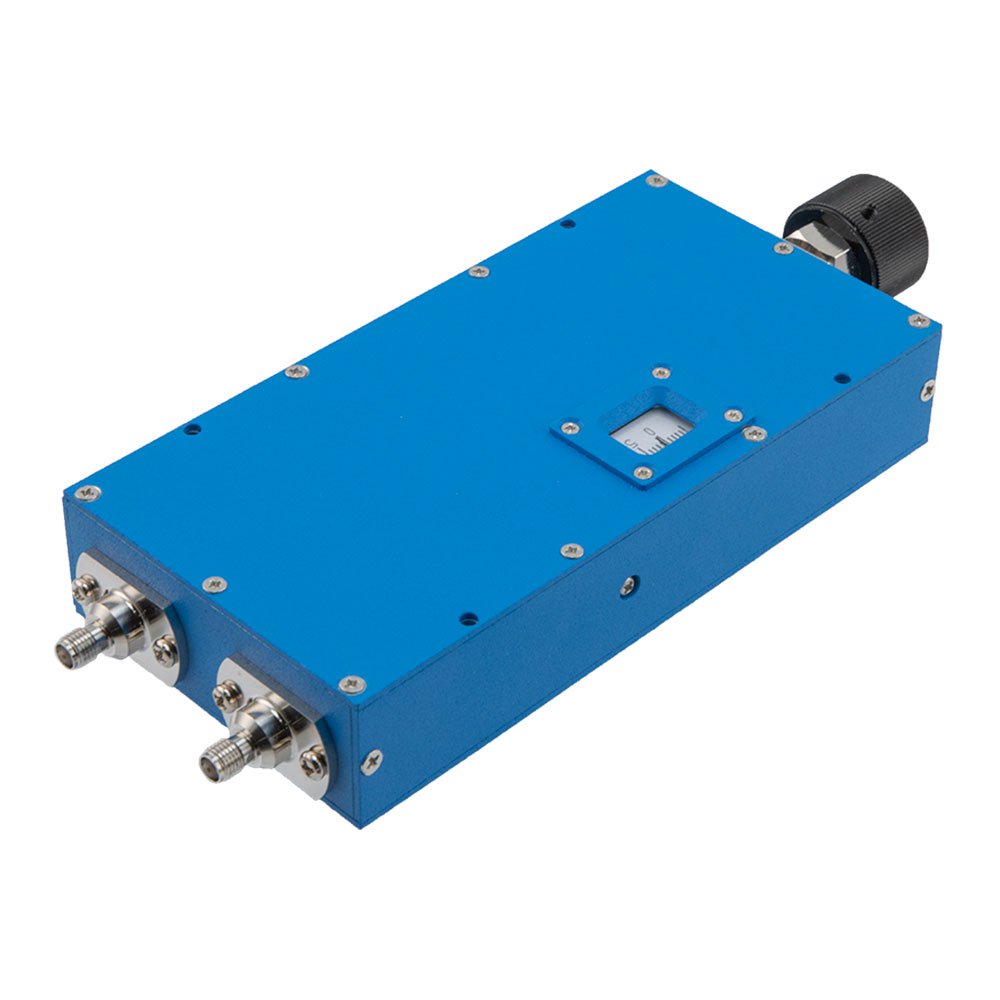

The FM82P5006 is an adjustable phase shifter manufactured by Fairview Microwave. It operates from DC to 8 GHz with an adjustable phase shift of 60 degrees per GHz. The component features SMA connectors and is designed for signal conditioning applications requiring precise phase control within the specified frequency range.

Feature Summary

• Provides continuous phase adjustment at a rate of 60 degrees per GHz
• Operates across a wide frequency spectrum from DC to 8 GHz
• Utilizes SMA connectors for standard RF interfacing

Applications

• Signal conditioning systems
• RF test and measurement equipment
• Phased array antenna calibration

Procurement Notes

Verify availability through authorized distributors as supply status may vary. Confirm connector polarity and cable assembly requirements if integrating into existing RF chains. Ensure environmental conditions match operational specifications for reliable performance in field deployments.

Selection Notes

Select this model when phase linearity and wideband operation are critical. Compare against fixed phase shifters if variable adjustment is not required. Consider thermal management needs given the active nature of phase adjustment mechanisms in high-frequency environments.

Part Context

This component belongs to Fairview Microwave's signal conditioning portfolio, specifically within the adjustable phase shifter category. It complements other RF components like attenuators and amplifiers by providing dynamic phase control capabilities essential for modern communication systems.

Replacement Considerations

FM82P5012 offers similar functionality but operates up to 4 GHz with N-type connectors. FM82P5007 provides 90 degrees per GHz adjustment up to 2 GHz with SMA connectors. Verify interface compatibility and frequency coverage before substitution.
