Product Detailed Parameters
- Description：PHASE SHIFTER SMA 8 GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Phase Shifter
- Frequency：0Hz ~ 8GHz
- RF Type：Radar
- Secondary Attributes：720° Phase Shift
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

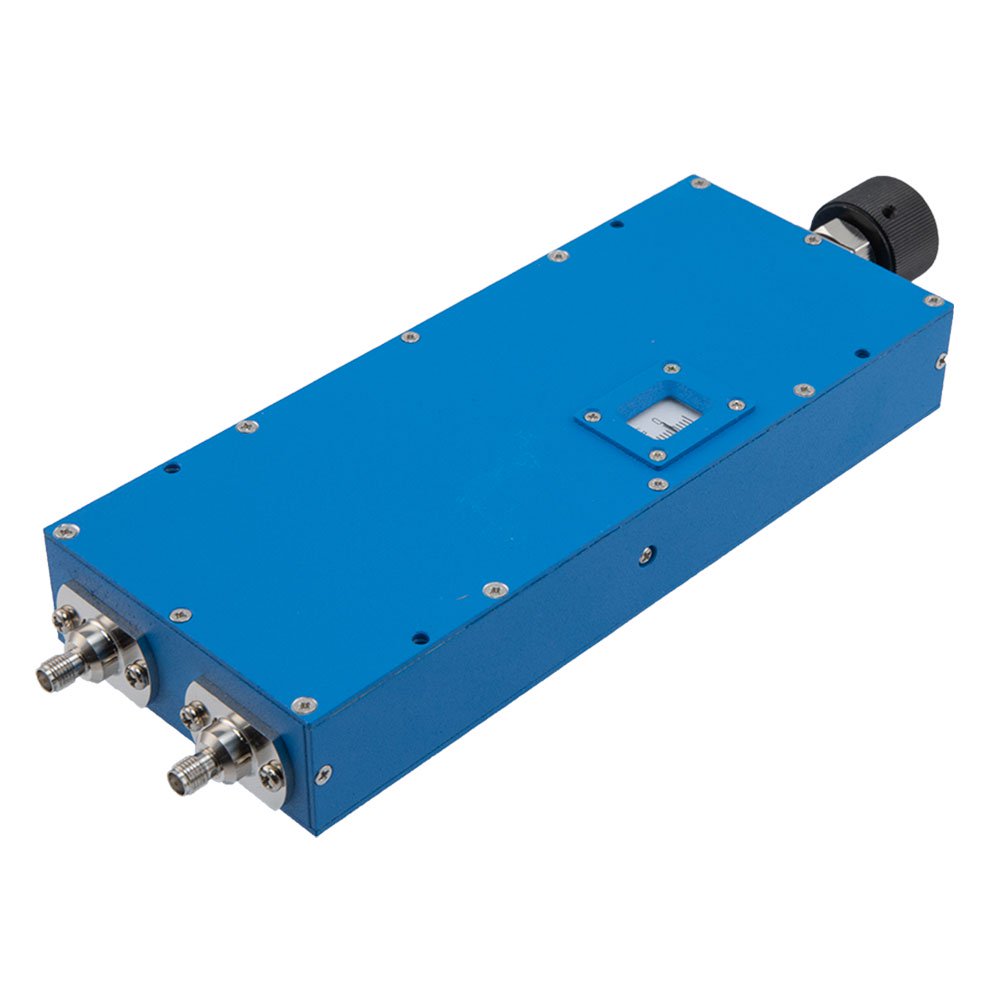

The FM82P5009 is an adjustable phase shifter manufactured by Fairview Microwave, designed for signal conditioning applications. It operates across a frequency range from DC to 8 GHz. The device provides an adjustable phase shift capability of 90 degrees per GHz. It utilizes SMA connectors for input and output interfaces. This component is categorized under signal conditioning products within the wireless and RF integrated circuits subcategory.
Feature Summary
- Provides continuous phase adjustment across the operational bandwidth
- Supports high-frequency operation up to 8 GHz
- Features standard SMA connector interfaces for integration
Applications
- Phased array antenna systems requiring beam steering
- RF test and measurement instrumentation setups
- Wireless communication system calibration
Procurement Notes
Verify the specific datasheet version and connector gender compatibility before procurement. Confirm that the SMA interface matches the system requirements. Check for any environmental ratings or mounting hardware specifications required for the intended application environment. Ensure the supplier provides official documentation for quality assurance.
Selection Notes
Select this component when precise phase control is needed in the DC to 8 GHz range. Consider the physical size and weight constraints as it is a standalone unit. Evaluate the thermal management requirements if operating at high power levels. Compare with fixed phase shifters if variable adjustment is not strictly necessary for the design.
Part Context
This part belongs to Fairview Microwave's signal conditioning portfolio. It complements other RF components like amplifiers and attenuators. The product line focuses on providing reliable interconnect and signal processing solutions for microwave frequencies. It serves as a key element in complex RF chain configurations.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users should consult Fairview Microwave directly for equivalent models or next-generation replacements. Verify electrical performance overlap before considering alternative vendors.
