Product Detailed Parameters
- Description：PHASE SHIFTER TYPE N 2 GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Phase Shifter
- Frequency：0Hz ~ 2GHz
- RF Type：Radar
- Secondary Attributes：120° Phase Shift
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

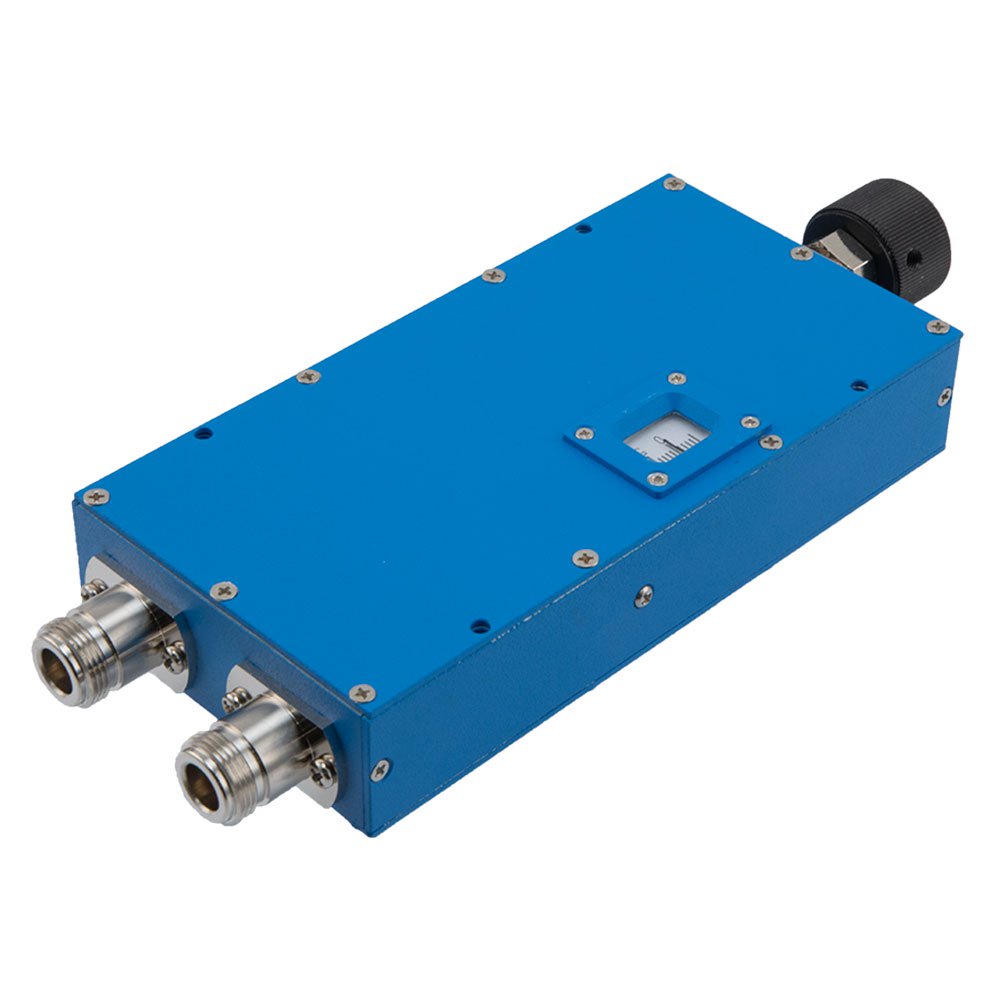

The FM82P5011 is an adjustable phase shifter manufactured by Fairview Microwave, designed for signal conditioning applications. It operates within a frequency range of DC to 2 GHz. The device provides a phase adjustment capability of 60 degrees per GHz, allowing for precise control over signal phase characteristics. It features a precision rotary dial design to facilitate manual adjustment and ensure stable performance across its operational bandwidth.
Feature Summary
- Features a precision rotary dial design for controllable phase adjustment
- Provides an adjustable phase shift rate of 60 degrees per GHz
- Operates effectively from DC up to 2 GHz frequency range
Applications
- Radar systems requiring precise phase control
- Signal conditioning in RF test and measurement equipment
- Wireless communication system calibration
Procurement Notes
Verify the specific datasheet version and mechanical dimensions before integration. Confirm that the N-type connector interface matches your system requirements. Ensure the operating environment remains within specified thermal limits to maintain phase accuracy. Check for any regional distribution restrictions or availability constraints prior to ordering.
Selection Notes
Select this component when a wideband adjustable phase shift is required between DC and 2 GHz. The 60 degrees per GHz adjustment rate suits applications needing fine-tuned phase alignment. Consider the physical module package and N-type connectors for board layout compatibility. Evaluate if the rotary dial mechanism fits the enclosure space and user interface needs.
Part Context
This part belongs to Fairview Microwave's phase shifter product line, categorized under signal conditioning components. It complements other RF modules like amplifiers and mixers by providing essential phase manipulation capabilities. The device supports various wireless and radar technologies requiring dynamic phase control.
Replacement Considerations
The FM82P5015 serves as a related model with similar functionality but operates up to 4 GHz with a 90 degrees per GHz adjustment rate. Verify frequency range and adjustment slope requirements when considering substitutes.
