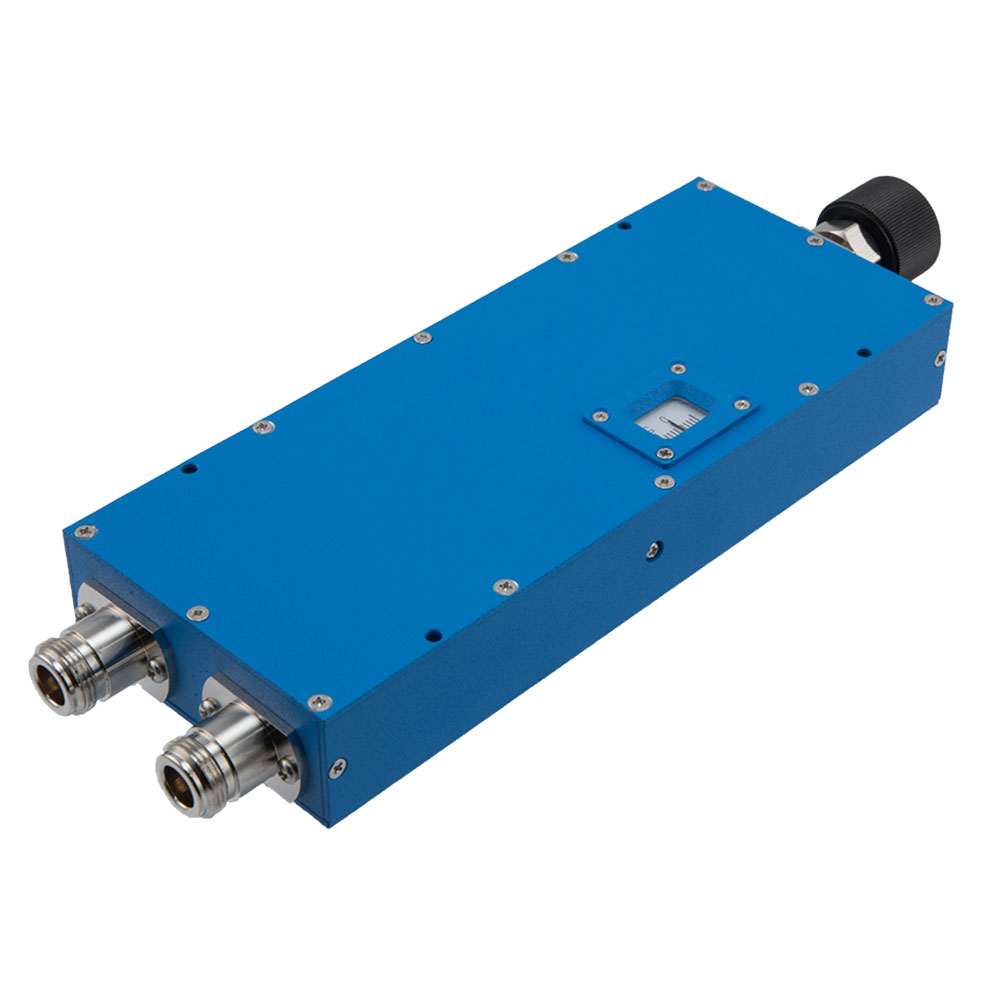

FM82P5014

Overview

The FM82P5014 is an adjustable phase shifter manufactured by Fairview Microwave, designed for signal conditioning applications. It operates within a frequency range of DC to 2 GHz. The device provides a phase adjustment capability of 90 degrees per GHz, allowing for precise control over signal phase. This component is engineered for reliability in radar and RF systems requiring stable phase manipulation across its specified bandwidth.

Feature Summary

• Adjustable phase shift functionality with a rate of 90 degrees per GHz
• Precision rotary dial design for controllable phase adjustment
• Operates from DC up to 2 GHz frequency range

Applications

• Radar systems
• RF signal conditioning
• Phase control circuits

Procurement Notes

Verify the specific datasheet version and connector type before ordering, as Fairview Microwave products often have variant configurations. Confirm that the DC to 2 GHz specification aligns with your system requirements. Ensure compatibility with existing chassis mount or panel interface standards if applicable. Cross-reference the 90 degrees per GHz adjustment rate against your phase resolution needs.

Selection Notes

Select this model when a continuous, adjustable phase shift is required rather than fixed discrete steps. The 90 degrees per GHz characteristic offers fine granularity for tuning. Consider the mechanical interface and mounting style to ensure integration into the target assembly. Verify power handling and impedance matching if used in high-power transmission lines.

Part Context

This component belongs to the Fairview Microwave phase shifter family, categorized under signal conditioning. It serves as a passive or active control element in RF chains, distinct from attenuators or amplifiers. The product line focuses on precision microwave components for test, measurement, and communication infrastructure.

Replacement Considerations

The FM82P5015 is a similar adjustable phase shifter but operates up to 4 GHz. If higher frequency coverage is needed, consider the FM82P5015. For lower frequency requirements, verify if other models in the series offer cost-effective alternatives with identical mechanical footprints.
