FM82P5017

Overview

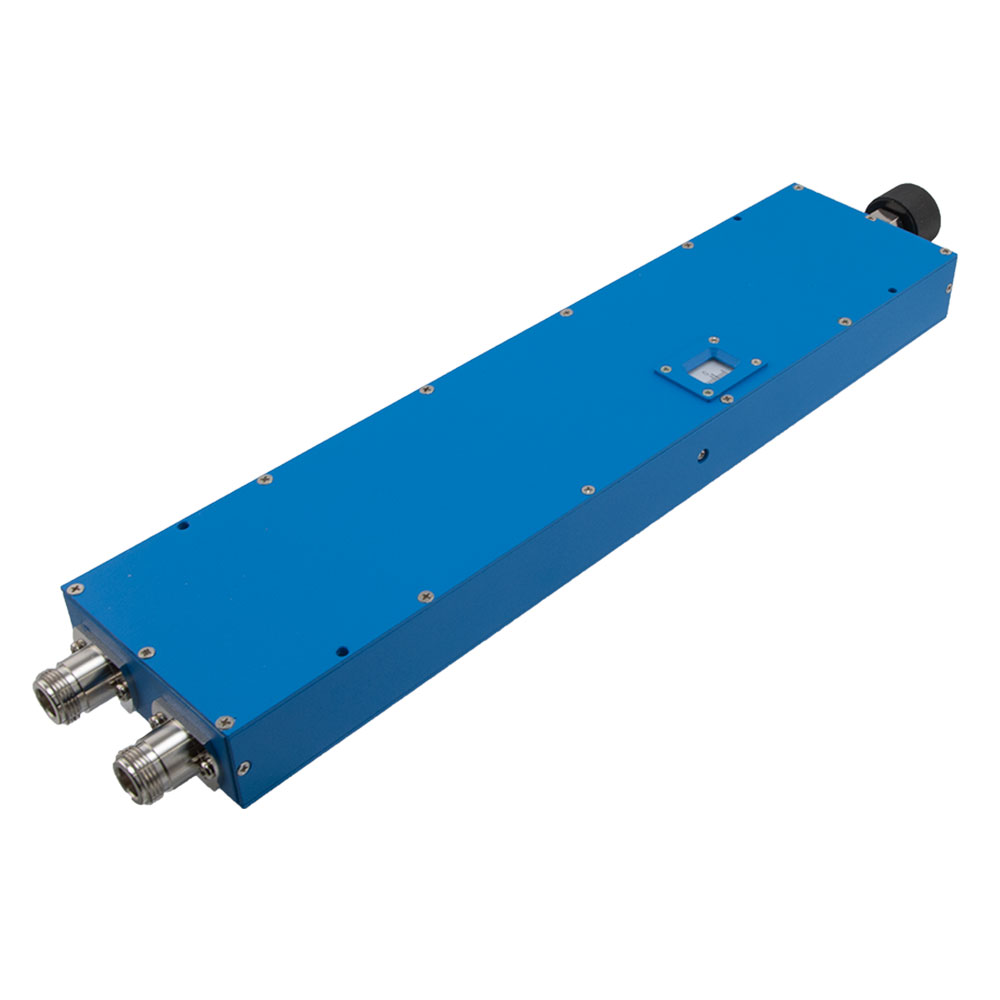

The FM82P5017 is an adjustable phase shifter manufactured by Fairview Microwave, designed for signal conditioning applications. It operates within a frequency range of 0 Hz to 4 GHz. The device features an adjustable phase shift capability of 180 degrees per GHz. It utilizes N-type connectors for interface connections. The unit is packaged in a bag and weighs approximately 1.724 kg. This component serves as a precision signal adjustment tool within the RF spectrum up to 4 GHz.

Feature Summary

• Provides continuous phase adjustment with a rate of 180 degrees per GHz across the operational bandwidth.
• Incorporates a precision rotary dial design to enable controllable and precise phase shifting.
• Equipped with N-type connectors for standard RF interfacing.

Applications

• RF signal conditioning systems
• Phase control in microwave circuits
• Test and measurement equipment requiring variable phase shifts

Procurement Notes

Verify availability status directly with authorized distributors, as supply may be restricted or limited in certain regions. Confirm connector type and frequency specifications match system requirements before ordering. Check for updated datasheets to ensure compliance with current technical standards. Validate packaging details and weight for logistics planning. Ensure compatibility with existing N-type interfaces in the target application environment.

Selection Notes

Select this component when a wideband adjustable phase shift is required from DC to 4 GHz. The 180 degrees per GHz adjustment rate suits applications needing fine-tuned phase control. Consider the N-type connector interface for integration into compatible RF chains. Evaluate the physical dimensions and weight against space constraints. Compare with fixed phase shifters if variable adjustment is not strictly necessary.

Part Context

The FM82P5017 belongs to the signal conditioning category, specifically within phase shifters. It is part of Fairview Microwave's portfolio of RF components designed for precision signal manipulation. The product line focuses on providing reliable performance in microwave frequencies. This model complements other signal processing devices by offering adjustable phase characteristics.

Replacement Considerations

The FM82P5015 is a related model offering 90 degrees per GHz adjustment. Verify if the lower phase shift rate meets application needs. Both share similar frequency ranges and connector types. Ensure mechanical and electrical compatibility when substituting. Consult official documentation for detailed pinout and specification comparisons.
