Product Detailed Parameters
- Description：PHASE SHIFTER SMA 4 GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Phase Shifter
- Frequency：2GHz ~ 4GHz
- RF Type：General Purpose
- Secondary Attributes：360° Phase Shift
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

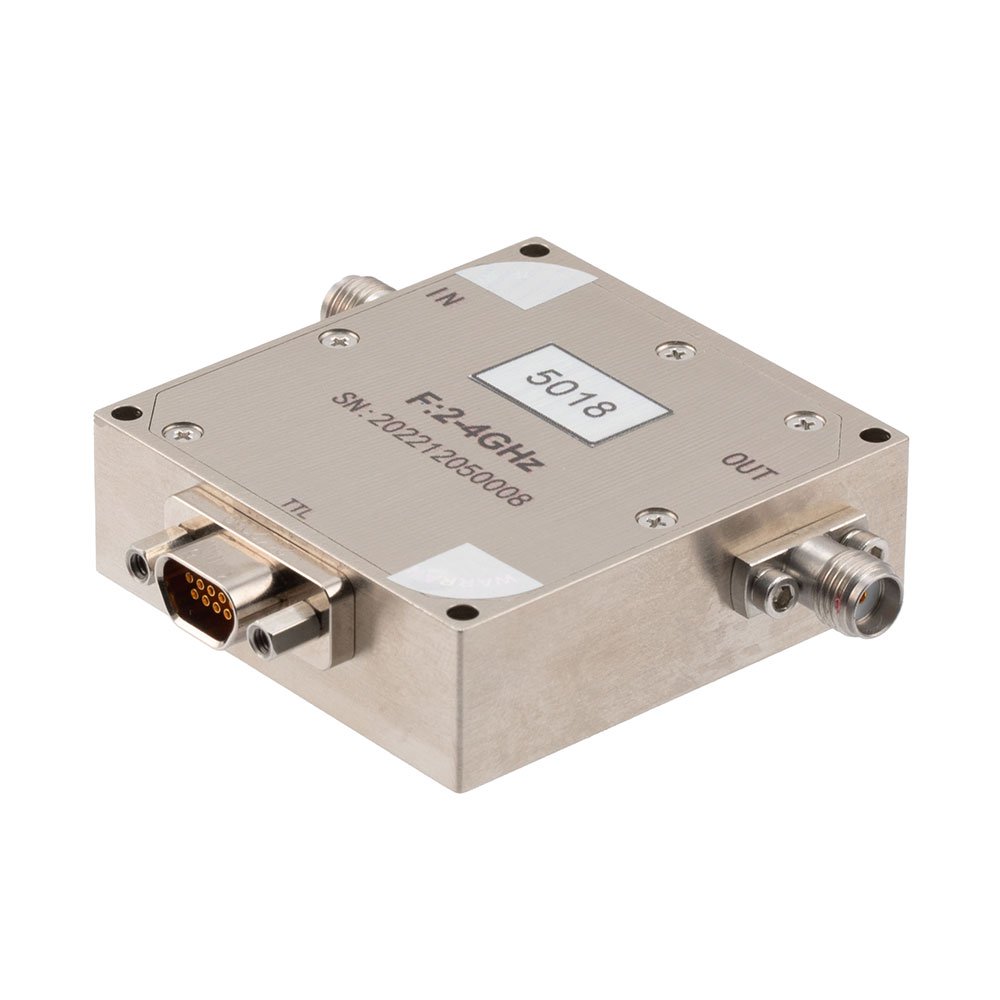

The FM82P5018 is a 6-bit TTL programmable phase shifter manufactured by Fairview Microwave. It operates within a frequency range of 2 GHz to 4 GHz and provides a total phase range of 360 degrees. The device features a control step size of 5.625 degrees, allowing for precise phase adjustment. It supports a maximum input power of +27 dBm and utilizes SMA connectors for interfacing. The unit weighs approximately 30.844 grams and is packaged in a bag.
Feature Summary
- Provides 6-bit digital phase control via TTL logic inputs
- Delivers a full 360-degree continuous phase shift range
- Maintains a fine 5.625-degree resolution for accurate signal alignment
Applications
- Phased array antenna beam steering systems
- RF test and measurement instrumentation
- Signal processing and modulation circuits
Procurement Notes
Verify the specific SMA connector gender and pin configuration against system requirements before integration. Confirm that the TTL voltage levels match the driving logic interface. Ensure the operating environment remains within the specified thermal limits to maintain phase stability and component longevity during deployment.
Selection Notes
Select this component when a wideband 2-4 GHz phase shift capability is required with digital control precision. Consider the +27 dBm power handling limit relative to system signal levels. Evaluate the physical dimensions and weight constraints if integrating into compact RF assemblies or portable equipment designs.
Part Context
This phase shifter belongs to Fairview Microwave's signal conditioning portfolio, designed for high-frequency applications. It complements other RF components such as cable assemblies and amplifiers within the manufacturer's ecosystem, supporting complex microwave system architectures requiring precise signal timing adjustments.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing PCB layouts and control logic when considering alternative phase shifters from other manufacturers.
