FM82P5019

Overview

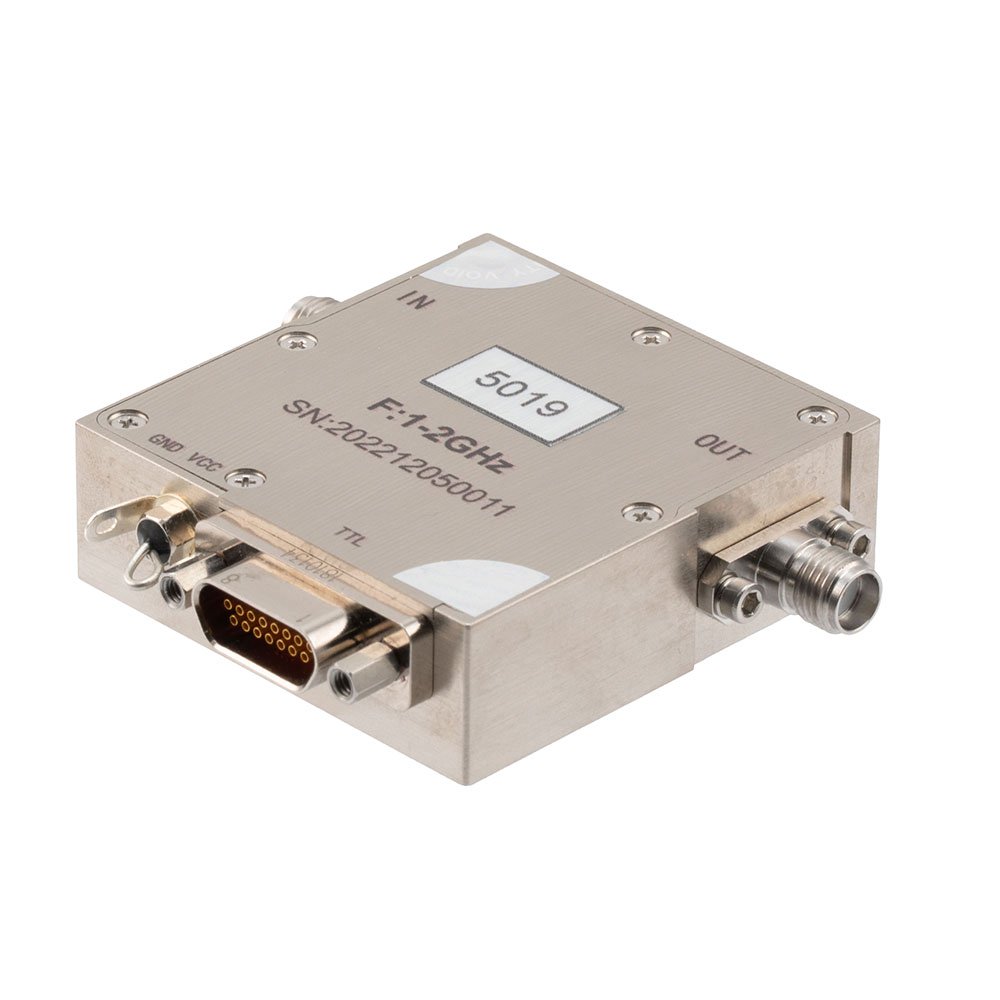

The FM82P5019 is a 6-bit TTL programmable phase shifter manufactured by Fairview Microwave. It operates within a frequency range of 1 GHz to 2 GHz and utilizes SMA connectors for signal interfacing. The device provides precise phase control capabilities suitable for RF applications requiring digital adjustment. It is classified under RF misc ICs and modules, designed for integration into systems needing variable phase shift functionality at microwave frequencies.

Feature Summary

• Supports 6-bit TTL programmable phase shifting
• Operates in the 1 GHz to 2 GHz frequency band
• Features SMA connectors for interface compatibility

Applications

• Laboratory sample processing
• Chromatography systems
• RF test and measurement equipment

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm technical specifications against official datasheets prior to integration. Ensure environmental operating conditions align with system requirements. Check for specific ordering suffixes that may affect performance characteristics. Validate connector types and pin configurations for mechanical fit.

Selection Notes

Select this component when digital phase control is required between 1 GHz and 2 GHz. Consider the 6-bit resolution for precision needs. Evaluate SMA connector compatibility with existing PCB layouts. Assess thermal management requirements for continuous operation. Compare against fixed phase shifters if programmability is not essential.

Part Context

This part belongs to Fairview Microwave's portfolio of RF integrated circuits and modules. It serves as a programmable solution for adjusting signal phase in high-frequency applications. The device complements other passive and active components in RF signal chain designs.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify functional equivalence carefully if considering alternatives from other manufacturers.
