FM86GM2000

Overview

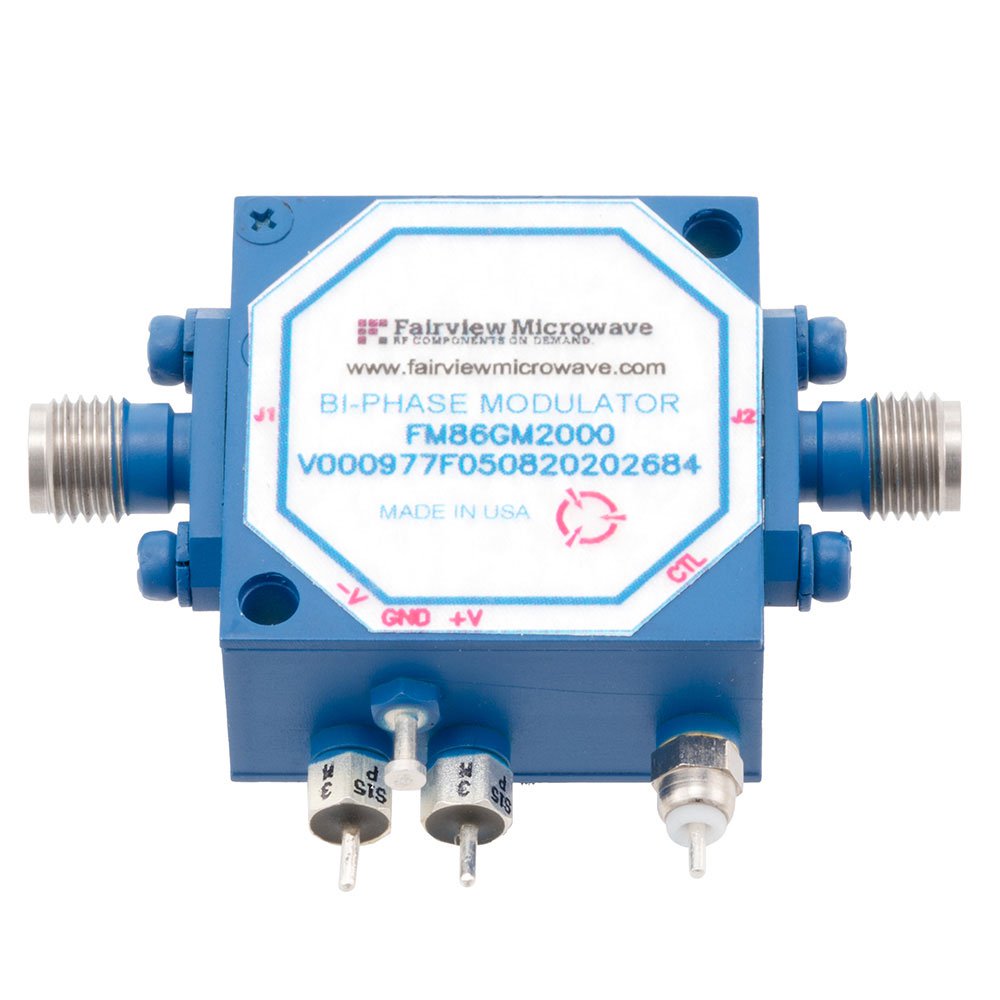

The FM86GM2000 is a bi-phase modulator manufactured by Fairview Microwave, designed for operation within the 500 MHz to 1 GHz frequency range. It utilizes SMA connectors and features TTL control input with a switching speed of 15 nanoseconds. The device provides 0 to 180 degrees phase shift capability and is rated for an operating temperature range from -40°C to +85°C.

Feature Summary

• Provides precise 0 to 180 degrees bi-phase modulation functionality
• Operates within the 500 MHz to 1 GHz frequency spectrum
• Features TTL control interface with 15 nanosecond switching speed

Applications

• RF signal processing systems requiring phase shifting
• Communication equipment utilizing bi-phase modulation techniques
• Test and measurement setups involving RF phase control

Procurement Notes

Verify component authenticity through authorized Fairview Microwave channels. Confirm technical specifications match application requirements, specifically the 500 MHz to 1 GHz range and TTL control compatibility. Ensure environmental ratings meet operational temperature constraints.

Selection Notes

Select this component when bi-phase modulation is required between 500 MHz and 1 GHz. Consider the 15 nanosecond switching speed for timing-sensitive applications. Verify that the SMA connector type and TTL control logic align with system interface standards.

Part Context

This part belongs to Fairview Microwave's RF modules category, specifically focusing on phase modulation solutions. It serves as a specialized component for manipulating RF signal phases in high-frequency electronic systems, distinct from general-purpose amplifiers or passive cable assemblies offered by the manufacturer.

FAQ

What is the switching speed of the FM86GM2000?

The FM86GM2000 has a specified switching speed of 15 nanoseconds.

What control interface does the FM86GM2000 use?

The device utilizes a TTL (Transistor-Transistor Logic) control interface for operation.
