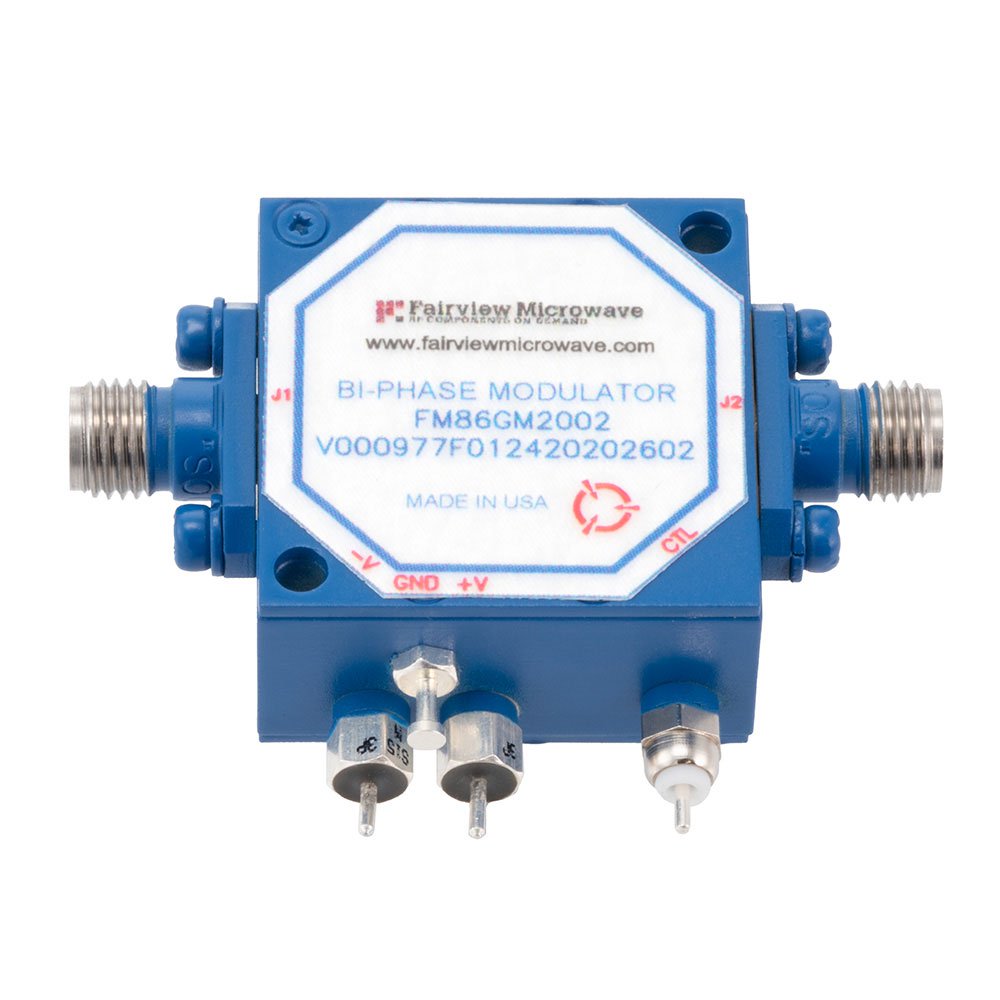

FM86GM2002

$1,187.12

Description：BIPHASE MODULATOR SMA 2GHZ-4GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:06cf11680364 Category: RF Misc ICs and Modules Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：BIPHASE MODULATOR SMA 2GHZ-4GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag
Function：Modulator
Frequency：2GHz ~ 4GHz
RF Type：Radar
Secondary Attributes：SMA Connectors
Mounting Type：Chassis Mount
Package / Case：Module, SMA Connectors
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

FM86GM2002

Overview

The FM86GM2002 is a bi-phase modulator manufactured by Fairview Microwave, designed for operation within the 2 GHz to 4 GHz frequency range. It features TTL control inputs and supports a switching speed of 75 nanoseconds. The device utilizes SMA connectors for signal interfacing and provides 0 or 180-degree phase shift capabilities. This component serves as a general-purpose RF modulator suitable for applications requiring precise phase control in microwave systems.

Feature Summary

Provides 0/180 degree bi-phase modulation
Operates from 2 GHz to 4 GHz
Features TTL logic control interface
Supports 75 nanosecond switching speed

Applications

Phase modulation in radar systems
Signal processing in communication transceivers
Test and measurement equipment requiring phase shifting

Procurement Notes

Verify the specific connector gender and pinout configuration against system requirements before ordering. Confirm that the TTL voltage levels match the control circuitry specifications. Ensure the operating frequency range aligns with the intended application bandwidth. Check for any required accessories or mounting hardware not included in the standard package.

Selection Notes

Select this component when a wideband phase modulator is needed between 2 GHz and 4 GHz. Consider the 75 ns switching speed for timing-sensitive applications. Evaluate the SMA interface compatibility with existing PCB traces or cable assemblies. Compare performance metrics against alternative modulators if higher speeds or different frequency ranges are required.

Part Context

Fairview Microwave produces specialized RF components for high-frequency applications. The FM86GM2002 belongs to their line of active microwave devices, specifically focusing on phase modulation functions. These components are typically used in professional engineering environments rather than consumer electronics.
