FM86GM2007

Overview

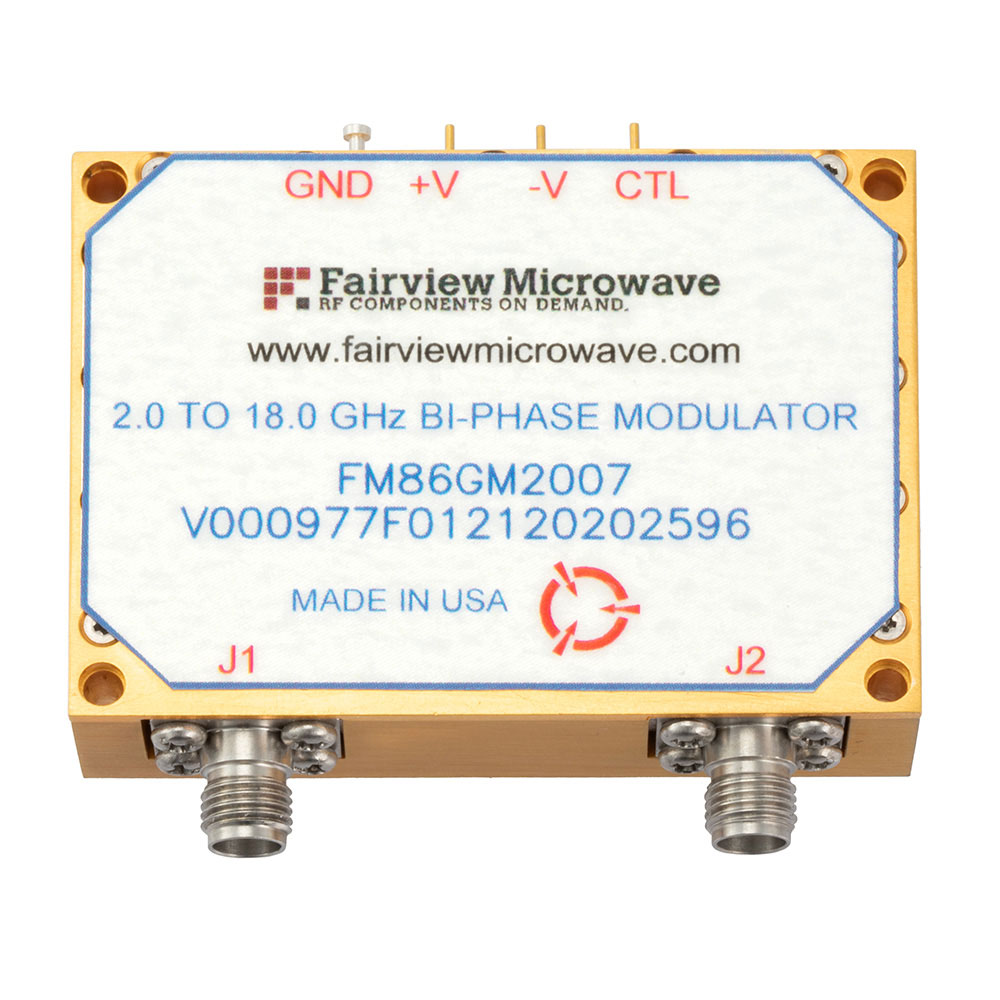

The FM86GM2007 is a bi-phase modulator manufactured by Fairview Microwave, designed for operation within the 2 GHz to 18 GHz frequency range. It provides 0 and 180-degree phase states controlled via TTL signals with a switching speed of 35 nanoseconds. The device utilizes SMA connectors for signal interfacing. This component serves as a specialized RF module for precise phase manipulation in high-frequency applications.

Feature Summary

• Bi-phase modulation capability providing discrete 0 and 180-degree phase shifts
• TTL logic control interface for rapid state switching
• SMA connector configuration for standard RF integration

Applications

• RF signal phase shifting networks
• Quadrature mixer local oscillator paths
• Phase array antenna beam steering systems

Procurement Notes

Verify exact availability through authorized Fairview Microwave distributors or Mouser Electronics. Confirm lead times and regional restrictions directly with suppliers prior to ordering. Ensure technical specifications align with system requirements before finalizing procurement decisions.

Selection Notes

Select this component when discrete 0/180-degree phase control is required between 2 GHz and 18 GHz. Consider the 35 ns switching speed for timing-sensitive applications. Ensure compatibility with TTL control levels and SMA interconnects within the design architecture.

Part Context

This part belongs to Fairview Microwave's specialized RF modulation series, distinct from their general-purpose amplifiers and cables. It addresses specific phase control needs rather than signal gain or transmission line functions.

Replacement Considerations

No public substitute part numbers are documented. Evaluate alternative bi-phase modulators based on matching frequency ranges, TTL control interfaces, and SMA connectivity if replacement is necessary.
