FM86GM2008

Overview

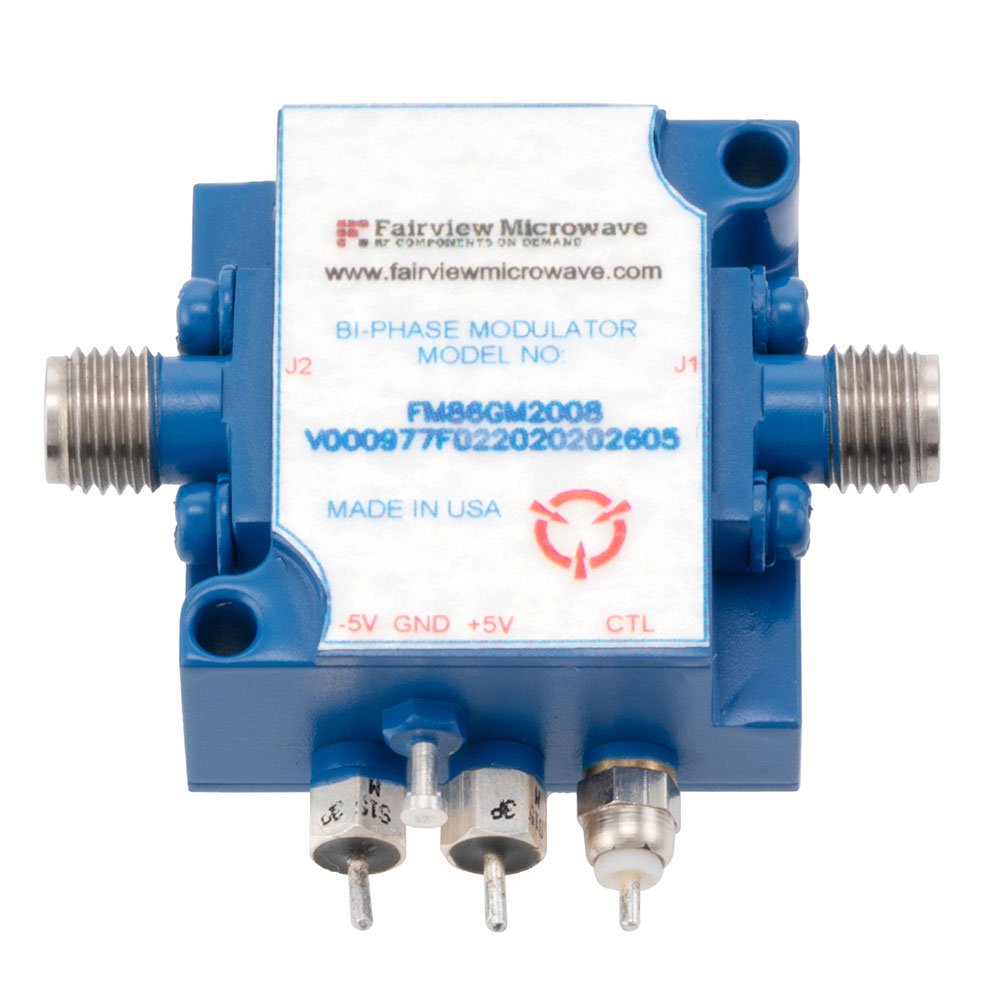

The FM86GM2008 is a bi-phase modulator manufactured by Fairview Microwave, designed for high-frequency signal processing applications. It operates within the frequency range of 26.5 GHz to 40 GHz, supporting Ka-band systems. The component utilizes TTL control signals to achieve precise phase modulation with a switching speed of 100 nanoseconds. It features SMA connectors for input and output interfaces, ensuring compatibility with standard RF test and measurement equipment. This device is engineered for stability and performance in demanding microwave environments.

Feature Summary

• Supports bi-phase modulation functionality across the 26.5 GHz to 40 GHz frequency spectrum
• Utilizes TTL control interface for rapid 100 nanosecond switching speeds
• Incorporates SMA connectors for standardized RF interconnection

Applications

• Ka-band communication systems requiring phase modulation
• Microwave test and measurement instrumentation
• Radar system signal processing components

Procurement Notes

Verify the specific SMA connector gender and pin configuration against your system requirements before procurement. Confirm that the TTL voltage levels match your control logic standards. Ensure the operating environment remains within the specified thermal limits for optimal performance. Check for any required calibration or testing procedures upon receipt to validate initial performance parameters.

Selection Notes

Select this component when a dedicated bi-phase modulator is required for frequencies between 26.5 GHz and 40 GHz. Consider the 100 ns switching speed if temporal resolution is critical for your application. The SMA interface dictates cable selection and adapter needs. Evaluate whether the TTL control requirement aligns with your existing digital control infrastructure to avoid additional level-shifting circuitry.

Part Context

Fairview Microwave specializes in high-performance RF and microwave components, including attenuators, cables, and active devices like modulators. The FM86GM2008 belongs to their portfolio of precision instruments designed for research, defense, and telecommunications sectors. These products emphasize reliability and consistent electrical characteristics across wide frequency bands, supporting complex signal generation and analysis tasks.

FAQ

What type of control signal does the FM86GM2008 require?

The device requires TTL (Transistor-Transistor Logic) control signals to operate the bi-phase modulation function.

What is the maximum switching speed of this modulator?

The FM86GM2008 supports a switching speed of 100 nanoseconds.
