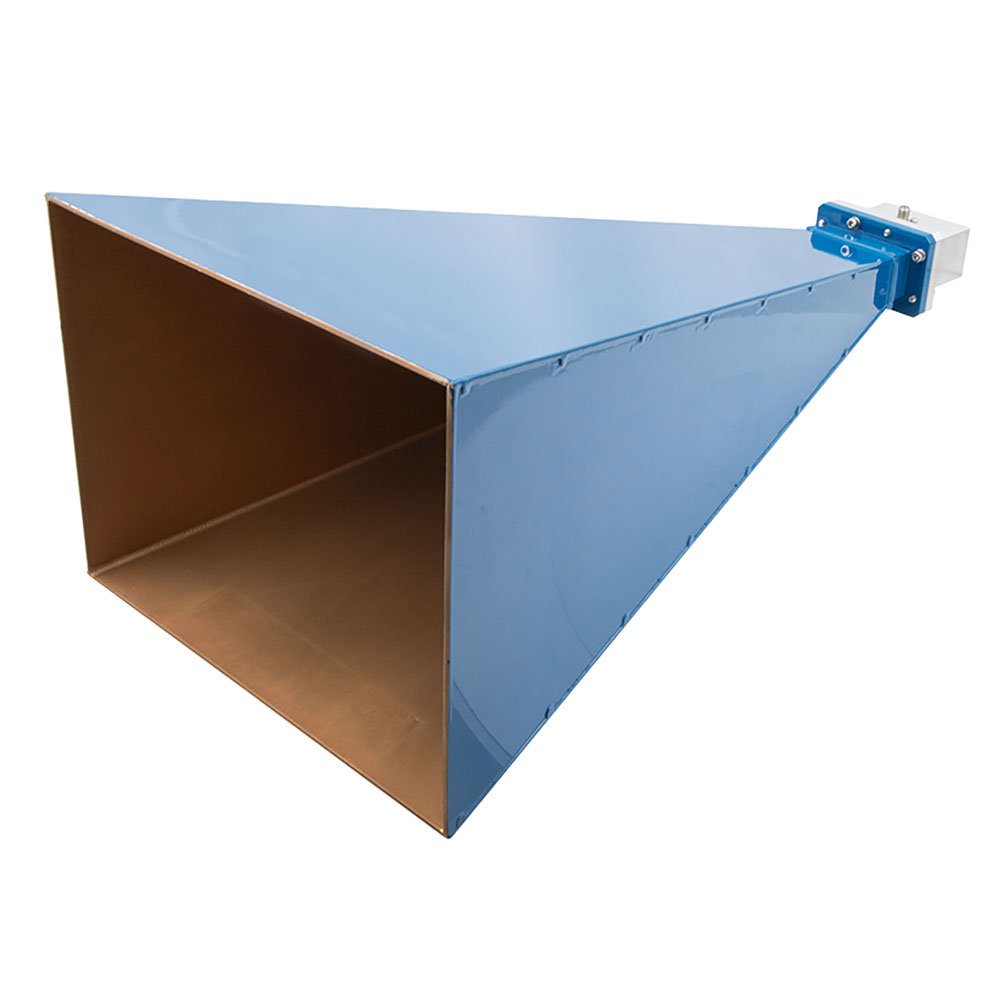

FM9861B/SF-20 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Fairview Microwave. Its product description is WG ANTENNA WG COAX ADAPT WR-187-. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for FM9861B/SF-20
- Description：WG ANTENNA WG COAX ADAPT WR-187-
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- RF Family/Standard：General ISM
- Frequency Group：Wide Band
- Frequency (Center/Band)：4.9GHz
- Frequency Range：3.95GHz ~ 5.85GHz
- Antenna Type：Horn
- Number of Bands：1
- VSWR：1.3
- Return Loss：-
- Gain：20dBi
- Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
- Termination：SMA Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Waveguide Mount
- Height (Max)：6.530" (165.86mm)
- Applications：General Purpose
- Power - Max：-
