FMAB-N6PG-0146

Power Line Filter Modules Overview

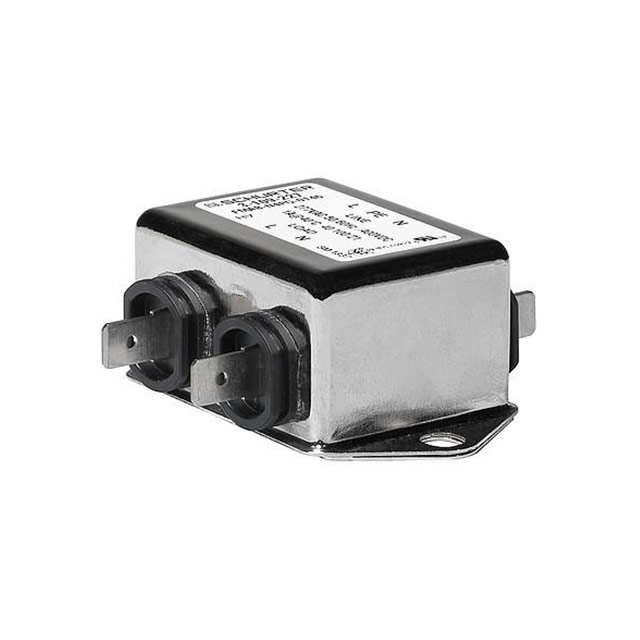

The Schurter FMAB-N6PG-0146 is a single-phase, first-stage AC power line filter designed for Class II protection. It operates at a rated voltage of 277 VAC and supports a current rating of 1 A. The unit features M5 screw terminals for secure mounting and connection. Certified under UL standards, this component provides essential electromagnetic interference suppression for sensitive electronic equipment requiring reliable power line filtering in compliance with safety regulations.

Power Line Filter Modules Feature Summary

• Enhanced asymmetrical attenuation performance in higher frequencies achieved by adding a ground line choke on the earth conductor.
• Simple solution to filtering critical earth conductor currents generated by high-speed switching power supplies and motor drives.
• Ground line choke located between filter input and output with main input earth connection insulated from housing.

Power Line Filter Modules Applications

• High-speed switching power supplies
• Frequency converters
• Motor drives

Power Line Filter Modules Procurement Notes

Verify the specific part number FMAB-N6PG-0146 against official Schurter documentation to confirm ratings and certifications. Ensure compatibility with system voltage and current requirements before integration. Check for updated compliance certificates such as UL listing relevant to your region. Confirm terminal type and mounting specifications match design constraints.

Power Line Filter Modules Selection Notes

Select this model when enhanced high-frequency attenuation is required for Class II applications. The integrated ground line choke addresses specific EMI challenges from modern power conversion technologies. Verify that the 1A current rating and 277VAC voltage rating align with the target circuit parameters. Consider the physical dimensions and M5 terminal configuration for enclosure integration.

Power Line Filter Modules Part Context

This component belongs to the Schurter FMAB NEO series, which focuses on improved electromagnetic interference filtering. The series distinguishes itself through the inclusion of a second choke on the earth line, providing superior performance compared to standard filters. This design specifically targets interference generated by contemporary power electronics.

Power Line Filter Modules Replacement Considerations

Consult official Schurter substitution guides for verified equivalents. Generic replacements may not replicate the unique ground line choke architecture or certified performance characteristics required for Class II medical or industrial applications.
