FMAC-091D-5010

Power Line Filter Modules Overview

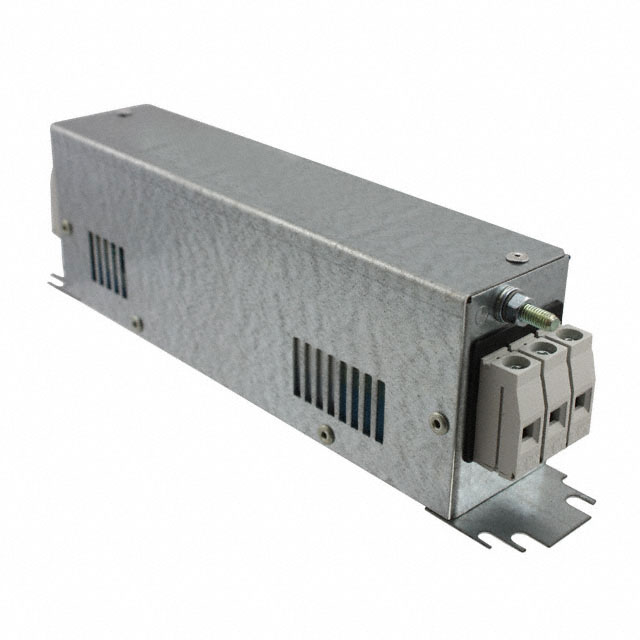

The FMAC-091D-5010 is a three-phase (Delta) EMC/EMI line filter from the Schurter FMAC series. It supports a rated current of 50 A and operates at voltages up to 480 V AC at 50/60 Hz. The unit features an inductance of 650 µH and utilizes chassis mounting with terminal block connections. Designed for industrial environments, it provides single-stage filtering to suppress electromagnetic interference in power drive systems.

Power Line Filter Modules Feature Summary

• Provides single-stage EMI suppression for three-phase Delta configurations
• Engineered for high-current industrial power applications
• Utilizes robust chassis mounting with secure terminal block interfaces

Power Line Filter Modules Applications

• Industrial inverters
• Power drive systems
• Electromagnetic compatibility filtering in heavy machinery

Power Line Filter Modules Procurement Notes

Verify that the application requires a three-phase Delta configuration, as this model is not compatible with Wye setups. Confirm the terminal block interface matches existing wiring infrastructure. Ensure the chassis mounting dimensions fit the designated enclosure space. Validate that the 50 A current rating aligns with the system's maximum load requirements without exceeding thermal limits.

Power Line Filter Modules Selection Notes

Select this component when a single-stage solution is sufficient for noise reduction in Delta-connected systems. Compare against higher-stage filters if attenuation requirements exceed standard specifications. Consider the physical footprint and terminal type during mechanical integration planning. Ensure the operating voltage range covers all potential transient conditions in the specific industrial environment.

Power Line Filter Modules Part Context

This component belongs to the FMAC series of power line filter modules manufactured by Schurter Inc. The series offers various configurations for different phase arrangements and current ratings. This specific model addresses the needs of Delta-connected industrial equipment requiring reliable EMI suppression within compact form factors.

Power Line Filter Modules Replacement Considerations

Cross-reference with other FMAC series models for alternative current or voltage ratings. Verify compatibility with existing mounting hardware before substituting. Ensure any replacement maintains the three-phase Delta topology and terminal block connection style.
