FMAC-0937-8012I

Power Line Filter Modules Overview

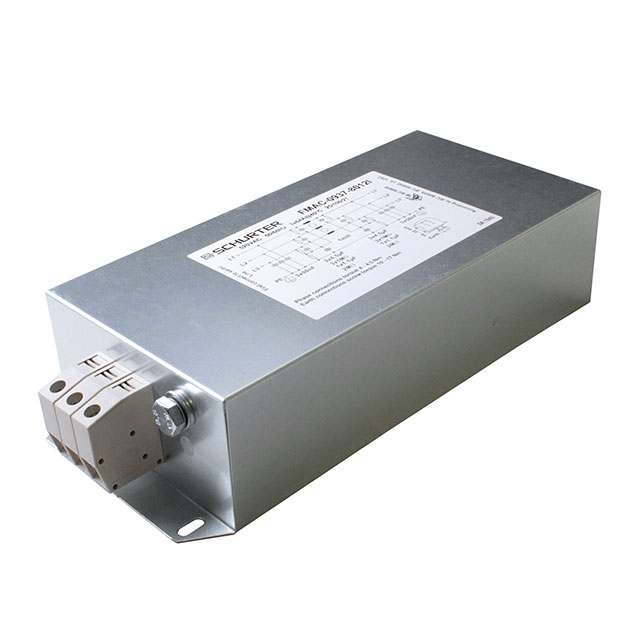

The FMAC-0937-8012I is a three-phase single-stage EMC/EMI line filter manufactured by Schurter Inc. It supports a rated current of 80 A and operates at voltages up to 480 V AC or 520 V AC with a frequency of 50/60 Hz. The unit utilizes a terminal block connection method and is designed for chassis mounting. As part of the FMAC series, it provides electromagnetic interference suppression for industrial power applications.

Power Line Filter Modules Feature Summary

• Single-stage filtering architecture for efficient noise attenuation
• Terminal block interface for secure electrical connections
• Chassis mount configuration for stable mechanical integration

Power Line Filter Modules Applications

• Industrial machinery power conditioning
• Three-phase motor drive systems
• EMC compliance in heavy equipment

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating (480V vs 520V) against the application requirements before procurement. Confirm that the terminal block termination style matches the existing wiring infrastructure. Ensure the chassis mounting dimensions are compatible with the installation panel. Cross-reference the datasheet for thermal derating curves if operating near maximum current limits.

Power Line Filter Modules Selection Notes

Select this component when a single-stage solution is sufficient for the required attenuation levels. Compare the 80 A current rating against peak load demands to ensure adequate headroom. Evaluate the physical footprint constraints relative to other FMAC series variants. Consider the terminal block style versus screw or cable lug options based on maintenance accessibility needs.

Power Line Filter Modules Part Context

This model belongs to the FMAC series of power line filters from Schurter. The series offers various current ratings and configurations for three-phase applications. The FMAC-0937-8012I specifically addresses high-current requirements within the standard single-stage product line.

Power Line Filter Modules Replacement Considerations

Check for direct cross-references within the FMAC series for different current ratings. Verify compatibility with alternative single-stage three-phase filters from other manufacturers if supply chain issues arise.
