FMAC-0953-6412I

Power Line Filter Modules Overview

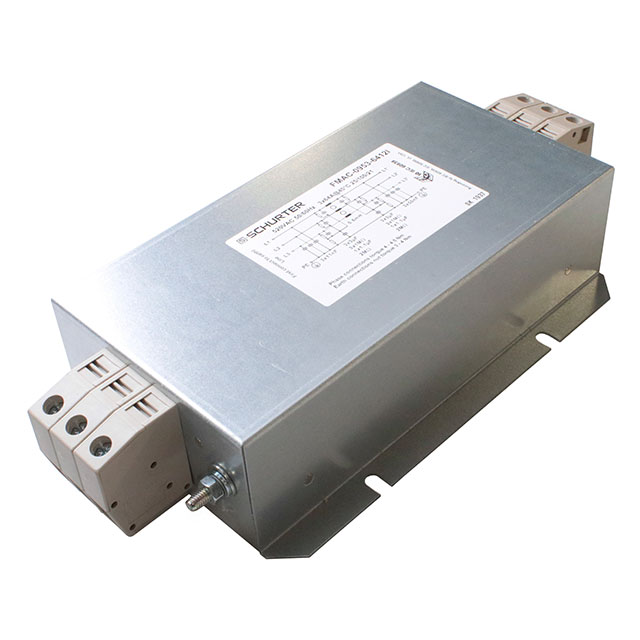

The Schurter FMAC-0953-6412I is a three-phase single-stage EMC/EMI line filter designed for industrial power applications. It supports a current rating of 64 A and operates at voltage ratings of 480 VAC or 520 VAC with frequencies of 50 Hz or 60 Hz. The unit utilizes terminal block connections and chassis mounting. It provides high symmetrical and asymmetrical attenuation across the frequency range from 10 kHz to 300 MHz, ensuring effective electromagnetic interference suppression in compliance with IEC standards.

Power Line Filter Modules Feature Summary

• Provides high symmetrical and asymmetrical attenuation within the 10 kHz to 300 MHz frequency range
• Supports operation at elevated voltage ratings up to 520 VAC
• Designed as a single-stage filter for efficient EMI suppression

Power Line Filter Modules Applications

• Industrial machinery requiring three-phase power filtering
• Equipment sensitive to electromagnetic interference in the 10 kHz to 300 MHz range
• Power systems operating at 480 VAC or 520 VAC

Power Line Filter Modules Procurement Notes

Verify that the specific application requires a 64 A rated filter compatible with 480 VAC or 520 VAC systems. Confirm that chassis mounting and terminal block connections align with the installation environment. Ensure compatibility with IEC standards relevant to the target market. Cross-reference technical specifications against official Schurter documentation to confirm performance requirements are met before procurement.

Power Line Filter Modules Selection Notes

Select this component when a three-phase filter capable of handling 64 A at 480 VAC or 520 VAC is required. Consider the FMAC-0953-6412I for applications needing high attenuation between 10 kHz and 300 MHz. Evaluate chassis mounting constraints and terminal block interface needs. Compare against other FMAC series models if different current ratings or mounting styles are necessary for the specific system design.

Power Line Filter Modules Part Context

This component belongs to the Schurter FMAC series of power line filters. These modules are engineered for robust electromagnetic compatibility in demanding industrial environments. The series offers various current ratings and mounting options to suit diverse power distribution needs while maintaining strict adherence to international safety and emission standards.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Verify compatibility with existing system parameters before considering alternative components.
