FMAC-0956-H450

Power Line Filter Modules Overview

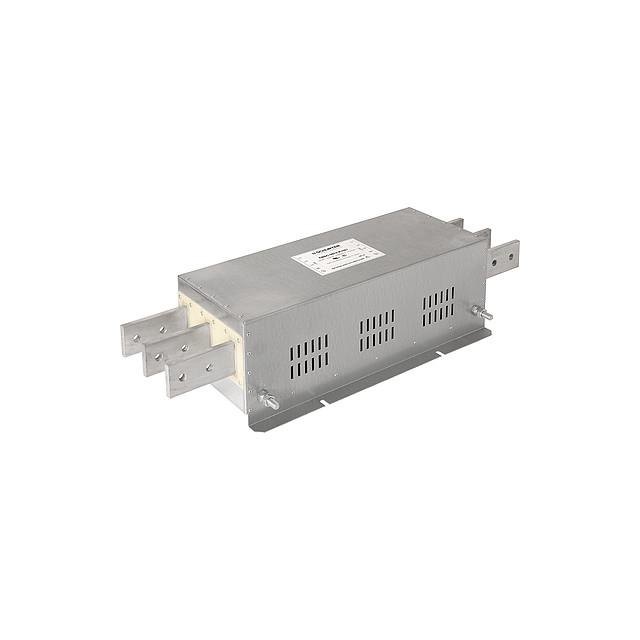

The FMAC-0956-H450 is a three-phase power line filter module from the Schurter FMAC series, designed for chassis mounting. It features a terminal block termination style and supports a rated current of 340 A at voltages of 480 VAC and 520 VAC. The unit incorporates an inductance of 200µH and functions as a single-stage EMC/EMI input filter. This component is engineered for industrial applications requiring robust noise suppression in high-current three-phase systems.

Power Line Filter Modules Feature Summary

• Three-phase single-stage EMC/EMI filtering capability
• Chassis mount construction with terminal block termination
• High current handling capacity for industrial power lines

Power Line Filter Modules Applications

• Industrial power distribution systems
• Three-phase motor drive installations
• Heavy machinery power supply units

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix against official Schurter documentation to ensure correct voltage and current ratings. Confirm that the terminal block configuration matches your system's wiring requirements. Check for active status and lead times directly with authorized distributors, as availability may vary. Ensure environmental conditions align with the module's operational specifications.

Power Line Filter Modules Selection Notes

Select this model when a single-stage solution is sufficient for EMI reduction in three-phase circuits. The 340 A rating suits high-power industrial loads. Consider the chassis mount form factor for panel integration. Verify compatibility with 480VAC and 520VAC systems. Evaluate space constraints relative to the physical dimensions of the FMAC series modules.

Power Line Filter Modules Part Context

The FMAC series comprises power line filters designed for demanding industrial environments. These modules provide effective noise attenuation for three-phase networks. The FMAC-0956-H450 represents a specific variant within this lineup, characterized by its high current capacity and standardized mounting interface. It serves as a critical component for maintaining power quality in sensitive industrial equipment.

Power Line Filter Modules Replacement Considerations

Cross-reference with FMAC-0956-H350 or FMAC-0956-H410 if current ratings differ. Verify electrical parameters match before substitution. Consult Schurter datasheets for dimensional and terminal compatibility.
