FMAC-3RYB-0310

Power Line Filter Modules Overview

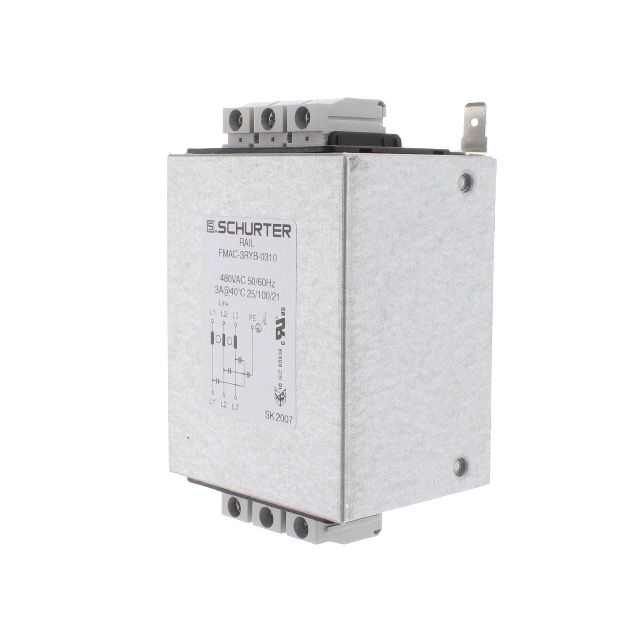

The Schurter FMAC-3RYB-0310 is a three-phase RFI filter rated for 3 A and 480 V AC. It operates at 50 Hz or 60 Hz and features screw terminals with DIN rail mounting. Key electrical parameters include 100 nF capacitance, 3 mH inductance, 40 mΩ resistance, and 0.02 mA leakage current. Power loss is 1.1 W. Dimensions are 102 mm length, 48 mm height, and 61 mm depth. Operating temperature ranges from -25°C to 100°C.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase power lines
• Designed for secure DIN rail installation within control cabinets
• Utilizes screw terminal connections for reliable electrical contact

Power Line Filter Modules Applications

• Industrial machinery noise reduction
• Three-phase power distribution systems
• Control cabinet EMC compliance

Power Line Filter Modules Procurement Notes

Verify the specific part number FMAC-3RYB-0310 against technical requirements before procurement. Confirm that the 3 A current rating and 480 V AC voltage specifications match the target application circuit. Ensure the DIN rail mounting style and screw terminal type are compatible with existing infrastructure. Check for any required certifications relevant to the deployment region.

Power Line Filter Modules Selection Notes

Select this component when a compact three-phase filter is needed for low-current applications up to 3 A. The DIN rail form factor suits space-constrained enclosures. Verify that the 0.02 mA leakage current meets safety standards for sensitive equipment. Compare inductance values against other models if higher attenuation is required.

Power Line Filter Modules Part Context

This unit belongs to the FMAC RAIL series by Schurter, designed for industrial environments. It complements single-phase variants and higher-current three-phase models within the same product family. The series emphasizes modular integration into standard electrical panels.

Power Line Filter Modules Replacement Considerations

FMAC-3RYB-2010 offers similar mounting but handles 20 A. For lower current needs, verify availability of other FMAC RAIL variants. Cross-reference datasheets for exact dimensional and electrical compatibility before substitution.
