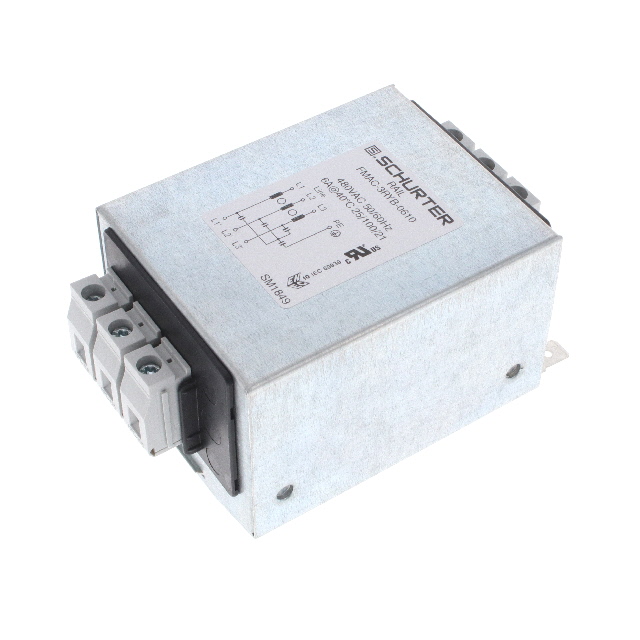

FMAC-3RYB-0610

$46.33

Description：LINE FILTER 480VAC 6A DIN RAIL
Series：FMAC RAIL
Mfr：SCHURTER Inc.
Package：Bulk

SKU:498c00ea188b Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FMAC-3RYB-0610 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is LINE FILTER 480VAC 6A DIN RAIL. Review the specifications below when checking this part for your BOM.

Power Line Filter Modules specifications for FMAC-3RYB-0610

Description：LINE FILTER 480VAC 6A DIN RAIL
Series：FMAC RAIL
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：Three Phase (Delta)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：480V
Current：6:00 AM
Frequency - Operating：-
Applications：General Purpose
Approval Agency：cURus, ENEC, VDE
Operating Temperature：-25°C ~ 100°C
Mounting Type：DIN Rail
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Power Line Filter Modules datasheet and documents for FMAC-3RYB-0610

FMAC-3RYB-0610

Power Line Filter Modules Overview

The Schurter FMAC-3RYB-0610 is a three-phase RFI filter designed for DIN rail mounting with screw terminals. It supports a maximum current of 6 A and operates at 480 V AC, 50/60 Hz. Key electrical parameters include 100 nF capacitance, 220 μH inductance, and 2 mA leakage current. The unit measures 102 x 61 x 48 mm, has a resistance of 4.1 mΩ, and dissipates 4.9 W power loss. Operating temperature ranges from -25°C to 100°C.

Power Line Filter Modules Feature Summary

Provides electromagnetic interference suppression for three-phase power lines
Enables secure DIN rail installation using standard mounting techniques
Facilitates reliable electrical connections via screw terminal interfaces

Power Line Filter Modules Applications

Industrial machinery noise reduction
Three-phase power distribution systems
Electrical cabinet EMC compliance

Power Line Filter Modules Procurement Notes

Verify the specific part number FMAC-3RYB-0610 against official Schurter documentation to confirm compatibility with your system requirements. Ensure that the voltage, current, and mounting specifications match your design constraints before procurement. Cross-reference datasheets for accurate technical details.

Power Line Filter Modules Selection Notes

Select this component when a three-phase RFI filter with DIN rail mounting is required for 480V AC applications. Consider the 6A current rating and physical dimensions for enclosure space. Verify thermal management needs due to specified power dissipation and operating temperature range.

Power Line Filter Modules Part Context

This component belongs to the Schurter FMAC RAIL series, which specializes in three-phase RFI filters for industrial environments. The series offers various current ratings and mounting options, providing standardized solutions for electromagnetic compatibility in power supply circuits.

Power Line Filter Modules Replacement Considerations

Consult official Schurter documentation for verified substitute part numbers within the FMAC RAIL series or other compatible product lines. Ensure any replacement matches the electrical and mechanical specifications of the original component.
