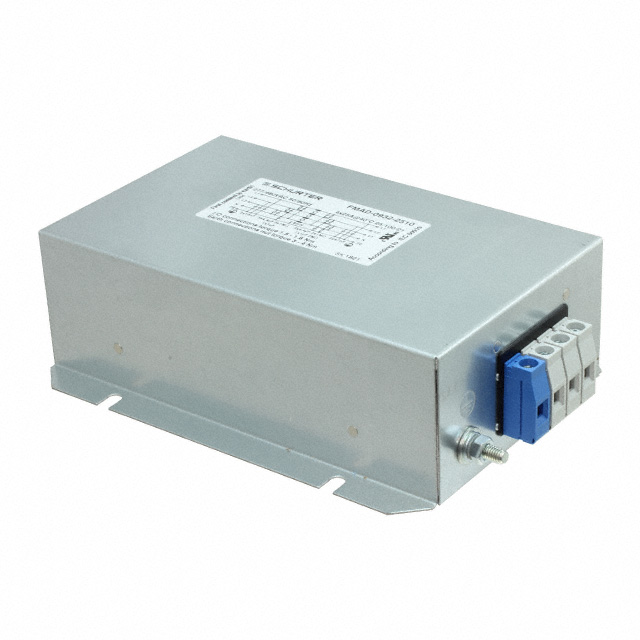

FMAD-0932-2510

Power Line Filter Modules Overview

The FMAD-0932-2510 is a single-stage, three-phase RFI power line filter from the Schurter FMAD series. It supports 277V and 480V AC systems at 50/60Hz with a rated current of 25A. Designed for chassis mounting via screw terminals, it features low leakage current (0 to 15 mA) and complies with UL and IEC standards. The unit provides effective electromagnetic interference suppression for industrial power distribution networks.

Power Line Filter Modules Feature Summary

• Single-stage filtering architecture for three-phase systems including neutral conductors
• Chassis mount construction with screw terminal connections
• Low leakage current design suitable for sensitive equipment protection

Power Line Filter Modules Applications

• Industrial power distribution panels
• Three-phase motor drive input stages
• Commercial building electrical infrastructure

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating configuration against the application requirements, as the model supports both 277V and 480V AC. Confirm that the chassis mounting dimensions and screw terminal specifications match the enclosure design. Ensure compliance with local safety regulations such as UL or IEC standards relevant to the installation region before finalizing procurement.

Power Line Filter Modules Selection Notes

Select this component when a single-stage solution is sufficient for EMI reduction in three-phase circuits. Consider the 25A current rating and chassis mounting style for integration into standard industrial enclosures. Evaluate the low leakage current characteristic if personnel safety or sensitive control electronics are primary concerns in the system design.

Power Line Filter Modules Part Context

This component belongs to the FMAD series of power line filters manufactured by Schurter Inc. The series is designed for robust performance in demanding industrial environments. The FMAD-0932-2510 specifically addresses noise suppression needs in three-phase power lines, offering a compact alternative to multi-stage solutions while maintaining high current carrying capacity.

Power Line Filter Modules Replacement Considerations

FMAC-0932-2512I is a comparable three-phase filter from the same manufacturer. Verify compatibility regarding current ratings, mounting styles, and electrical specifications before substitution.
