FMAD-0955-H210

Power Line Filter Modules Overview

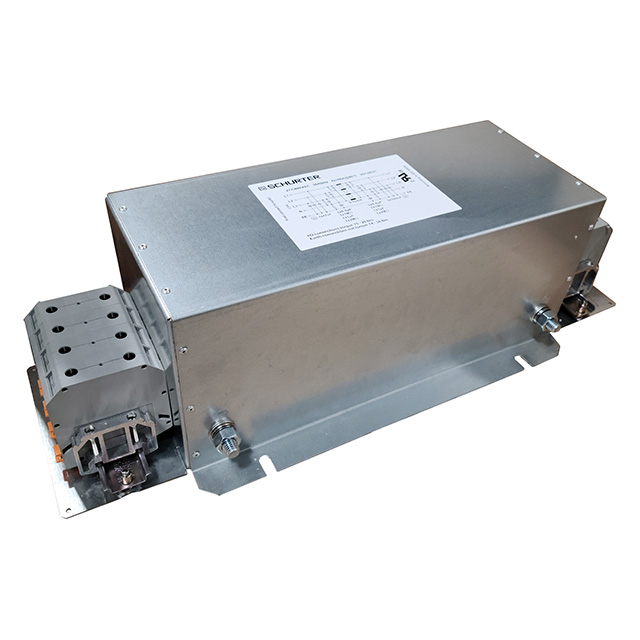

The FMAD-0955-H210 is a single-stage EMC/EMI line filter module designed for three-phase Wye systems with a neutral conductor. It supports rated voltages of 277VAC and 480VAC at 50/60Hz frequencies, handling a continuous current of 180A. The unit utilizes terminal block connections for power line integration. This component serves as an electromagnetic interference suppression solution for industrial and energy sector applications requiring robust filtering in harsh environments.

Power Line Filter Modules Feature Summary

• Single-stage EMI/EMC filtering configuration for three-phase Wye systems
• Terminal block connection interface for secure power line integration
• Designed for operation in harsh industrial and energy sector environments

Power Line Filter Modules Applications

• Industrial machinery power supply conditioning
• Energy sector equipment noise suppression
• Harsh environment electrical system protection

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating (277VAC or 480VAC) and phase configuration (Wye) required for your application against the datasheet specifications. Confirm that the 180A current capacity meets the load requirements. Ensure the terminal block connection type matches the existing wiring infrastructure to guarantee proper installation and electrical safety.

Power Line Filter Modules Selection Notes

Select this model when a single-stage filter is sufficient for the required attenuation levels in a three-phase Wye system. Consider the 180A current rating and 277V/480VAC voltage compatibility. Evaluate if the terminal block interface aligns with the panel design constraints and if the housing material suits the environmental conditions.

Power Line Filter Modules Part Context

This component belongs to the SCHURTER FMAD series of power line filter modules. These modules are engineered for demanding applications in industrial, medical, and energy sectors. The series emphasizes reliable electromagnetic interference suppression and durability in challenging operational settings, providing integrated filtering solutions for power input systems.

Power Line Filter Modules Replacement Considerations

The FMAC-0955-H210 is a related variant within the same product family. Verify if the specific electrical characteristics and mounting requirements of the alternative part match the original design specifications before substitution.
