FMAD-MRYB-0310

Power Line Filter Modules Overview

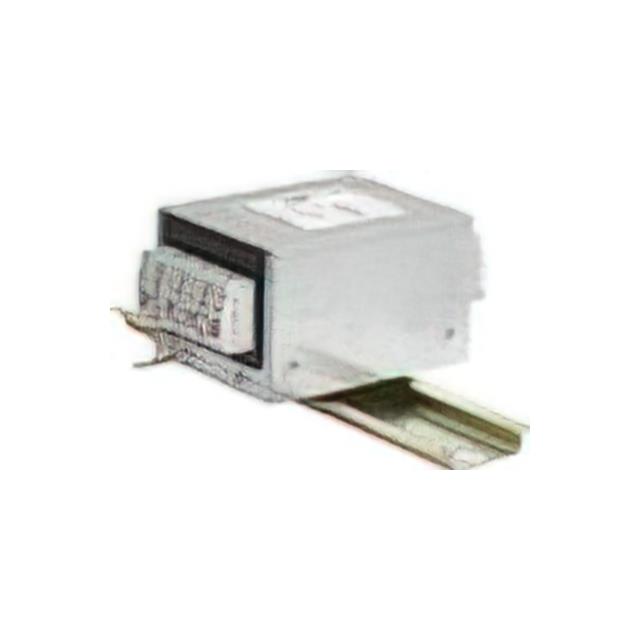

The FMAD-MRYB-0310 is a three-phase (Wye) EMC/EMI line filter module manufactured by Schurter Inc. It supports a rated current of 3 A and operates at voltages up to 480 V AC within a frequency range of 50 Hz to 60 Hz. The device utilizes single-stage filtering technology with terminal block connections for secure installation. Designed for industrial environments, it functions reliably across an operating temperature range of -25°C to +100°C.

Power Line Filter Modules Feature Summary

• Provides effective electromagnetic interference suppression for three-phase power lines
• Features robust terminal block connection method for reliable electrical contact
• Engineered for stable operation in demanding industrial thermal conditions

Power Line Filter Modules Applications

• Industrial machinery power conditioning
• Three-phase motor drive systems
• Factory automation control panels

Power Line Filter Modules Procurement Notes

Verify the specific part number FMAD-MRYB-0310 against official Schurter documentation to confirm technical specifications. Ensure compatibility with system voltage and current requirements before integration. Cross-reference datasheets for precise dimensional and mounting details to guarantee proper physical fit within the intended enclosure or panel layout.

Power Line Filter Modules Selection Notes

Select this component when a compact three-phase EMI filter is required for low-current applications up to 3 A. The Wye configuration suits balanced three-phase systems. Verify that the terminal block interface aligns with existing wiring harnesses and that the thermal rating meets the operational environment constraints without requiring additional cooling measures.

Power Line Filter Modules Part Context

This model belongs to the FMAD series of power line filter modules from Schurter. These modules are designed for integration into larger power distribution units. The specific suffix indicates the current rating and connection type within the broader product family, distinguishing it from higher-capacity or differently terminated variants.

Power Line Filter Modules Replacement Considerations

Consult official Schurter substitution guides for verified equivalents. Do not assume cross-compatibility with other manufacturers' filters due to differing impedance and leakage current characteristics.
