Product Detailed Parameters
- Description：LOWNOISEAMP 1000MHZ-7GHZ SMA
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency：1GHz ~ 7GHz
- P1dB：22dBm
- Gain：42dB
- Noise Figure：1.7dB
- RF Type：General Purpose
- Voltage - Supply：28V
- Current - Supply：200mA
- Test Frequency：2GHz ~ 7GHz
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

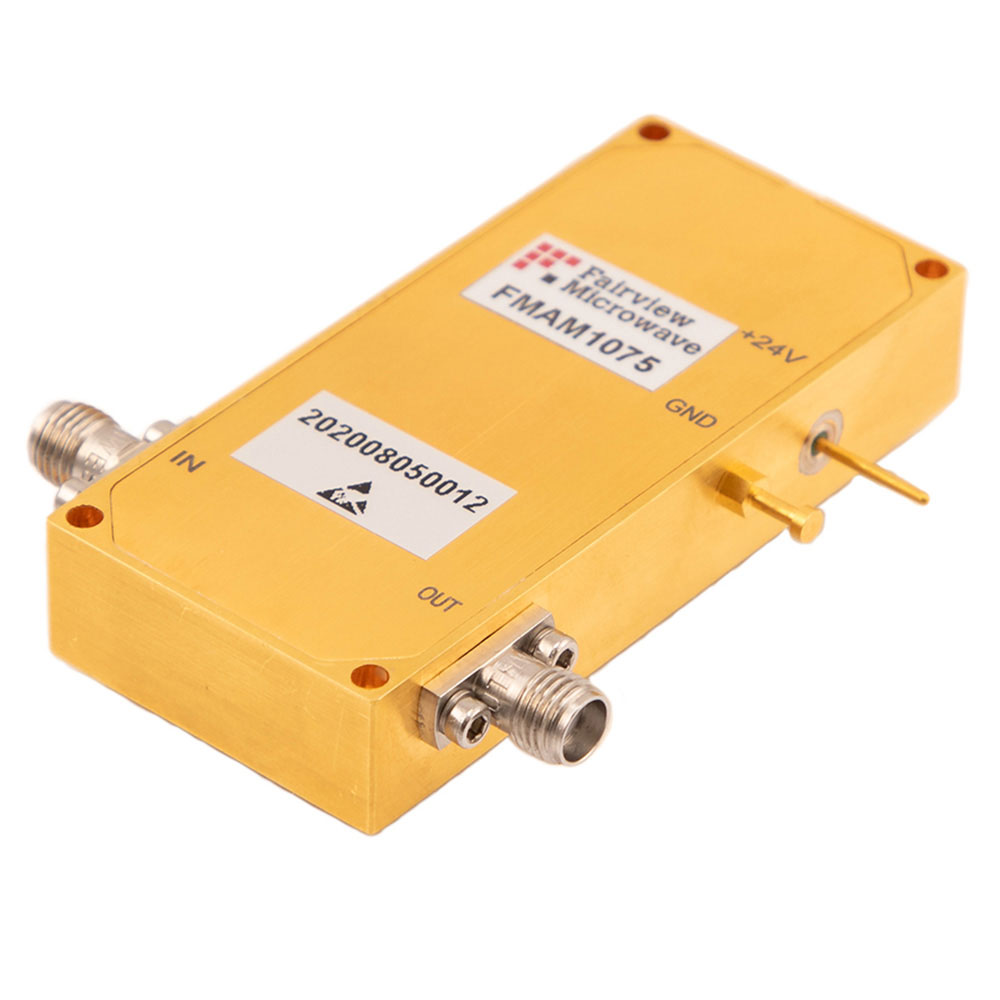

The FMAM1075 is a low noise amplifier manufactured by Fairview Microwave, utilizing Gallium Nitride (GaN) technology for robust performance. It operates within a frequency range of 1 GHz to 7 GHz and provides a gain of 42 dB. The device features an input protection mechanism to safeguard against potential damage. Key electrical specifications include a noise figure of 1.5 dB and a saturated output power (Psat) of 25 dBm. The component is equipped with SMA connectors for interfacing.
Feature Summary
- Utilizes Gallium Nitride (GaN) technology for high-performance amplification
- Includes built-in input protection mechanisms
- Designed as a low noise amplifier with high gain characteristics
Applications
- RF signal chain integration
- Low noise amplification in communication systems
- Test and measurement equipment front-ends
Procurement Notes
Verify the specific datasheet version provided by Fairview Microwave or authorized distributors before finalizing design integration. Confirm that the SMA connector interface aligns with system requirements. Check current supply status as availability may be restricted. Ensure thermal management solutions are adequate for the 25 dBm output power level during operation.
Selection Notes
Select this component when a wide bandwidth from 1 GHz to 7 GHz is required alongside high gain. The GaN construction offers durability suitable for demanding environments. Consider the 1.5 dB noise figure for sensitive receiver applications. Verify that the SMA interface matches existing board layouts and cable assemblies.
Part Context
This part belongs to Fairview Microwave's RF amplifier portfolio, specifically targeting wideband applications. It complements other models like the FMAM4063F and FMAM4057F which cover different frequency ranges. The FMAM1075 fills the gap between lower and higher frequency GaN amplifiers in their catalog.
Replacement Considerations
No direct public substitute part numbers are confirmed for this specific model. Evaluate alternatives based on matching frequency range, gain, and connector type.
