FMAM16

Overview

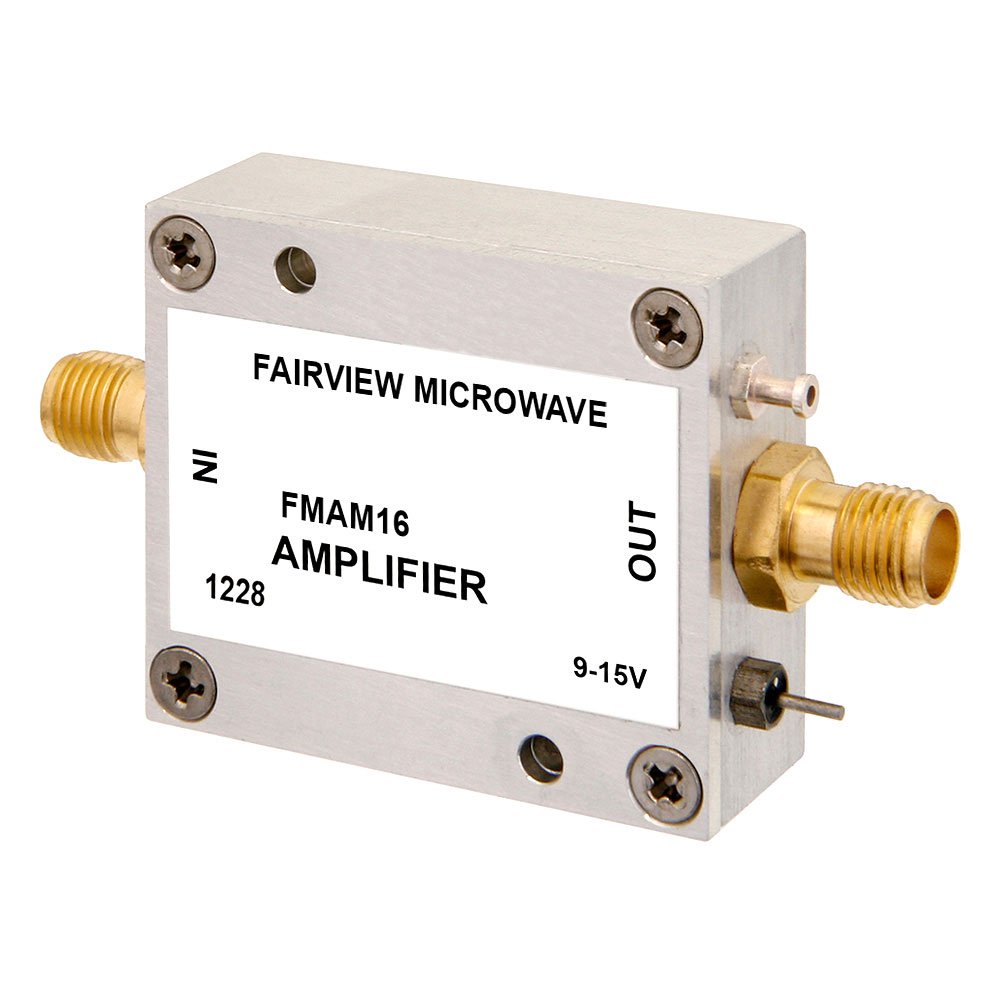

The FMAM16 is a block amplifier manufactured by Fairview Microwave, designed for operation from 100 MHz to 3 GHz. It provides an RF gain of 18 dB and achieves a 16 dBm P1dB output power level. The component utilizes SMA connectors for interface connections. This general-purpose amplifier is categorized under wireless and RF integrated circuits, suitable for applications requiring broadband amplification within the specified frequency range.

Feature Summary

• Provides 18 dB gain across a 100 MHz to 3 GHz operating bandwidth
• Delivers 16 dBm output power at the 1 dB compression point
• Features SMA connector interfaces for signal input and output

Applications

• Broadband RF signal amplification in test and measurement equipment
• Intermediate frequency stages in communication systems
• General-purpose RF circuit design requiring moderate gain

Procurement Notes

Verify the specific datasheet version and electrical tolerances directly with Fairview Microwave or authorized distributors before integration. Confirm that the SMA connector type matches system requirements. Check current availability status as supply conditions may vary. Ensure the operating voltage and current specifications align with the target power supply design constraints.

Selection Notes

Select this model when a fixed 18 dB gain is required between 100 MHz and 3 GHz. Consider the 16 dBm P1dB limit for linearity requirements. Compare against low-noise or high-power variants if noise figure or higher output power is critical. Verify compatibility with existing SMA-based infrastructure.

Part Context

The FMAM16 belongs to the Fairview Microwave RF amplifier portfolio, specifically classified as a block amplifier. It serves as a mid-range solution within their catalog, bridging lower-frequency general-purpose amplifiers and higher-frequency specialized modules. The product supports standard RF testing and development workflows.

Replacement Considerations

No public substitute part numbers are documented for the FMAM16. Evaluate other Fairview Microwave models based on matching gain, frequency range, and P1dB specifications if replacement is necessary.
