FMAM21

Overview

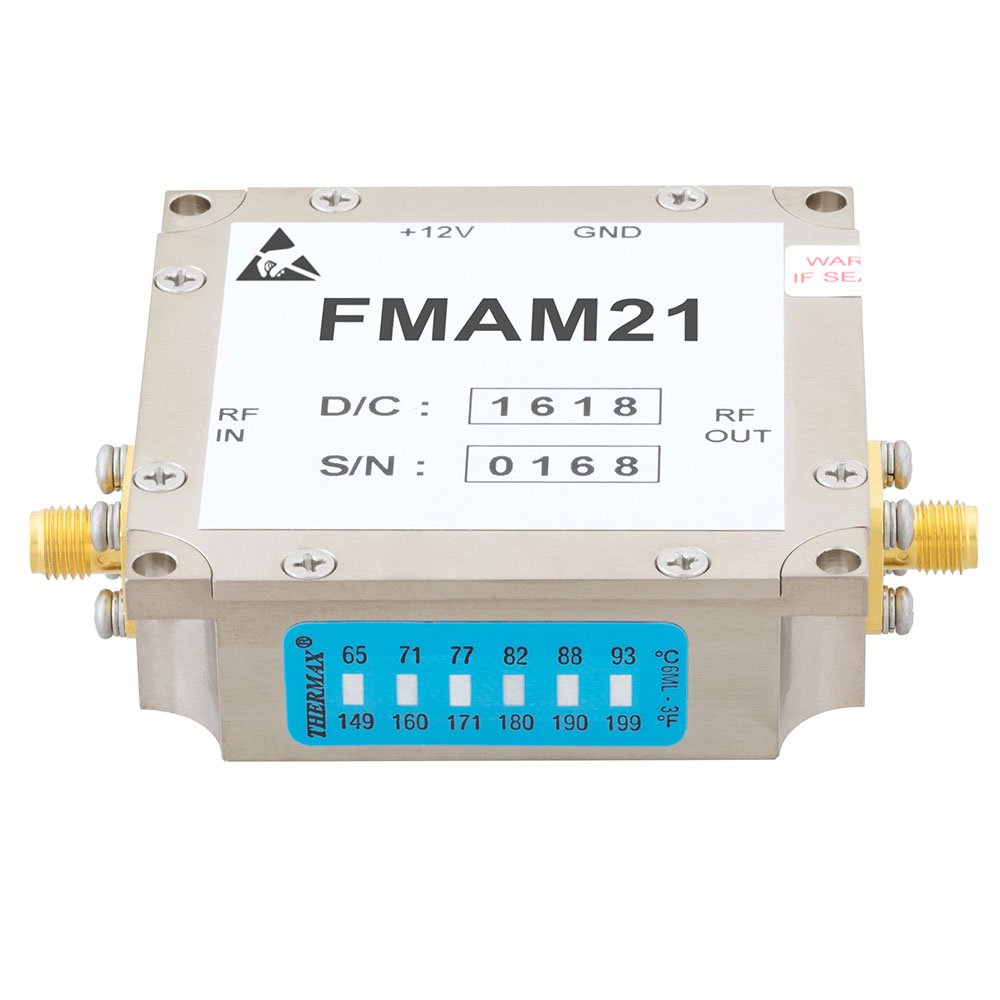

The FMAM21 is a gain block amplifier manufactured by Fairview Microwave, designed for radio frequency applications. It operates within a frequency range of 2 GHz to 6 GHz and provides a nominal gain of 26 dB. The module delivers an output power level (P1dB) of 15 dBm and requires a DC supply voltage of 12 V. It features SMA connectors for signal interfacing and is packaged in a bag.

Feature Summary

• Provides 26 dB gain in the 2 GHz to 6 GHz operational band
• Delivers 15 dBm P1dB output power capability
• Utilizes SMA connector interface for RF connections
• Operates on a standard 12 V DC power supply

Applications

• RF signal amplification in communication systems
• Test and measurement equipment front-ends
• Wireless infrastructure components

Procurement Notes

Verify component authenticity through authorized channels. Confirm datasheet specifications match application requirements. Check current availability status as distribution may vary. Ensure proper handling procedures are followed during installation.

Selection Notes

Select this model when a 26 dB gain is required between 2 GHz and 6 GHz. Consider the 12 V supply constraint and SMA interface compatibility. Evaluate thermal management needs relative to the 15 dBm output power specification.

Part Context

This part belongs to Fairview Microwave's RF amplifier portfolio. It serves as a specialized gain block solution for high-frequency signal processing tasks requiring moderate output power levels within the specified UHF and microwave bands.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer resources for potential alternatives if this specific model is unavailable.
