FMAM3038

Overview

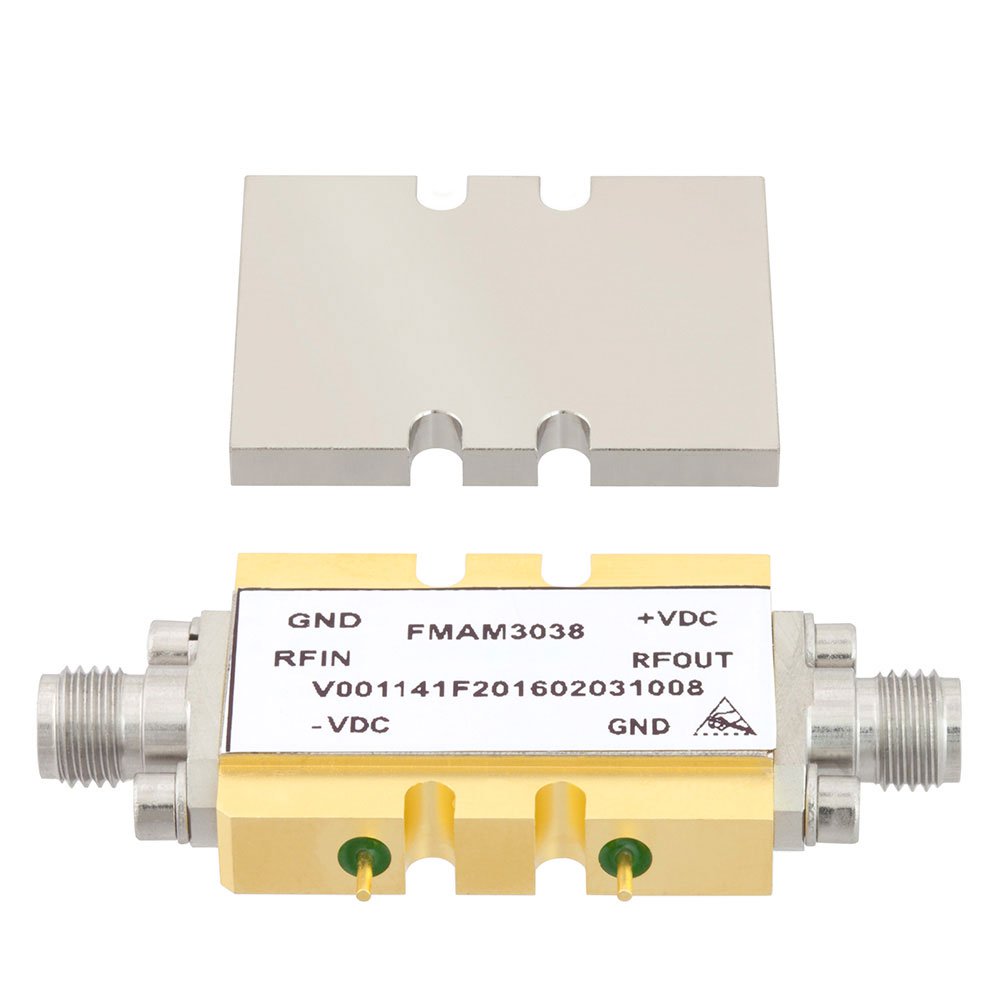

The FMAM3038 is a medium power broadband RF amplifier manufactured by Fairview Microwave. It operates within a frequency range of 2 GHz to 35 GHz and provides a gain of 12 dB. The device delivers an output power of 18 dBm and features a third-order intercept point (OIP3) of 26 dBm. It requires a DC supply voltage between 11 V and 16 V. The unit utilizes 2.92mm connectors and is packaged in a bag for distribution.

Feature Summary

• Broadband operation across the 2 GHz to 35 GHz spectrum
• Integrated heatsink design for thermal management
• High linearity performance with specified OIP3

Applications

• Test and measurement instrumentation
• Wireless communication systems
• Military and aerospace radar applications

Procurement Notes

Verify the specific datasheet version before procurement, as specifications may vary. Confirm connector type compatibility with existing infrastructure. Ensure power supply requirements match the 11 V to 16 V range. Check for RoHS compliance status if required by project standards. Validate availability through authorized distributors due to potential supply constraints.

Selection Notes

Select this component when wideband coverage from 2 GHz to 35 GHz is required. Consider the 12 dB gain and 18 dBm output power for signal boosting needs. Evaluate the 2.92mm interface for high-frequency connection integrity. Assess thermal dissipation capabilities given the medium power classification. Compare OIP3 metrics against system linearity requirements.

Part Context

This amplifier belongs to Fairview Microwave's RF amplifier portfolio, designed for high-frequency applications. It serves as a solution for systems requiring consistent gain over a broad bandwidth. The product targets industries needing reliable performance in demanding electromagnetic environments.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
