FMAM3260

Overview

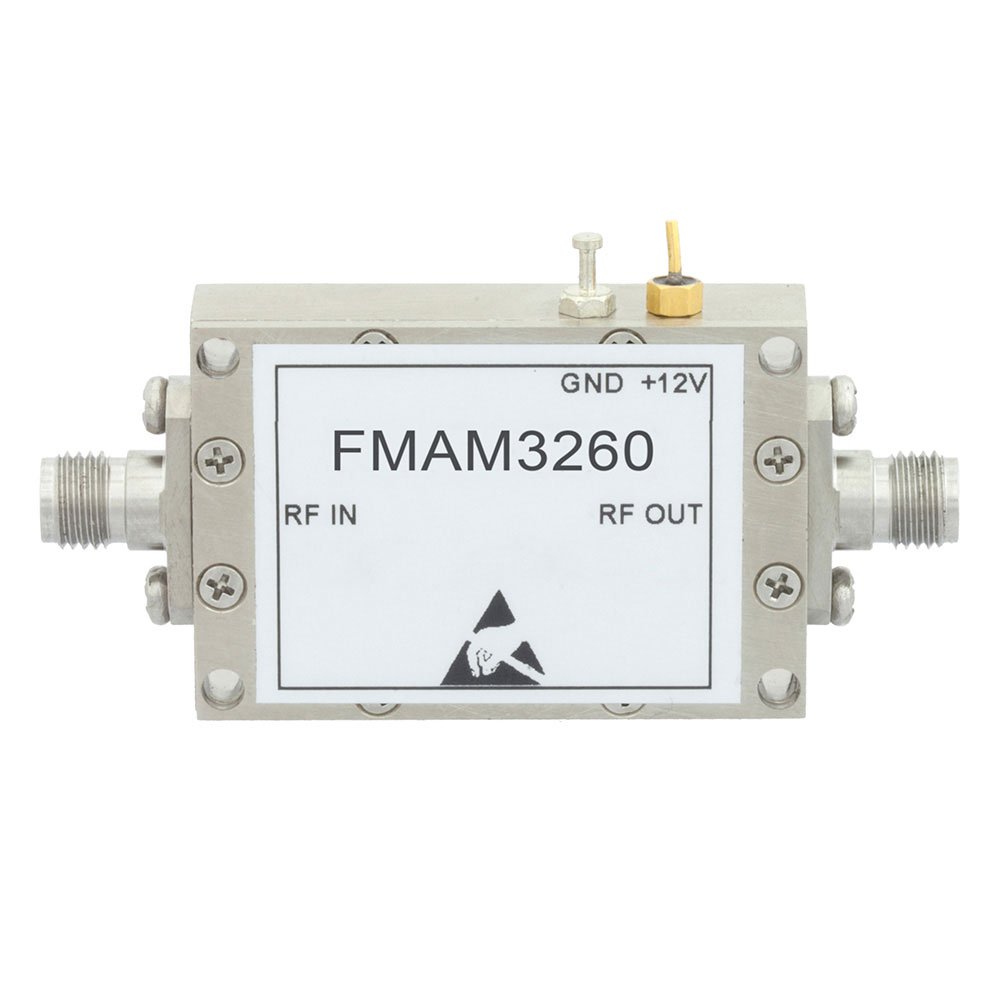

The FMAM3260 is a low noise broadband amplifier manufactured by Fairview Microwave, designed for operation within the 18 GHz to 26.5 GHz frequency range. It provides a nominal gain of 40 dB with a typical noise figure of 2 dB. The device delivers a saturated output power (P1dB) of 13 dBm and an output third-order intercept point (OIP3) of 22 dBm. Electrical performance is supported by a DC supply voltage ranging from 10 V to 15 V, drawing a current of 180 mA. The component utilizes a 2.92mm connector interface and is packaged individually in a bag.

Feature Summary

• Provides high gain amplification suitable for sensitive signal reception applications
• Engineered for low noise performance across a wide microwave bandwidth
• Features robust linearity characteristics indicated by specified intercept points

Applications

• Microwave communication systems requiring signal amplification
• Test and measurement instrumentation equipment
• Satellite ground station receiver chains

Procurement Notes

Verify the specific datasheet version prior to ordering, as specifications may be subject to revision. Confirm that the 2.92mm interface matches your system requirements. Ensure power supply conditions align with the 10 V to 15 V input range. Check availability status directly with the manufacturer or authorized distributors, as stock levels fluctuate. Validate compliance with relevant environmental standards if required for your deployment.

Selection Notes

Select this model when high gain and low noise are critical within the 18-26.5 GHz spectrum. Consider the 2.92mm connector compatibility with existing infrastructure. Evaluate the 180 mA current draw against available power budgets. Compare the 13 dBm output power against link budget requirements. Assess thermal management needs based on the package type and power dissipation.

Part Context

This component belongs to the Fairview Microwave RF Amplifier product line, specifically categorized under Wireless & RF Integrated Circuits. It serves as a specialized active device for microwave frequencies, distinct from general-purpose amplifiers. The part is identified by the manufacturer number FMAM3260 and is distributed through electronic component retailers.

Replacement Considerations

No public confirmed substitute part numbers are documented for this specific model.
