FMAM3268

Overview

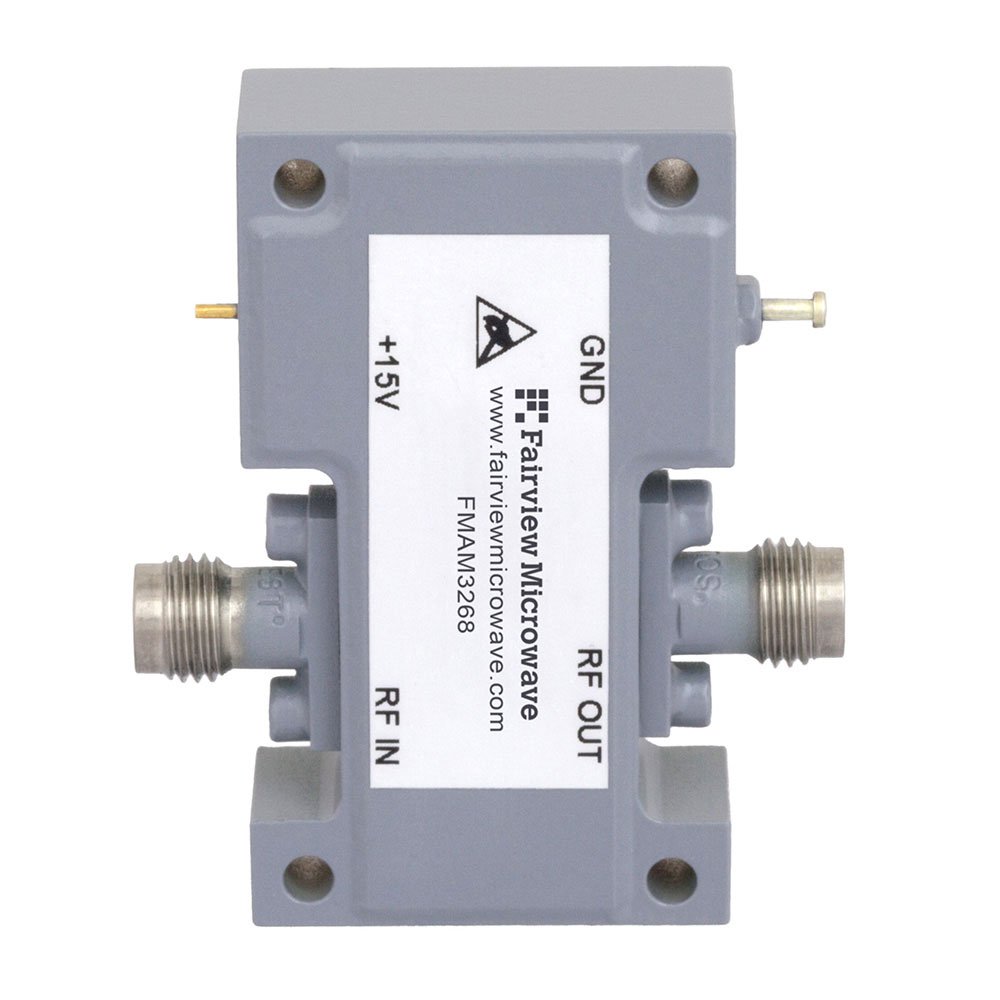

The FMAM3268 is a low noise broadband amplifier manufactured by Fairview Microwave. It operates within a frequency range of 18 GHz to 40 GHz. The component features a noise figure of 5.5 dB. It utilizes a heat sink for thermal management, as proper operation requires conducting heat to the sink.

Feature Summary

• Low noise broadband amplification
• Wideband operation from 18 GHz to 40 GHz
• Requires external heat sink for thermal dissipation

Applications

• High-frequency signal processing
• Test and measurement equipment
• Aerospace and defense systems

Procurement Notes

Verify the specific datasheet for complete electrical parameters including gain and linearity metrics. Confirm that the application design includes an adequate heat sink solution, as the unit relies on conductive cooling for proper operation. Ensure compatibility with the required frequency range before procurement.

Selection Notes

Select this amplifier for applications requiring wideband coverage up to 40 GHz with moderate noise performance. Consider the thermal requirements carefully, as the device lacks internal active cooling and depends on the host system's heat sinking capabilities for stability and longevity.

Part Context

This component belongs to Fairview Microwave's portfolio of RF amplifiers designed for high-frequency applications. It serves as a specialized solution for systems needing broad bandwidth in the millimeter-wave spectrum, distinct from lower-frequency general-purpose amplifiers offered by the manufacturer.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Evaluate other Fairview Microwave models or third-party equivalents based on matching frequency ranges, noise figures, and thermal management requirements.
