FMAM3293

Overview

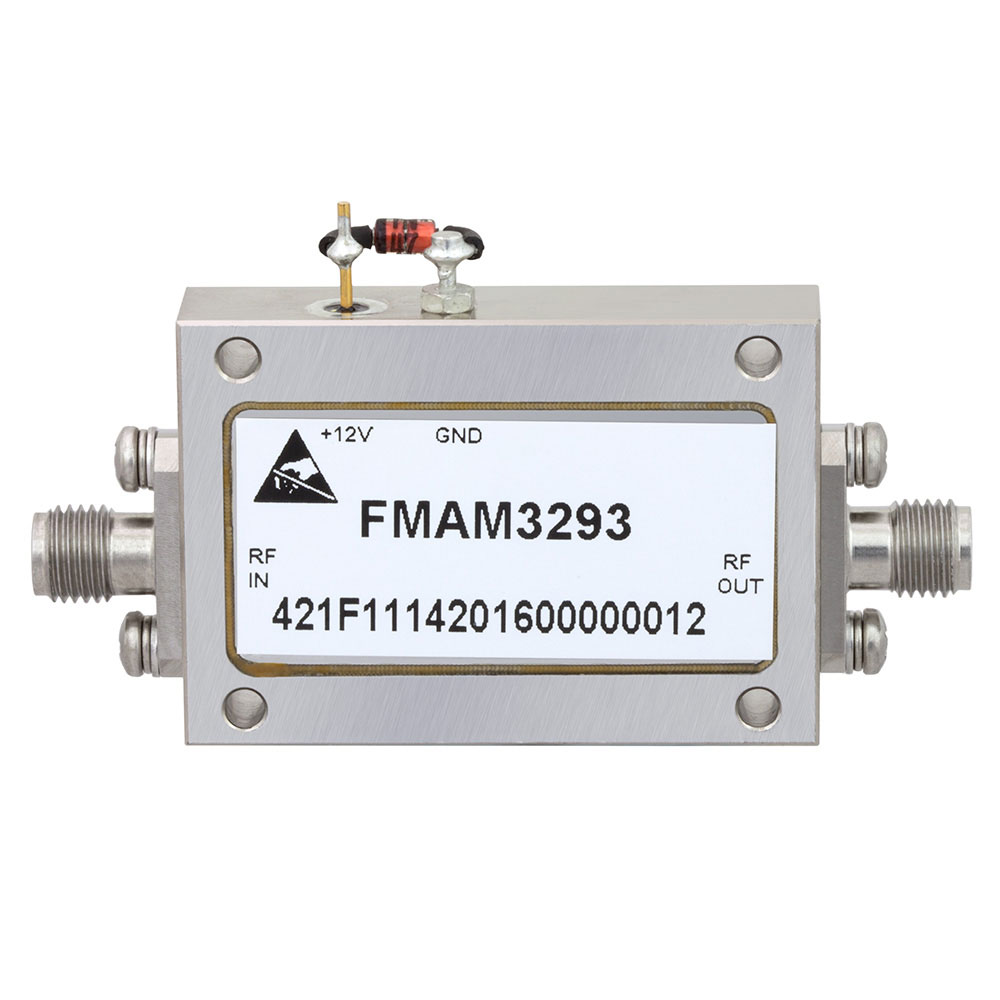

The FMAM3293 is a low noise broadband amplifier manufactured by Fairview Microwave. It operates within a frequency range of 6 GHz to 12 GHz and provides a gain of 30 dB. The device features a noise figure of 2.5 dB and utilizes SMA connectors for interface connections. This component is designed for applications requiring high-performance signal amplification in the microwave spectrum.

Feature Summary

• Provides 30 dB of signal gain across the specified frequency band
• Maintains a low noise figure of 2.5 dB for sensitive signal processing
• Operates effectively within the 6 GHz to 12 GHz microwave range

Applications

• Microwave communication systems
• Test and measurement equipment
• Radar systems

Procurement Notes

Verify that the SMA connector type matches the system requirements. Confirm the operating frequency range aligns with the application needs. Ensure the power supply specifications meet the amplifier's operational standards before integration into the final design.

Selection Notes

Select this model when a 30 dB gain and 2.5 dB noise figure are required between 6 GHz and 12 GHz. Consider the SMA interface compatibility with existing circuitry. Evaluate the thermal management requirements for continuous operation at these frequencies.

Part Context

This amplifier belongs to the Fairview Microwave RF Amplifier product line. It is categorized under Wireless & RF Integrated Circuits. The manufacturer identifies it as a new product available through authorized distributors, specifically noted in Mouser Electronics listings.

FAQ

What is the operating frequency range?

The FMAM3293 operates from 6 GHz to 12 GHz.

What is the typical noise figure?

The typical noise figure is 2.5 dB.
