FMAM3308

Overview

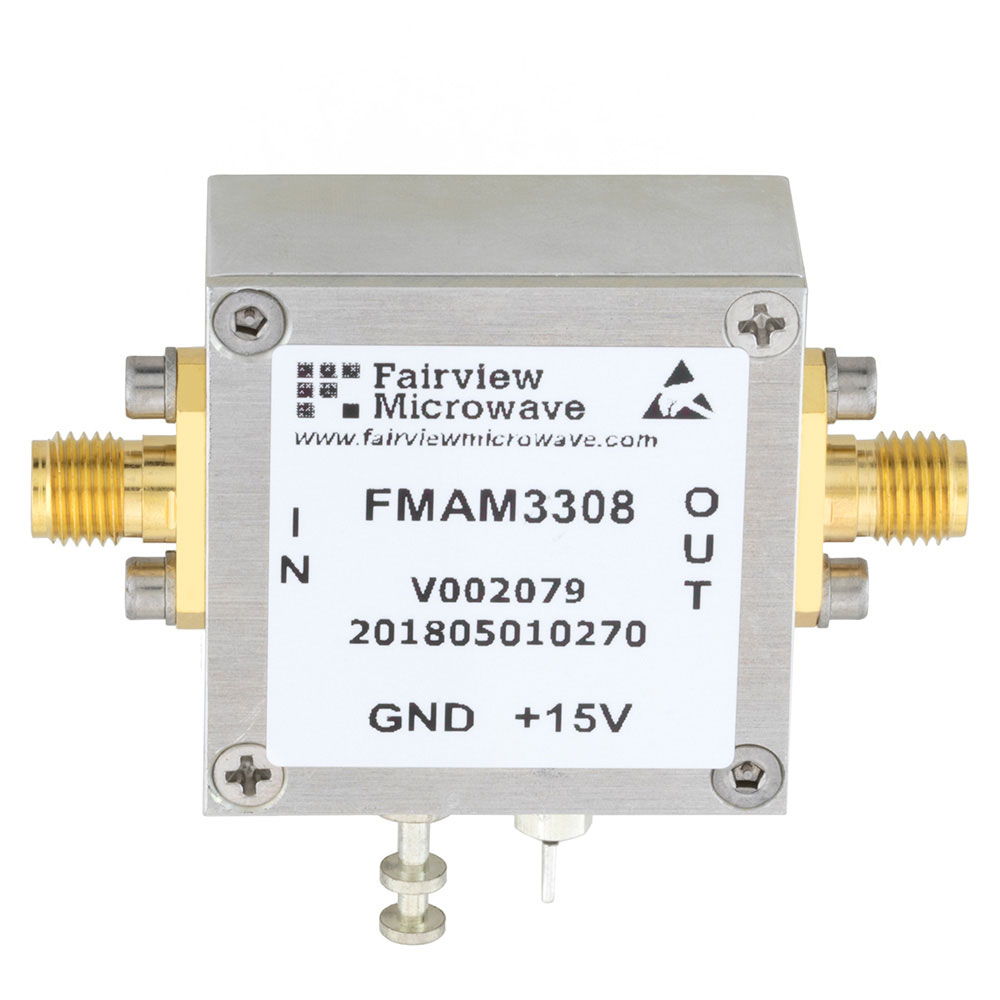

The FMAM3308 is a low noise broadband RF amplifier manufactured by Fairview Microwave. It operates within a frequency range of 0.01 MHz to 3 GHz. The device provides a gain of 16 dB and features a noise figure of 4 dB. Key performance metrics include an output power of 12 dBm and a third-order intercept point (IP3) of 26 dBm. It requires an operating supply voltage between 14 V and 16 V. The component utilizes SMA connectors for input and output interfaces.

Feature Summary

• Low noise design optimized for signal integrity in wideband applications
• Broad operational frequency coverage from near-DC to 3 GHz
• Integrated SMA connector interfaces for direct system integration

Applications

• Wideband communication systems requiring low noise amplification
• Test and measurement equipment signal conditioning
• RF receiver front-end stages

Procurement Notes

Verify the specific datasheet version and electrical tolerances against your system requirements before procurement. Confirm that the operating supply voltage range of 14 V to 16 V aligns with your power infrastructure. Ensure SMA connector compatibility with existing PCB or cable assemblies. Check current availability status as distribution may vary by region.

Selection Notes

Select this component when a low noise figure of 4 dB is critical for maintaining signal-to-noise ratio in the 0.01 MHz to 3 GHz band. The 16 dB gain and 26 dBm IP3 support linear operation in moderate signal environments. Consider the SMA interface constraints and required 14 V to 16 V supply when designing the surrounding circuitry compared to higher frequency or different impedance alternatives.

Part Context

This part belongs to the Fairview Microwave RF Amplifier category, specifically designed for broadband applications. It serves as a specialized active component for enhancing weak signals across a wide spectrum. The manufacturer positions it within their portfolio of precision RF modules intended for professional and industrial electronic systems requiring reliable wideband performance.

Replacement Considerations

FMAM3308
