FMAM3311

Overview

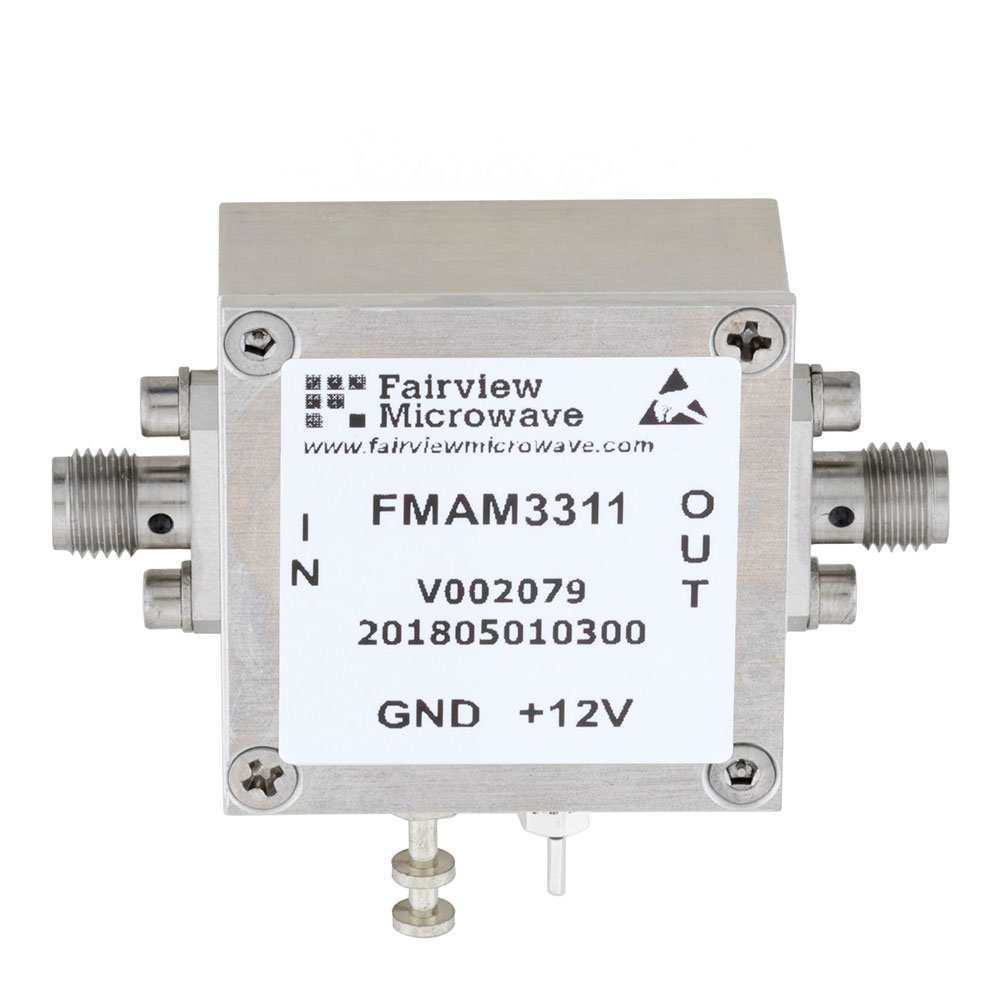

The FMAM3311 is a low noise broadband amplifier manufactured by Fairview Microwave. It operates within a frequency range of 0.1 MHz to 10 GHz. The device provides a gain of 32.5 dB with a noise figure of 5 dB. It features an input power handling capability of 13 dBm and an IP3 of 26 dBm. The component utilizes SMA connectors for interface connections.

Feature Summary

• Provides low noise amplification across a wide bandwidth from 0.1 MHz to 10 GHz
• Delivers high linearity performance with an IP3 of 26 dBm
• Designed for general purpose applications requiring stable signal boosting

Applications

• Test and measurement instrumentation systems
• Broadband communication receiver front-ends
• Signal integrity verification setups

Procurement Notes

Verify the specific datasheet version and manufacturer documentation before integration. Confirm that the SMA connector interfaces match the system requirements. Ensure the operating environment supports the specified frequency range and power levels. Check for any recent updates to the technical specifications or compliance certifications provided by Fairview Microwave.

Selection Notes

Select this component when a wide operational bandwidth extending down to 0.1 MHz is required. The 32.5 dB gain and 5 dB noise figure make it suitable for sensitive signal detection tasks. Consider the 26 dBm IP3 for applications demanding high linearity. Verify that the SMA interface is compatible with existing board layouts and cabling infrastructure.

Part Context

This part belongs to the RF Amplifier category produced by Fairview Microwave. It is designed as a general-purpose solution for signal conditioning. The product line focuses on providing reliable performance across various radio frequency applications. It serves as a building block for systems requiring precise amplification characteristics.
