FMAM3502

Overview

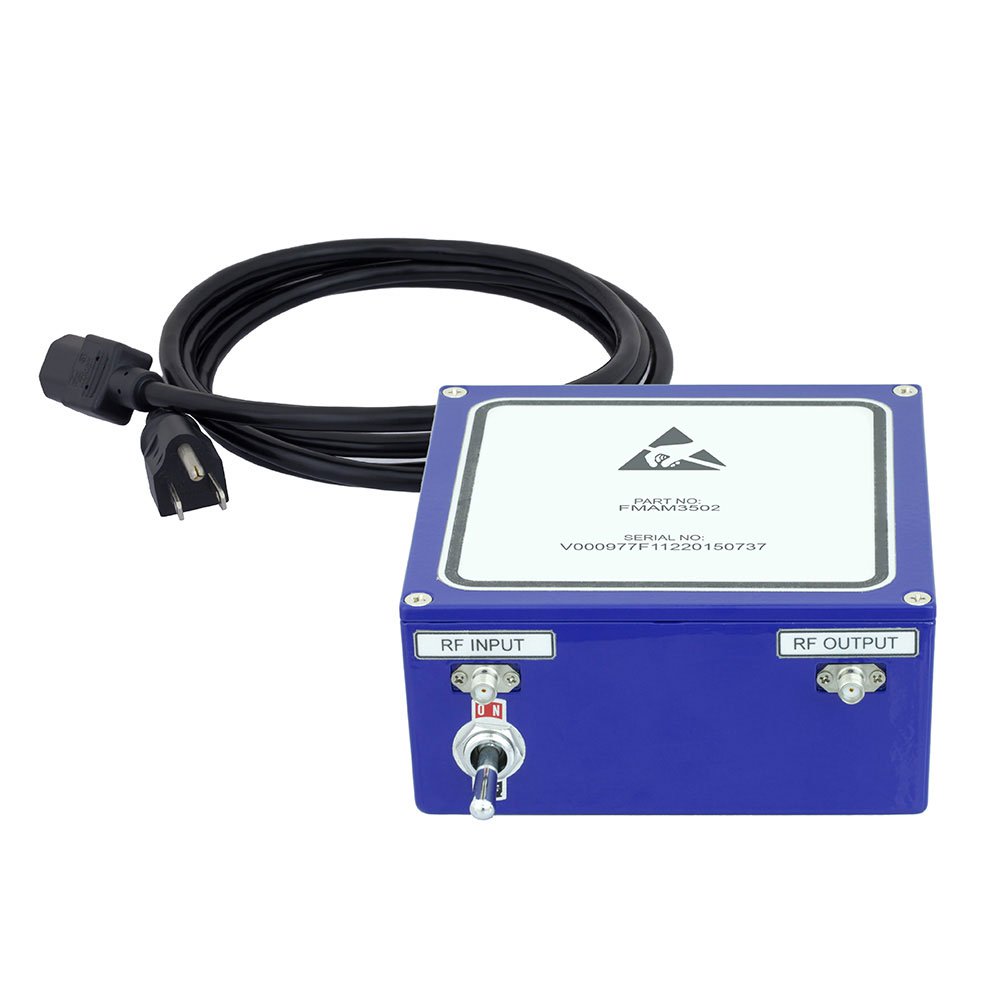

The FMAM3502 is a broadband high gain RF amplifier manufactured by Fairview Microwave. It operates within a frequency range of 20 GHz to 40 GHz and provides a nominal gain of 60 dB. The unit requires a 115 VAC power supply and features an input power handling capability of 10 dBm. Electrical connections are established via 2.92mm connectors, ensuring compatibility with standard high-frequency test and measurement setups.

Feature Summary

• Provides 60 dB of broadband gain across the 20 GHz to 40 GHz spectrum
• Utilizes 2.92mm connector interfaces for signal transmission
• Operates on a 115 VAC power supply requirement

Applications

• High-frequency signal amplification in test and measurement equipment
• Microwave communication system signal boosting
• Radar system component integration

Procurement Notes

Verify the specific datasheet version from Fairview Microwave or authorized distributors before procurement. Confirm that the 115 VAC power requirement aligns with your system infrastructure. Ensure that the 2.92mm connector interface matches your existing cabling and fixture specifications to maintain signal integrity at frequencies up to 40 GHz.

Selection Notes

Select this component when a fixed 60 dB gain is required for signals between 20 GHz and 40 GHz. The 2.92mm interface dictates compatibility with specific high-frequency interconnects. Consider the 115 VAC power requirement during system design, as it differs from common low-voltage DC options. This amplifier is suitable for applications demanding stable broadband performance in the E-band and above.

Part Context

This model belongs to Fairview Microwave's portfolio of general-purpose RF amplifiers designed for demanding microwave environments. It complements other models in the series that cover lower frequency ranges, such as the FMAM3500 (1-20 GHz) and FMAM86002 (DC-17 MHz), providing a comprehensive solution for wideband testing needs.
