FMAM4011

Overview

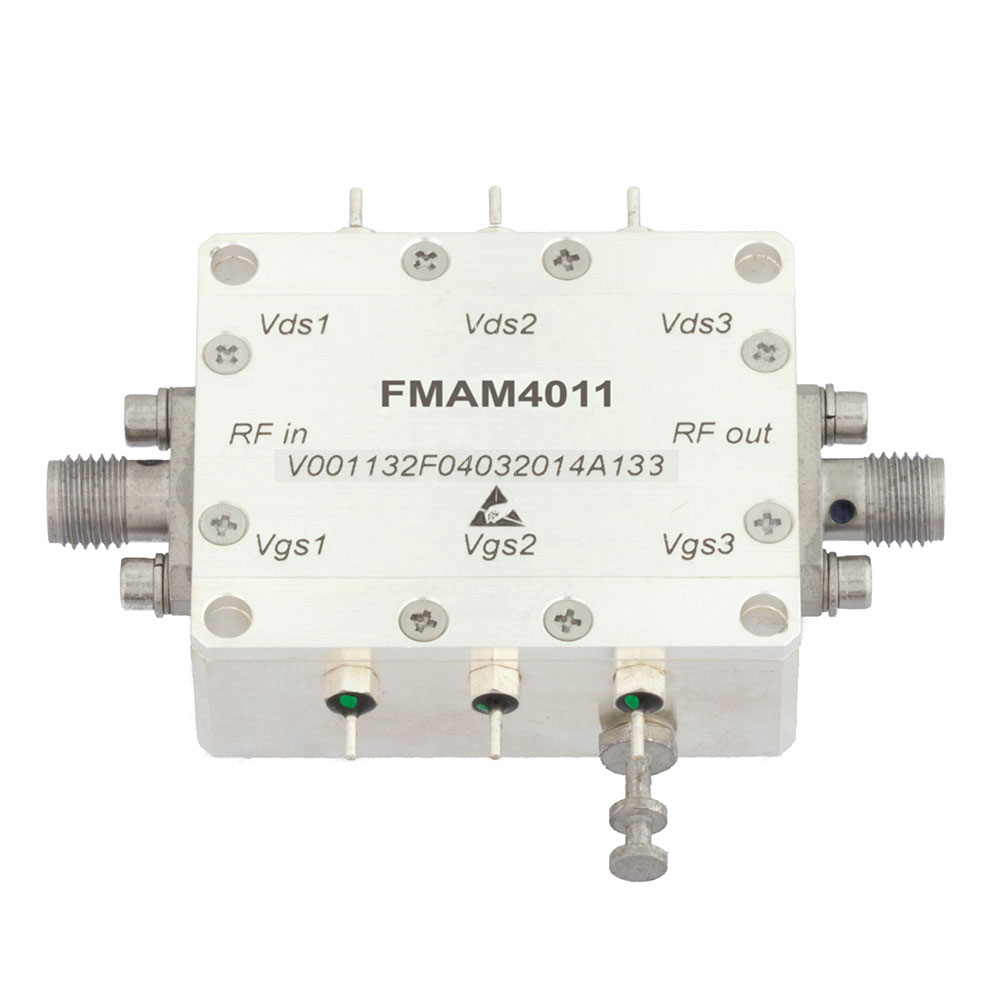

The FMAM4011 is a high power GaAs amplifier manufactured by Fairview Microwave. It operates within a frequency range of 2 GHz to 4.4 GHz and features SMA connectors. The device delivers a saturated output power (Psat) of 5 Watts and provides a third-order intercept point (IP3) of 37 dBm. This component is classified as an RF amplifier designed for signal conditioning applications requiring significant power handling capabilities in the microwave spectrum.

Feature Summary

• Utilizes Gallium Arsenide (GaAs) technology for high power performance
• Provides 5 Watt saturated output power capability
• Features SMA connector interface for standard RF integration

Applications

• Microwave communication systems
• Signal generation and conditioning
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version and technical specifications directly with Fairview Microwave or authorized distributors before procurement. Confirm that the SMA connector type and GaAs construction align with system requirements. Ensure environmental conditions and thermal management strategies are adequate for the 5 Watt Psat operation to maintain performance integrity.

Selection Notes

Select this component when a high power output is required within the 2 GHz to 4.4 GHz band. The 37 dBm IP3 indicates strong linearity characteristics suitable for complex modulation schemes. Consider the physical size and thermal dissipation needs associated with GaAs amplifiers delivering 5 Watts of power compared to lower power alternatives.

Part Context

Fairview Microwave produces a range of RF modules and amplifiers for various frequency bands. The FMAM4011 belongs to their high-power amplifier series, distinct from low-noise or medium-power variants like the FMAM5034F. It serves specialized roles where signal strength is critical over the C-band and adjacent microwave frequencies.
