FMAM4015

Overview

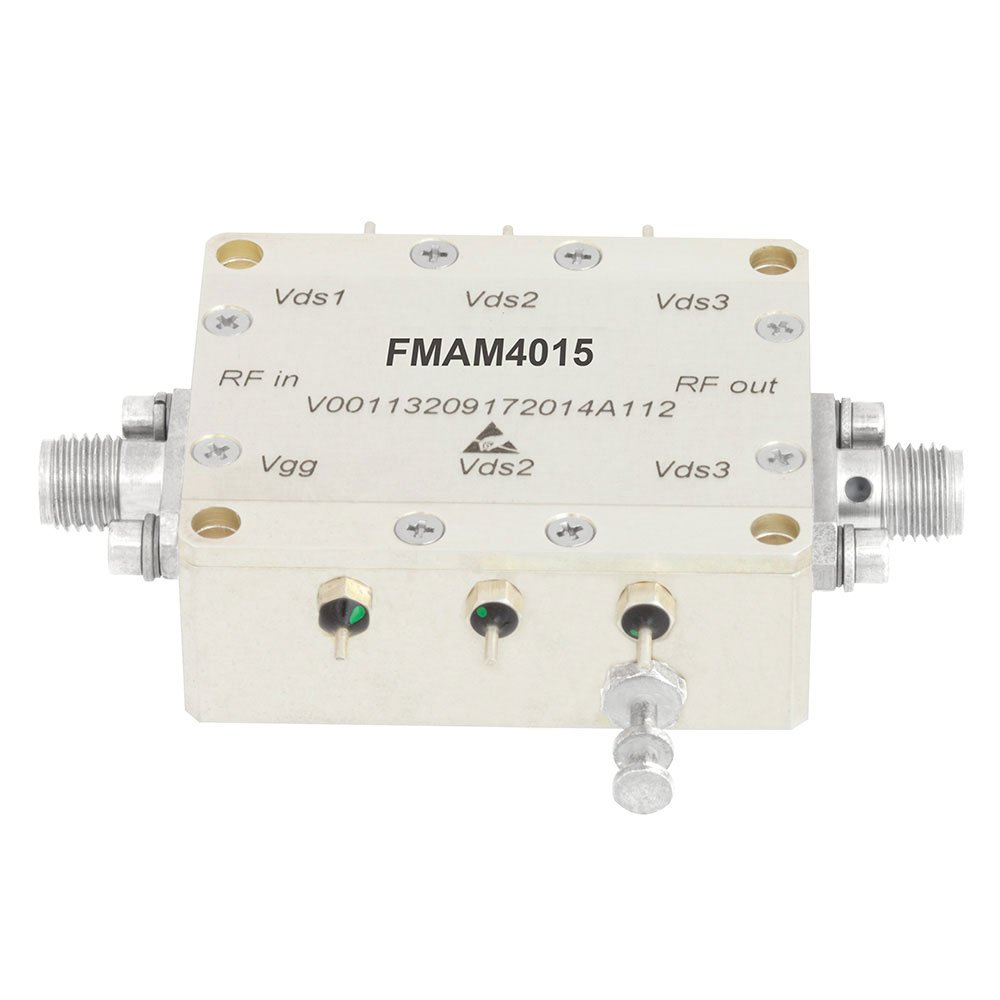

The FMAM4015 is a high-power GaAs RF amplifier manufactured by Fairview Microwave, designed for operation within the 8 GHz to 11 GHz frequency range. It delivers a gain of 28 dB and achieves a saturated output power (Psat) of 4 Watts. The component utilizes SMA connectors for interfacing and is packaged in a bag. This amplifier is classified under Power Amplifiers within the Wireless & RF Integrated Circuits subcategory.

Feature Summary

• High-power GaAs technology construction
• SMA connector interface
• Temperature compensated low noise design

Applications

• Wireless communication systems
• RF signal transmission
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version for the FMAM4015 before integration, as manufacturer specifications may be updated. Confirm that the SMA interface and 8-11 GHz operational range align with your system requirements. Check current availability status through authorized distributors, as supply levels can fluctuate. Ensure proper thermal management is planned given the high-power nature of the device.

Selection Notes

Select the FMAM4015 when a high-power solution is required in the K-band spectrum. Its 28 dB gain and 4W Psat make it suitable for applications needing significant signal boosting. Compare against other GaAs amplifiers if lower noise figures are critical, noting its primary strength is power output rather than ultra-low noise performance in this specific band.

Part Context

Fairview Microwave produces a range of RF amplifiers for various frequency bands. The FMAM4015 belongs to their high-power GaAs series, distinct from their low-noise or bi-directional amplifier lines. It serves as a specialized component for engineers designing systems operating specifically between 8 and 11 GHz.

Replacement Considerations

No public confirmed substitute part numbers are available for the FMAM4015. Engineers should consult Fairview Microwave directly for potential cross-reference options or newer model replacements.
