FMAM4022

Overview

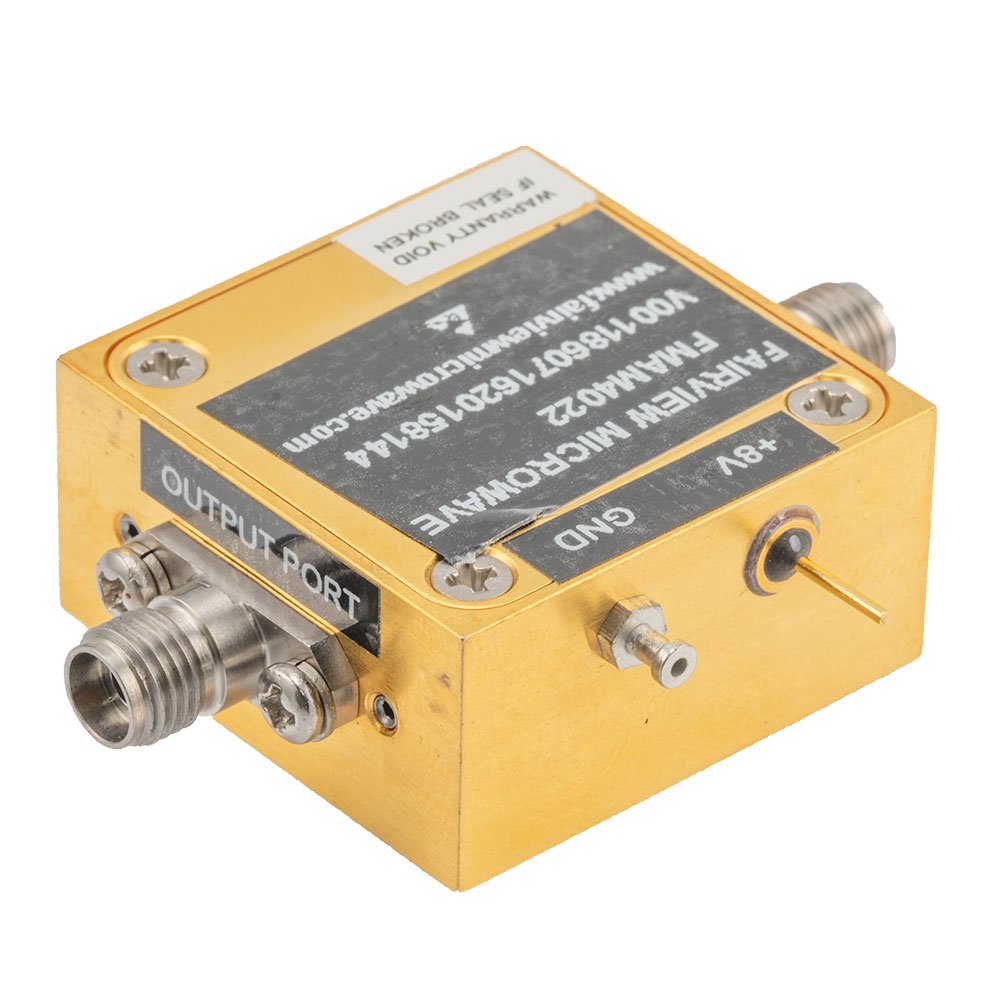

The FMAM4022 is a medium power broadband amplifier manufactured by Fairview Microwave, designed for operation within the 26.5 GHz to 40 GHz frequency range. This component delivers a nominal gain of 30 dB and supports an output power level of 20 dBm. It is engineered to provide consistent performance across its specified millimeter-wave bandwidth, making it suitable for high-frequency signal amplification tasks.

Feature Summary

• Broadband amplification capability spanning from 26.5 GHz to 40 GHz
• Medium power output configuration with 20 dBm rating
• High gain performance at 30 dB

Applications

• Millimeter-wave communication systems
• Test and measurement instrumentation
• Radar subsystems

Procurement Notes

Verify the specific datasheet version and electrical characteristics directly with Fairview Microwave or authorized distributors before integration. Confirm mechanical dimensions and connector types match your system requirements. Ensure thermal management solutions are adequate for the specified power levels during continuous operation.

Selection Notes

Select this component when a wide bandwidth covering 26.5 GHz to 40 GHz is required alongside moderate output power. The 30 dB gain specification suits applications needing significant signal boosting in the E-band. Evaluate thermal constraints carefully as medium power amplifiers generate heat requiring appropriate heatsinking or cooling strategies.

Part Context

Fairview Microwave specializes in RF and microwave components, including amplifiers, cables, and adapters. The FMAM4022 belongs to their series of broadband amplifiers targeting high-frequency applications. These products are typically used in specialized industrial, scientific, and communication equipment operating in millimeter-wave bands.
