FMAM4030

Overview

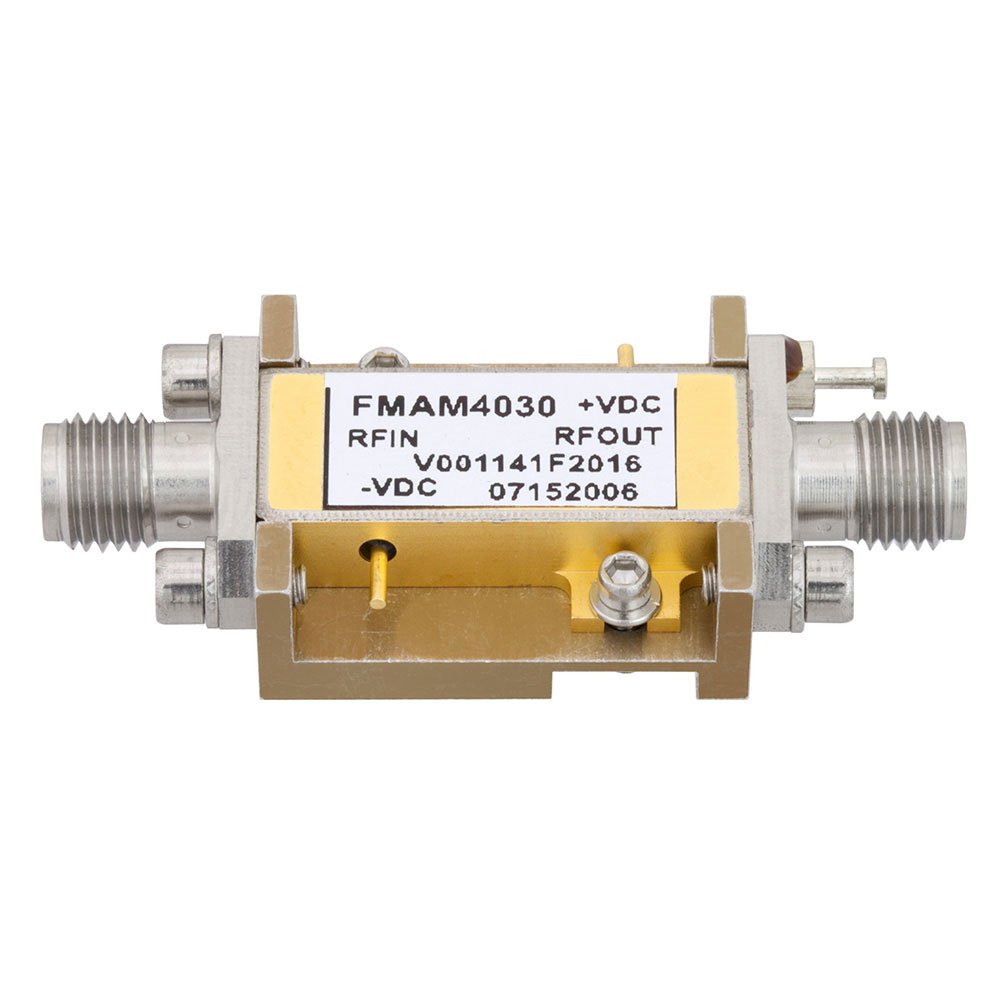

The FMAM4030 is a medium power broadband RF amplifier manufactured by Fairview Microwave. It operates within a frequency range of 2 GHz to 20 GHz. The device provides a gain of 31 dB and delivers an output power of 26 dBm at the P1dB compression point. It utilizes SMA connectors for interfacing.

Feature Summary

• Broadband amplification across the 2 GHz to 20 GHz spectrum
• Medium power output capability with specified linearity metrics
• Integrated SMA connector interface for direct system integration

Applications

• Wideband communication systems requiring signal amplification
• Test and measurement equipment operating in microwave frequencies
• Military and aerospace radar subsystems

Procurement Notes

Verify the specific datasheet version and mechanical dimensions prior to procurement, as Fairview Microwave products may undergo revisions. Confirm that the SMA connector type matches your system requirements. Ensure thermal management solutions are adequate for the specified power levels during operation. Cross-reference the part number with official manufacturer catalogs to confirm current availability status.

Selection Notes

Select this component when a wide bandwidth from 2 GHz to 20 GHz is required alongside moderate output power. The 31 dB gain suits applications needing significant signal boosting without excessive noise figure concerns typical of lower-frequency amps. Consider the physical size and mounting requirements associated with its module form factor compared to discrete chip solutions.

Part Context

This amplifier belongs to Fairview Microwave's portfolio of RF modules designed for high-performance wireless applications. It complements other broadband amplifiers in their lineup by offering extended upper-frequency coverage up to 20 GHz. The product targets engineers designing systems that require reliable signal integrity across multiple microwave bands.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
