Product Detailed Parameters
- Description：BROADBAND AMP TYPE SMA 10MHZ-6GH
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency：-
- P1dB：-
- Gain：-
- Noise Figure：-
- RF Type：-
- Voltage - Supply：-
- Current - Supply：-
- Test Frequency：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

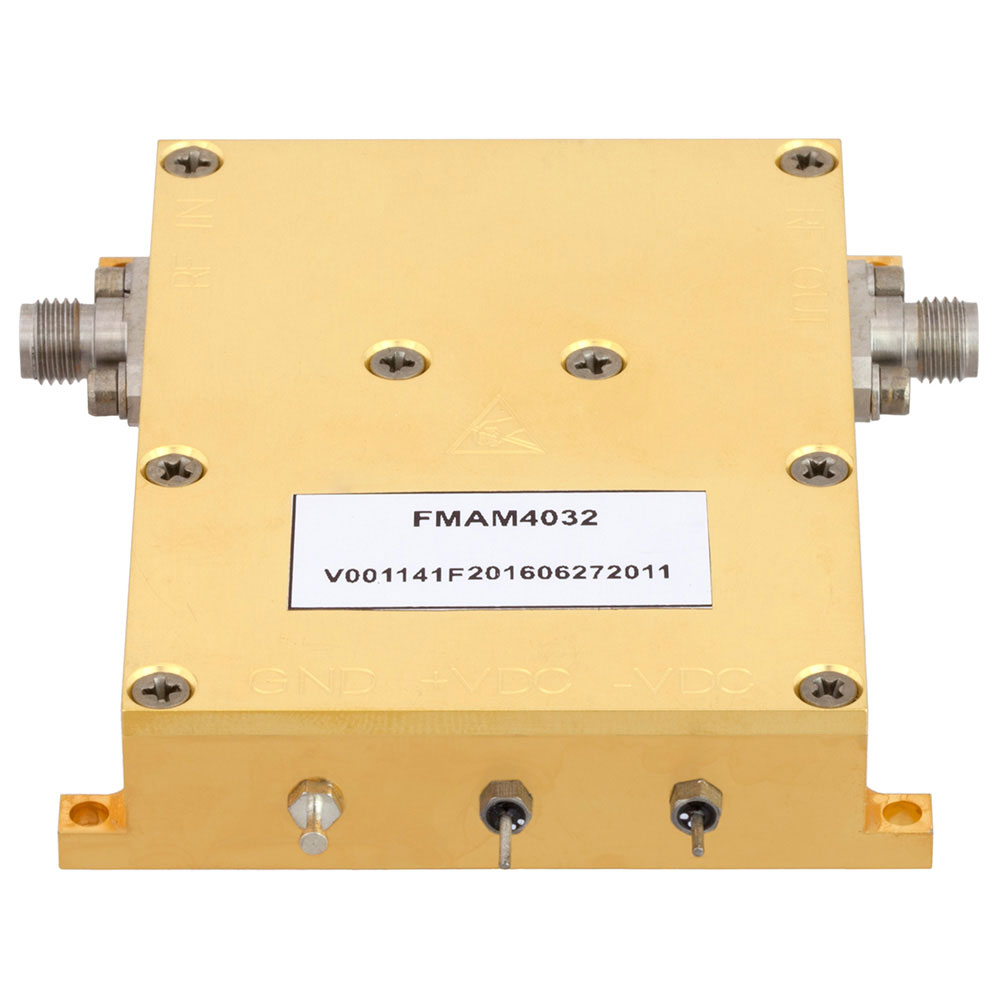

The FMAM4032 is an RF amplifier module manufactured by Fairview Microwave. It operates within a frequency range of 500 MHz to 4 GHz. The device provides a gain of 31 dB and delivers a saturated output power (Psat) of 37 dBm. It features a third-order intercept point (IP3) of 40 dBm and includes an integrated heatsink for thermal management. The module utilizes SMA connectors for both input and output interfaces.
Feature Summary
- Integrated heatsink design for enhanced thermal dissipation
- High linearity performance with 40 dBm IP3
- Broadband operation from 500 MHz to 4 GHz
Applications
- Test and measurement instrumentation
- Wireless communication systems
- RF signal generation and conditioning
Procurement Notes
Verify the specific datasheet revision and technical specifications directly from Fairview Microwave official documentation before integration. Confirm that the SMA connector types and mounting requirements align with your system design constraints. Ensure proper thermal interface material application to utilize the integrated heatsink effectively. Check for any regional distribution restrictions or supply limitations prior to finalizing procurement plans.
Selection Notes
Select the FMAM4032 when high linearity and moderate power output are required across the UHF and lower microwave bands. Its integrated heatsink simplifies thermal management compared to bare die solutions. Consider this module if SMA connectivity is preferred over board-level surface mount options. Evaluate the 31 dB gain against system noise figure requirements to ensure adequate signal amplification without excessive distortion.
Part Context
This component belongs to the Fairview Microwave RF amplifier family, specifically designed for modular applications. It serves as a complete solution for signal amplification, eliminating the need for external matching networks typically required with discrete components. The module format allows for easy integration into larger RF test setups or communication hardware architectures.
Replacement Considerations
Consult Fairview Microwave official documentation for verified substitute part numbers. No public cross-reference data is available in the provided source material.
