FMAM4039

Overview

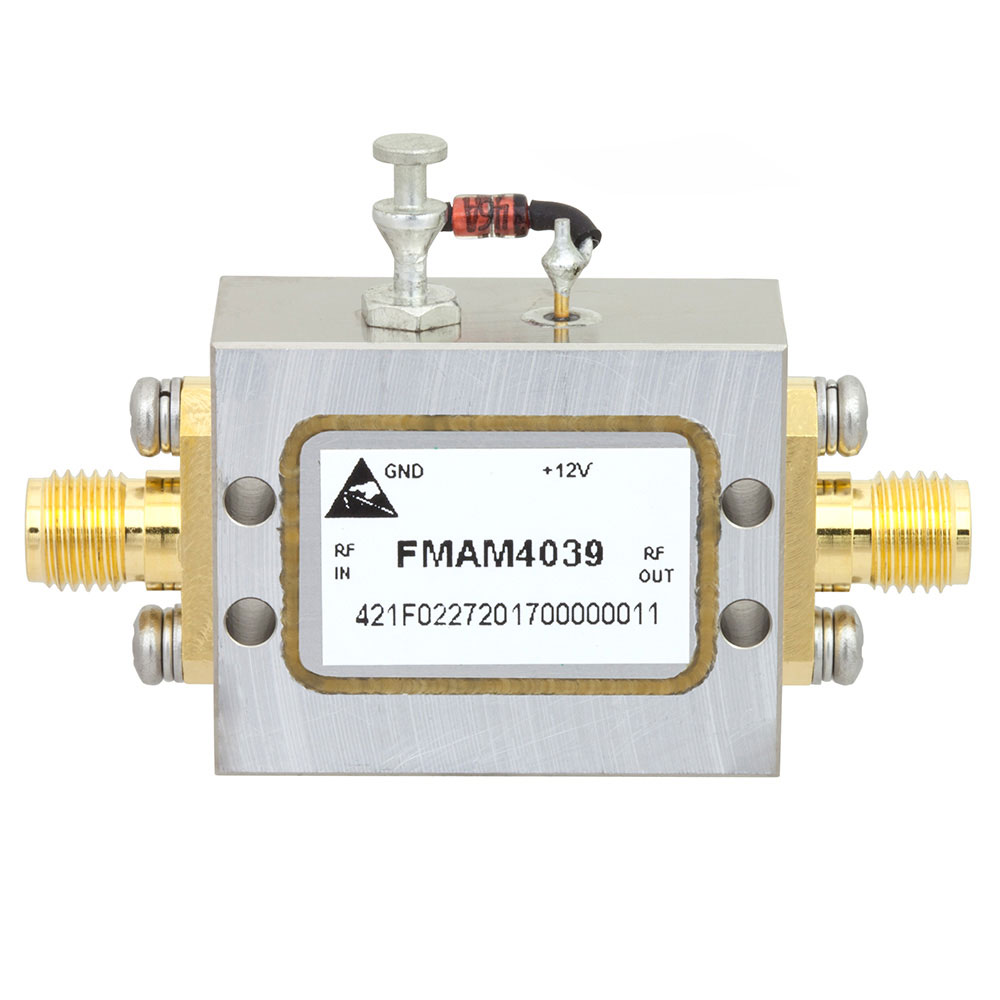

The FMAM4039 is a medium power broadband RF amplifier manufactured by Fairview Microwave. It operates within a frequency range of 500 MHz to 2.5 GHz. The device provides a gain of 24 dB and delivers an output power of 24 dBm. It utilizes SMA connectors for interfacing. The operating supply current is specified as 240 mA. This component is designed for applications requiring reliable amplification across its designated bandwidth.

Feature Summary

• Broadband amplification capability across the 500 MHz to 2.5 GHz spectrum
• Integrated SMA connector interface for standard RF system integration
• Medium power output performance suitable for signal conditioning tasks

Applications

• RF signal chain amplification in test and measurement equipment
• Wireless communication infrastructure components
• Broadband signal processing systems

Procurement Notes

Verify the specific datasheet version from Fairview Microwave or authorized distributors to confirm current manufacturing status and electrical tolerances. Ensure that the SMA connector polarity and cable assembly requirements match your system design before procurement. Check for any recent lifecycle updates or obsolescence notices directly from the manufacturer to avoid integration issues with long-term projects.

Selection Notes

Select the FMAM4039 when a fixed gain of 24 dB and 24 dBm output power are required within the 500 MHz to 2.5 GHz band. Consider the 240 mA supply current for power budget calculations. Compare against other Fairview models like the FMAM4053F if higher frequencies up to 4 GHz are needed, or the FMAM4056F for operation extending to 18 GHz. Ensure the SMA interface compatibility with existing board layouts.

Part Context

This component belongs to the Fairview Microwave RF Amplifier product line, specifically categorized under wireless and RF integrated circuits. It is part of a series of medium power amplifiers designed for various frequency ranges. The FMAM4039 serves as a specialized solution for mid-band RF applications, complementing other models that cover lower or higher frequency spectrums within the same manufacturer's portfolio.

Replacement Considerations

For direct functional replacement within the same frequency range, evaluate other Fairview Microwave amplifiers with similar gain and power specifications. If frequency extension is acceptable, consider the FMAM4053F (up to 4 GHz) or FMAM4056F (up to 18 GHz). Verify pinout and connector compatibility before substituting with generic alternatives.
