FMAM4040

Overview

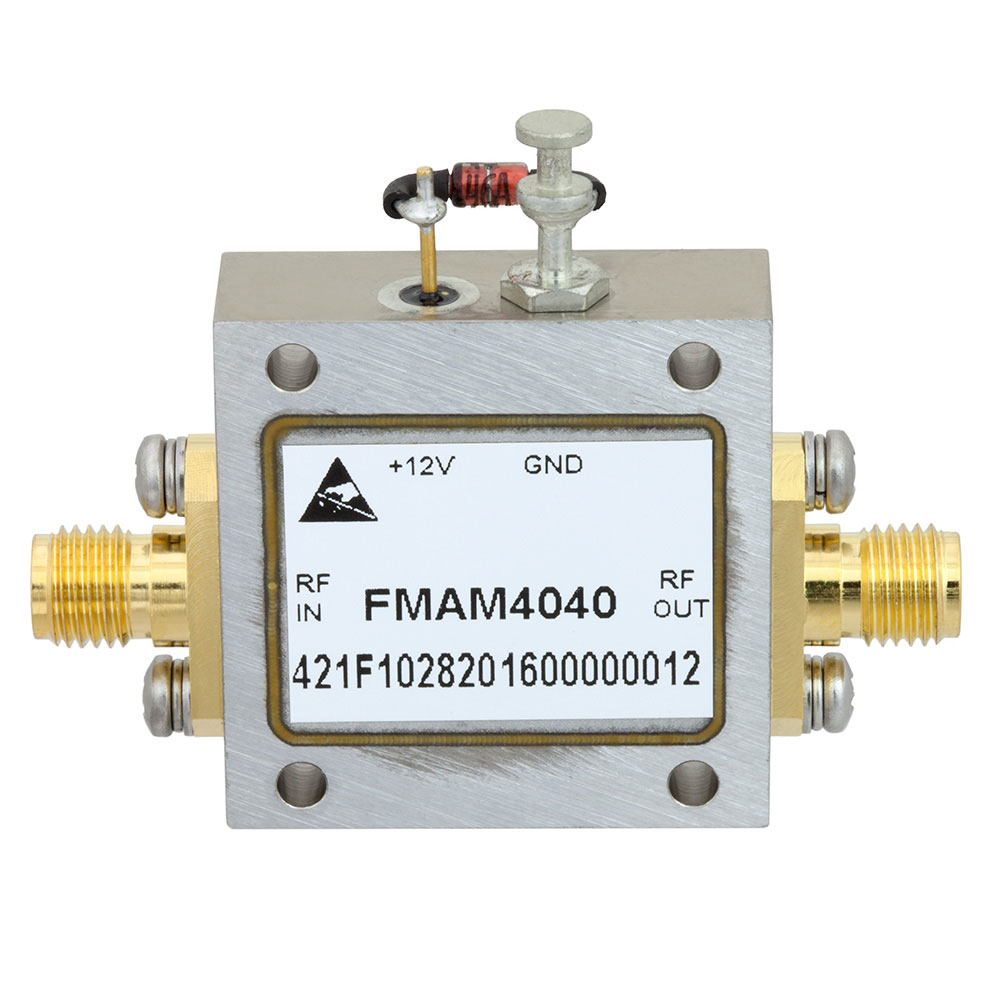

The FMAM4040 is a medium power broadband RF amplifier manufactured by Fairview Microwave, designed for operation within the 2 GHz to 6 GHz frequency range. This general-purpose device provides a gain of 13 dB and features an input third-order intercept point (OIP3) of 27 dBm. It achieves a 1 dB compression point (P1dB) of 23 dBm with a noise figure of 5.4 dB. The amplifier utilizes SMA connectors and is packaged in a bag.

Feature Summary

• Provides broadband amplification across the 2 GHz to 6 GHz spectrum
• Features high linearity with a 27 dBm OIP3 specification
• Delivers moderate output power capability at 23 dBm P1dB

Applications

• General purpose RF signal amplification
• Broadband communication systems
• Test and measurement equipment

Procurement Notes

Verify component authenticity through authorized Fairview Microwave channels or certified distributors. Confirm that the received unit matches the specific FMAM4040 designation and includes original packaging documentation. Inspect SMA connectors for physical integrity before integration into circuit designs to ensure reliable RF performance.

Selection Notes

Select this model when a stable 13 dB gain is required between 2 GHz and 6 GHz. Consider the 5.4 dB noise figure for sensitivity requirements. Ensure system power budgets accommodate the amplifier's linear operation limits defined by the 23 dBm P1dB threshold.

Part Context

This component belongs to the Fairview Microwave RF amplifier portfolio, categorized under wireless and RF integrated circuits. It serves as a discrete active device for signal conditioning, distinct from passive cable assemblies or lower-frequency DC-coupled variants within the same manufacturer's lineup.

Replacement Considerations

No public substitute part numbers are documented. Evaluate alternative models based on matching frequency ranges, gain values, and connector types if direct replacement is necessary.
