FMAM4050

Overview

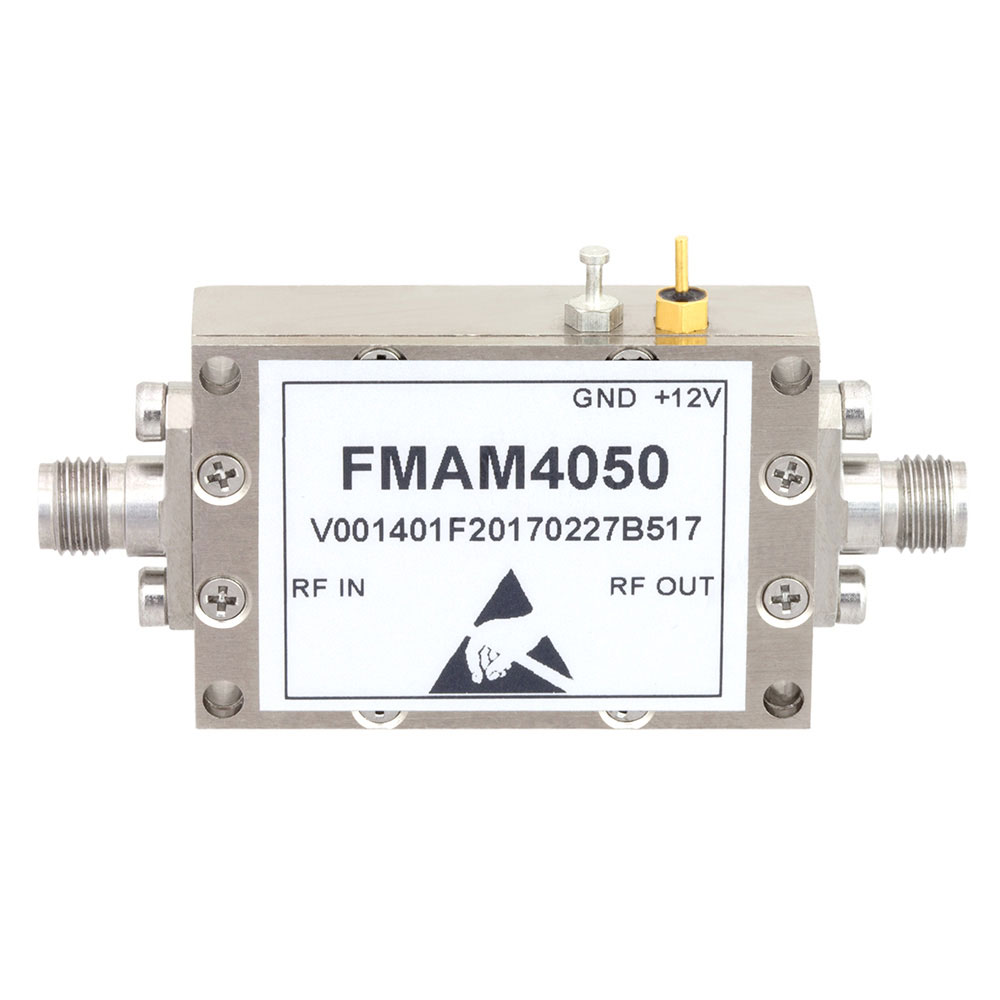

The FMAM4050 is a medium power amplifier module manufactured by Fairview Microwave, designed for operation within the 26.5 GHz to 40 GHz frequency range. It delivers a saturated output power (Psat) of 22 dBm and features a third-order intercept point (IP3) of 28 dBm. The device utilizes SMA connectors for interfacing and operates on an input voltage supply ranging from 8 V to 15 V.

Feature Summary

• Provides medium power amplification capabilities in the millimeter-wave spectrum
• Features high linearity with a specified IP3 rating
• Includes integrated heatsink for thermal management

Applications

• Millimeter-wave communication systems
• Test and measurement instrumentation
• Radar subsystems

Procurement Notes

Verify the specific connector type and pinout configuration against the official datasheet before integration. Confirm that the operating voltage range aligns with the system power supply design. Ensure adequate thermal dissipation solutions are implemented due to the module's power characteristics.

Selection Notes

Select this component when a compact solution is required for frequencies between 26.5 GHz and 40 GHz. Consider the 22 dBm Psat and 28 dBm IP3 specifications relative to system linearity requirements. Evaluate the SMA interface compatibility with existing board layouts.

Part Context

This part belongs to the Fairview Microwave RF Amplifier category, specifically within the medium power amplifier subcategory. It is categorized under Wireless & RF Integrated Circuits. The manufacturer specializes in microwave and millimeter-wave components.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
