FMAM4053

Overview

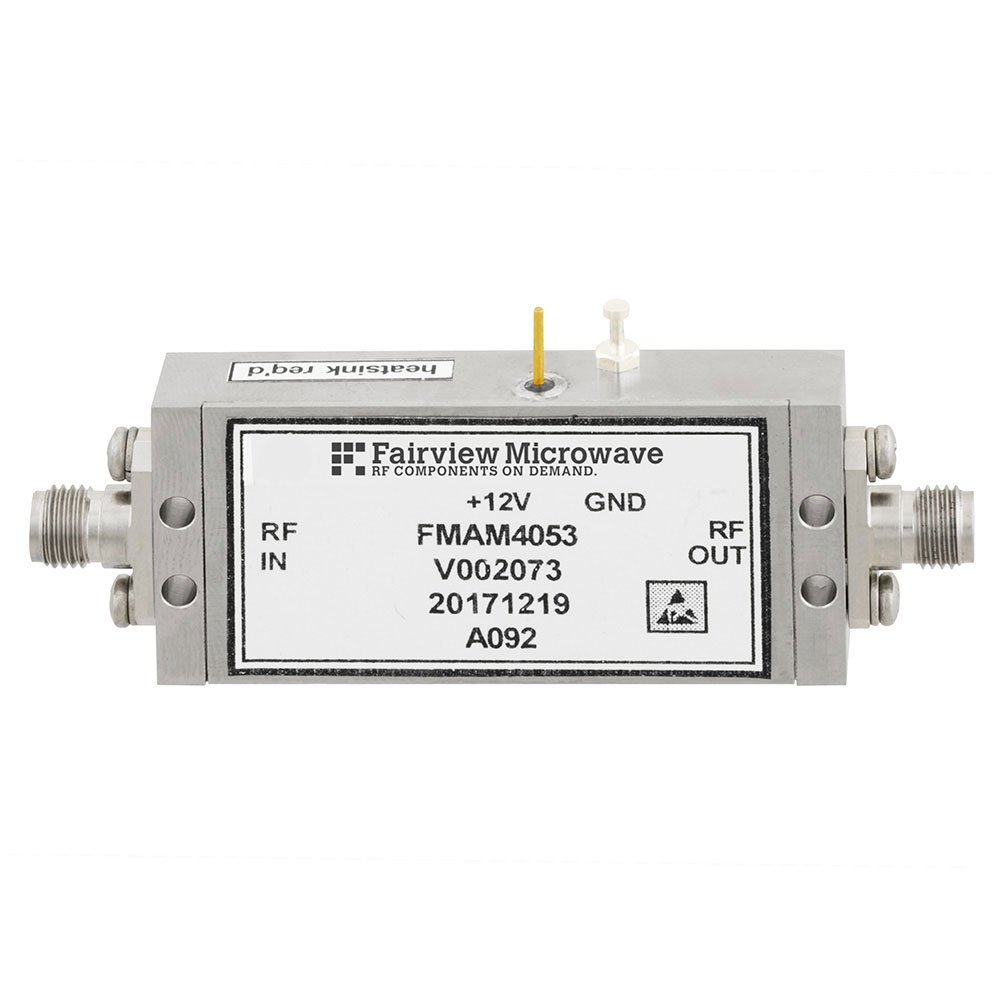

The FMAM4053 is a medium power RF amplifier manufactured by Fairview Microwave, designed for operation within the 500 MHz to 4 GHz frequency range. This component delivers a 1 Watt P1dB output power and incorporates an integrated heatsink for thermal management. It utilizes SMA connectors for interfacing and operates with a supply current of 1.5 A. The unit is classified as a general-purpose power amplifier suitable for wireless applications.

Feature Summary

• Integrated heatsink design for enhanced thermal dissipation
• SMA connector interface for standard RF integration
• Medium power output capability at 1 Watt P1dB

Applications

• Wireless communication systems
• Radar signal processing
• Test and measurement equipment

Procurement Notes

Verify availability status directly with authorized distributors, as stock levels may be restricted or subject to change. Confirm that the specific part number matches your required frequency range and power specifications before ordering. Ensure compatibility with existing SMA interfaces in your system design.

Selection Notes

Select this amplifier when a moderate output power of 1 Watt is required across the 500 MHz to 4 GHz spectrum. The built-in heatsink simplifies thermal design compared to units requiring external cooling solutions. Verify that the 1.5 A supply current aligns with your power budget constraints.

Part Context

This component belongs to the Fairview Microwave RF Amplifier category, specifically within the medium power segment. It serves as a discrete solution for signal amplification tasks where integrated circuit options may not provide sufficient output power or flexibility for custom RF front-end designs.

Replacement Considerations

Consult official manufacturer documentation for verified substitute part numbers. Do not assume cross-compatibility with other models without confirming electrical parameters and mechanical fit.
