FMAM4054

Overview

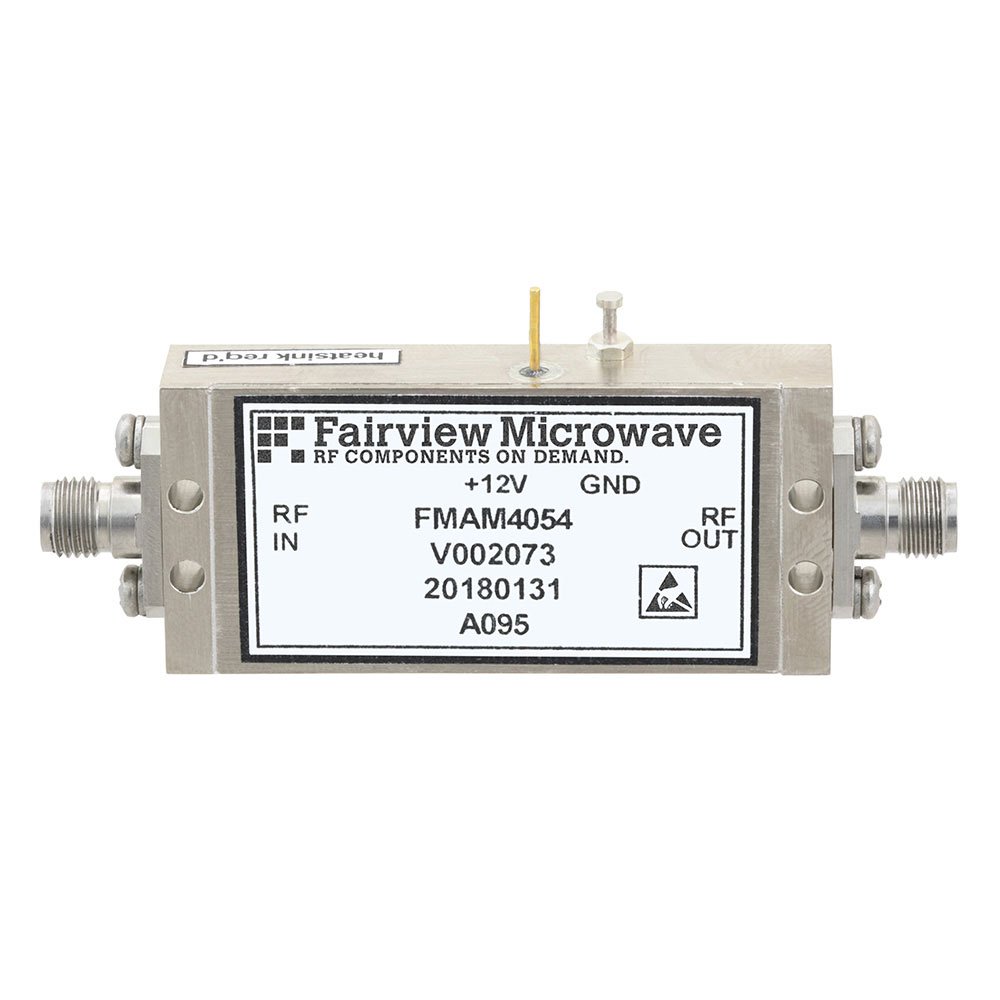

The FMAM4054 is a medium power RF amplifier manufactured by Fairview Microwave, designed for operation within the 2 GHz to 8 GHz frequency range. It features an SMA interface and delivers a 1 Watt P1dB output power level. The unit requires a 1.2 A operating supply current and includes an integrated heatsink for thermal management. This component is classified under power amplifiers and is packaged in a bag for distribution.

Feature Summary

• Medium power amplification capability with 1 Watt P1dB output
• Operates across a wide 2 GHz to 8 GHz frequency band
• Includes integrated heatsink for thermal dissipation
• Utilizes SMA connector interface

Applications

• Wireless communication systems requiring medium power amplification
• Test and measurement equipment operating in the specified frequency range
• RF signal processing applications

Procurement Notes

Verify the specific datasheet version for the FMAM4054 to confirm all electrical parameters and mechanical dimensions before integration. Ensure that the system power supply can provide the required 1.2 A operating current. Confirm that the SMA interface compatibility matches the system design requirements. Check for any specific handling or installation instructions related to the integrated heatsink.

Selection Notes

Select the FMAM4054 when a medium power amplifier is needed for frequencies between 2 GHz and 8 GHz. Consider the 1.2 A current requirement for power budgeting. The integrated heatsink simplifies thermal management compared to units requiring external cooling solutions. Verify that the SMA interface aligns with existing system connectors.

Part Context

Fairview Microwave produces the FMAM4054 as part of its RF amplifier portfolio. This model is categorized as a medium power amplifier, distinct from low noise or high power variants in their lineup. It serves applications needing reliable signal boosting within the UHF and SHF bands using standard SMA connections.

Replacement Considerations

Consult official Fairview Microwave documentation for confirmed substitute part numbers. Do not assume cross-compatibility with other manufacturers' models without verifying electrical and mechanical specifications.
