FMAM4056

Overview

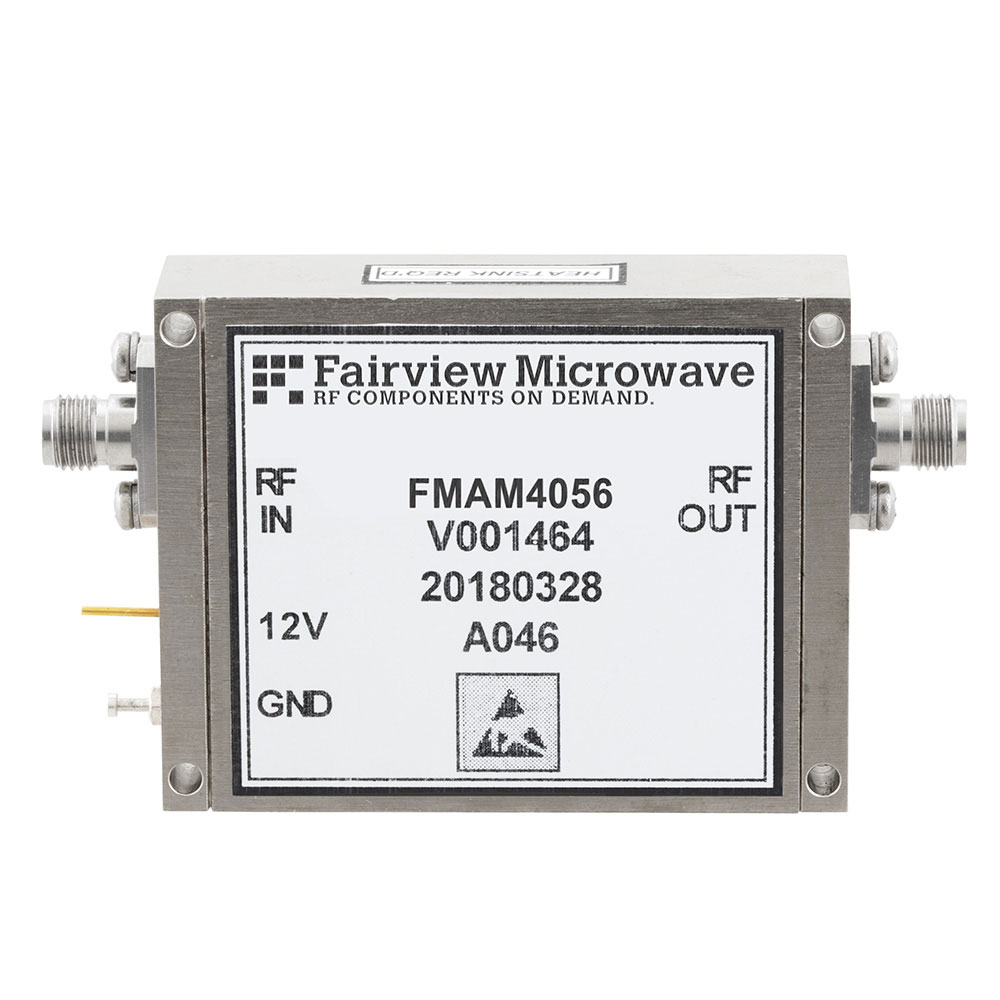

The FMAM4056 is a medium power RF amplifier module manufactured by Fairview Microwave, designed for operation within the 2 GHz to 18 GHz frequency range. It features SMA connectors and includes an integrated heatsink for thermal management. The device delivers a 1 Watt P1dB output power and provides a third-order intercept point (IP3) of 37 dBm. This chassis-mountable component is categorized under wireless and RF modules, suitable for applications requiring broadband amplification across microwave frequencies.

Feature Summary

• Broadband operation spanning from 2 GHz to 18 GHz
• Integrated heatsink for enhanced thermal dissipation
• Medium power output capability with specified linearity metrics

Applications

• Radar systems
• Electronic warfare equipment
• Test and measurement instrumentation

Procurement Notes

Verify the specific datasheet version for the FMAM4056 to confirm current electrical tolerances and mechanical dimensions. Ensure that the procurement channel provides authentic components from Fairview Microwave. Check for any updated compliance certifications or environmental restrictions applicable to this RF module before finalizing acquisition.

Selection Notes

Select the FMAM4056 when a broadband medium power amplifier is required between 2 GHz and 18 GHz. Consider its 37 dBm IP3 for linearity needs and the included heatsink for thermal constraints. Verify that the SMA interface and chassis mounting style align with the system design requirements compared to other RF amplifier modules in the product line.

Part Context

This component belongs to the Fairview Microwave RF Amplifier category, specifically within the sub-class of Wireless & RF Modules. It is distinct from low noise amplifiers like the FMAM1073 or high-power GaAs variants such as the FMAM5009, focusing instead on medium power performance with broad frequency coverage.

Replacement Considerations

No officially confirmed substitute part numbers are documented in the provided source material. Evaluate alternative Fairview Microwave models based on matching frequency ranges and power specifications if direct replacement is necessary.
