FMAM4058F

Overview

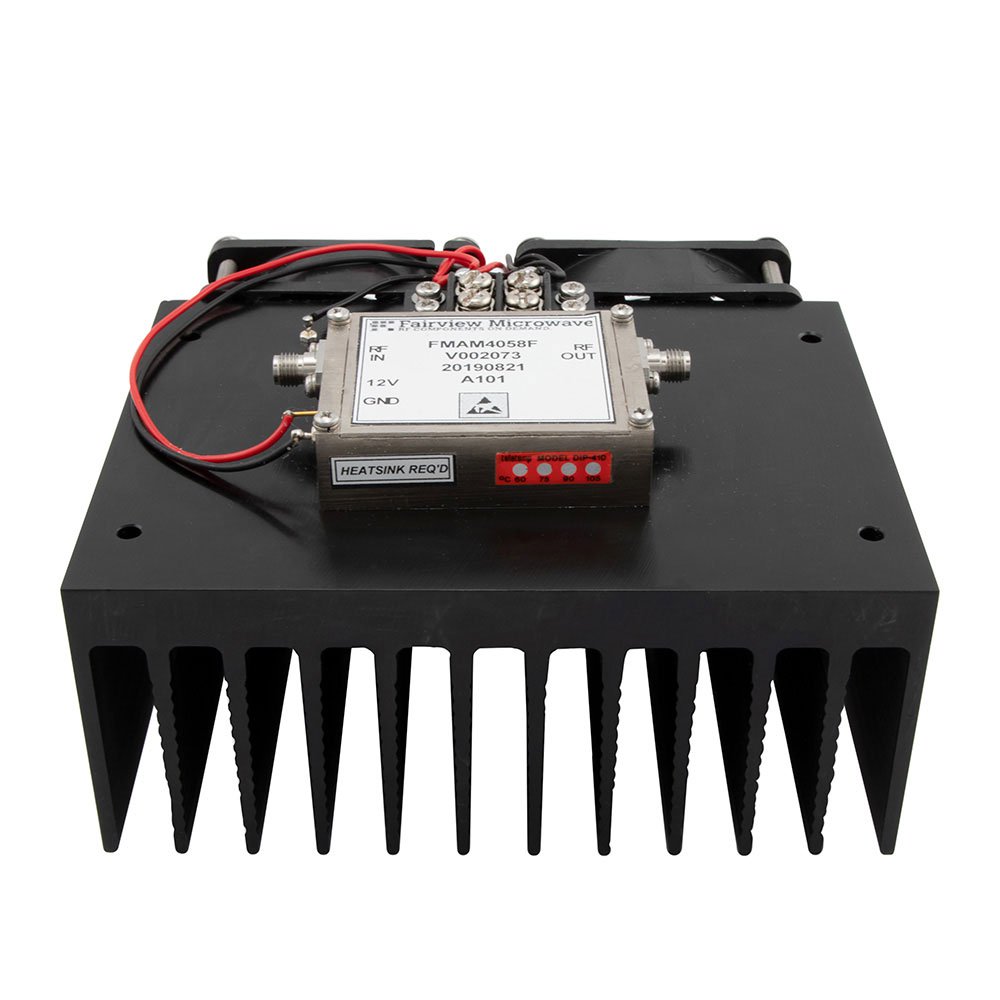

The FMAM4058F is a medium power RF amplifier manufactured by Fairview Microwave, designed for operation within the 2 GHz to 20 GHz frequency range. It features SMA connectors and includes an integrated heatsink for thermal management. Key electrical specifications include a 1 Watt P1dB output power and a third-order intercept point (IP3) of 38 dBm. The unit is packaged individually in a bag.

Feature Summary

• Medium power amplification capability with integrated thermal dissipation structure
• Broadband operational coverage spanning from 2 GHz to 20 GHz
• Utilizes SMA interface connectors for signal transmission

Applications

• Test and measurement instrumentation requiring broadband amplification
• Wireless communication systems operating in UHF through K-band frequencies
• Radar system signal processing chains

Procurement Notes

Verify the specific datasheet version provided by Fairview Microwave or authorized distributors to confirm current manufacturing status and detailed electrical tolerances. Ensure that the SMA connector polarity and mating requirements align with the host system interface specifications before integration into the final design architecture.

Selection Notes

Select this component when a wide bandwidth covering 2 GHz to 20 GHz is required alongside moderate output power levels. The inclusion of a heatsink indicates suitability for applications where continuous wave operation generates significant thermal load. Verify that the 38 dBm IP3 meets linearity requirements for the intended signal environment.

Part Context

This device belongs to the Fairview Microwave RF Amplifier product line, specifically categorized under wireless and RF integrated circuits. It serves as a discrete solution for engineers needing plug-and-play amplification modules without custom board design efforts, fitting into the broader category of commercial off-the-shelf RF components.

Replacement Considerations

No public substitute part numbers are documented for this specific model. Engineers must evaluate alternative broadband medium power amplifiers from other manufacturers based on matching frequency ranges, connector types, and thermal performance characteristics.
