FMAM4061

Overview

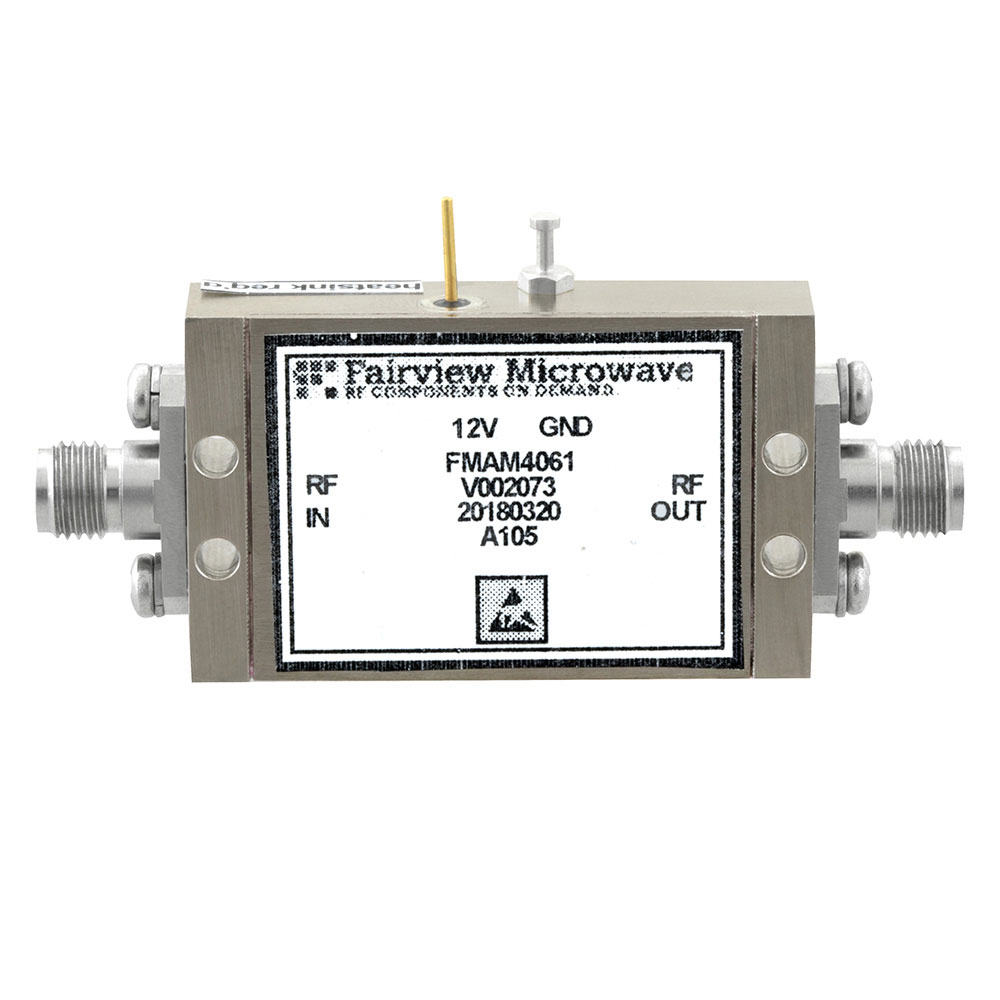

The FMAM4061 is a medium power RF amplifier manufactured by Fairview Microwave, designed for operation within the 6 GHz to 18 GHz frequency range. It features an SMA connector interface and includes an integrated heatsink for thermal management. The device delivers a P1dB output power of 27 dBm and requires a supply current of 800 mA. Classified under wireless and RF integrated circuits, it serves as a specialized component for high-frequency signal amplification applications requiring moderate power output.

Feature Summary

• Integrated heatsink design for enhanced thermal dissipation during continuous operation
• SMA connector interface for standardized RF signal transmission
• Medium power amplification capability optimized for specific frequency bands

Applications

• Radar systems operating in Ku-band frequencies
• Wireless communication infrastructure components
• Test and measurement equipment requiring stable RF gain

Procurement Notes

Verify part authenticity through authorized Fairview Microwave distributors or certified partners. Confirm that the received unit matches the specified model number FMAM4061 and includes the documented heatsink configuration. Check datasheet revisions for any updates to electrical characteristics or mechanical dimensions prior to integration into final designs.

Selection Notes

Select this amplifier when a 6 GHz to 18 GHz operational range is required with 27 dBm P1dB output. Ensure system power supplies can provide the necessary 800 mA current draw. Consider the SMA interface compatibility with existing board layouts and the thermal requirements addressed by the built-in heatsink structure.

Part Context

This component belongs to Fairview Microwave's portfolio of RF amplifiers targeting wireless and RF integrated circuit applications. It is categorized specifically as a power amplifier type, distinct from low-noise or general-purpose variants within the manufacturer's lineup, focusing on mid-range power delivery for defined microwave frequency operations.

Replacement Considerations

The FMAM4062F offers similar performance with 1 Watt P1dB output in the same 6 GHz to 18 GHz range but draws higher current (1.8 A). Verify interface and thermal compatibility before substitution.
