FMAM4062

Overview

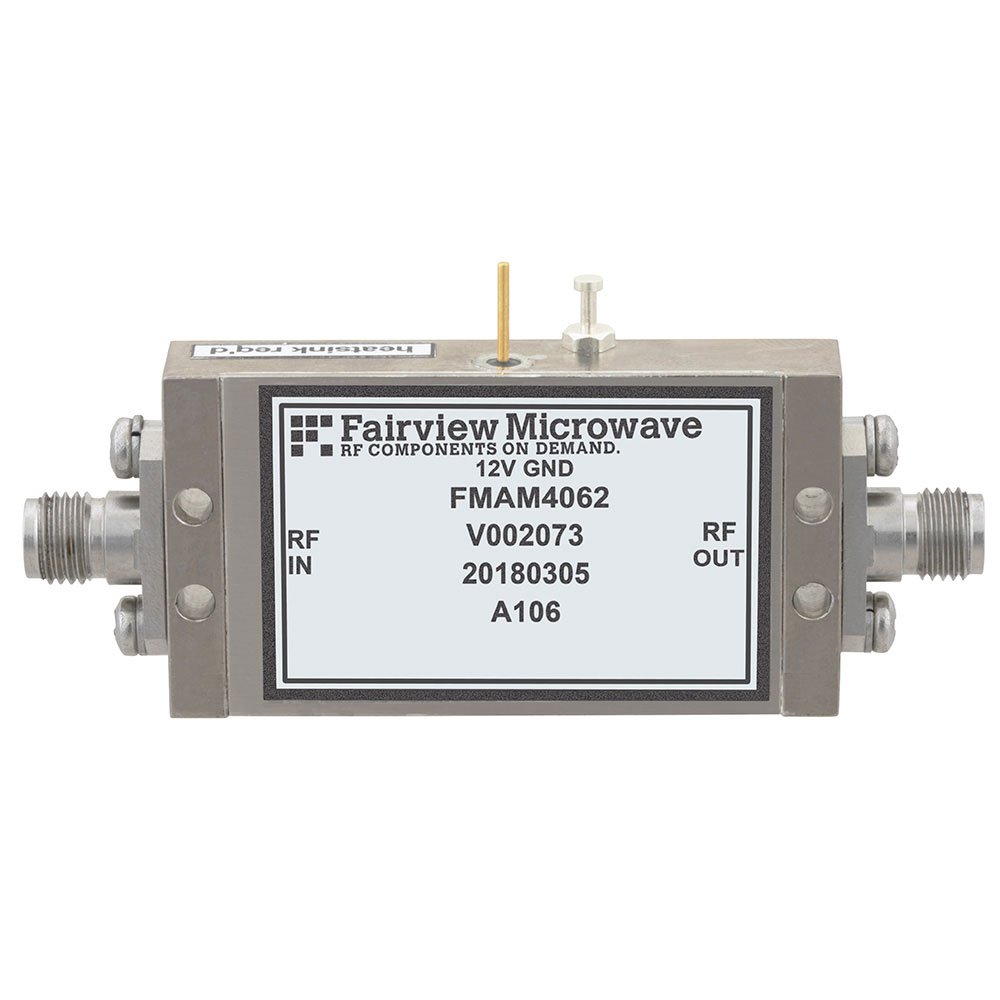

The FMAM4062 is a medium power RF amplifier manufactured by Fairview Microwave, designed for operation within the 6 GHz to 18 GHz frequency range. It features an SMA interface and incorporates a heatsink for thermal management. The device delivers a P1dB output power of 1 Watt. It operates with a supply current of 1.8 A. The unit is packaged in a bag and weighs approximately 1.361 kg. This component belongs to the Wireless & RF Integrated Circuits subcategory.

Feature Summary

• Medium power amplification capability integrated with a dedicated heatsink structure
• Operational frequency coverage spanning from 6 GHz to 18 GHz
• Utilizes SMA connector interface for signal transmission

Applications

• RF signal amplification in microwave communication systems
• Test and measurement equipment requiring wideband amplification
• Military and aerospace radar subsystems

Procurement Notes

Verify part authenticity through authorized Fairview Microwave channels or certified distributors. Confirm that the specific revision matches project requirements, as the model may be listed as obsolete in some catalogs. Ensure proper handling procedures are followed due to the presence of a heavy heatsink assembly. Validate electrical specifications against the official datasheet before integration into final designs.

Selection Notes

Select this component when a wideband 6-18 GHz amplifier with moderate output power is required. The integrated heatsink suggests suitability for applications where thermal dissipation is critical without external cooling solutions. Compare the 1.8 A supply current requirement against available power budgets. Consider the SMA interface compatibility with existing system interconnects and the physical weight constraints of the installation environment.

Part Context

This amplifier is part of Fairview Microwave's portfolio of RF modules and amplifiers. It shares design characteristics with other models in the series, such as the FMAM4062F, which offers similar frequency ranges but may differ in specific performance metrics or packaging details. The product falls under the broader category of wireless and RF integrated circuits used in high-frequency electronic systems.

Replacement Considerations

The FMAM4062F is a related variant within the same manufacturer's lineup. Verify if the F-suffix denotes a specific revision or updated specification that meets the application needs. Cross-reference electrical parameters carefully, as differences in current draw or power output may exist between the standard and suffix-designated versions.
