Product Detailed Parameters
- Description：POWER AMP 8000MHZ-12.4GHZ P1DB S
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency：-
- P1dB：-
- Gain：-
- Noise Figure：-
- RF Type：-
- Voltage - Supply：-
- Current - Supply：-
- Test Frequency：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

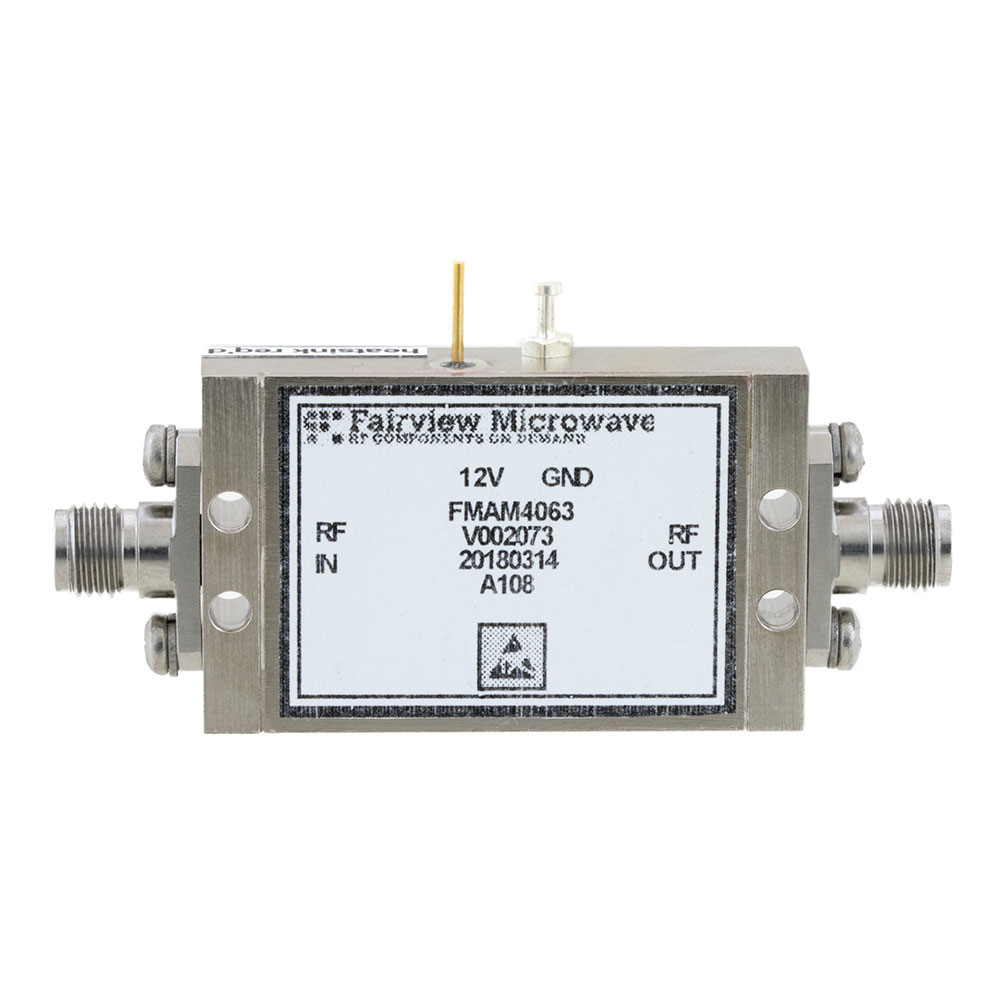

The FMAM4063 is a medium power RF amplifier manufactured by Fairview Microwave, designed for operation within the 8 GHz to 12.4 GHz frequency range. This component delivers a P1dB output power of 27 dBm and features an integrated heatsink for thermal management. It utilizes SMA connectors for interfacing and requires a supply current of 800 mA during operation. The unit is packaged in a bag and weighs approximately 545.444 grams.
Feature Summary
- Integrated heatsink design for enhanced thermal dissipation
- SMA connector interface for standard RF integration
- Medium power amplification with specified P1dB performance
Applications
- RF signal chain amplification
- Test and measurement equipment
- Wireless communication systems
Procurement Notes
Verify availability status as distribution channels may indicate restricted supply or regional sales limitations. Confirm that the specific model suffix matches the required frequency and connector specifications. Ensure compatibility with existing thermal management solutions due to the integrated heatsink design. Validate operating voltage and current requirements against system power budgets before procurement.
Selection Notes
Select this amplifier when a gain stage is required specifically between 8 GHz and 12.4 GHz. The 27 dBm P1dB rating suits applications needing moderate output power without excessive heat generation beyond the provided heatsink capacity. Consider the 800 mA current draw for power supply sizing. Compare against other models in the series if different frequency bands or connector types are needed.
Part Context
This component belongs to the Fairview Microwave RF Amplifier product line, categorized under Wireless & RF Integrated Circuits. It is part of a family of medium power amplifiers that vary primarily by operating frequency range and output power levels. Similar models include the FMAM4061F and FMAM4062F, which cover adjacent or broader frequency spectrums.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users should consult the manufacturer's datasheet for direct replacements or evaluate similar models like the FMAM4061F based on frequency overlap.
