FMAM4065
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：POWER AMP 18000MHZ-40GHZ P1DB 2.
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency：18GHz ~ 40GHz
- P1dB：23dBm
- Gain：35dB
- Noise Figure：9dB
- RF Type：Radar
- Voltage - Supply：12V
- Current - Supply：1A
- Test Frequency：-
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

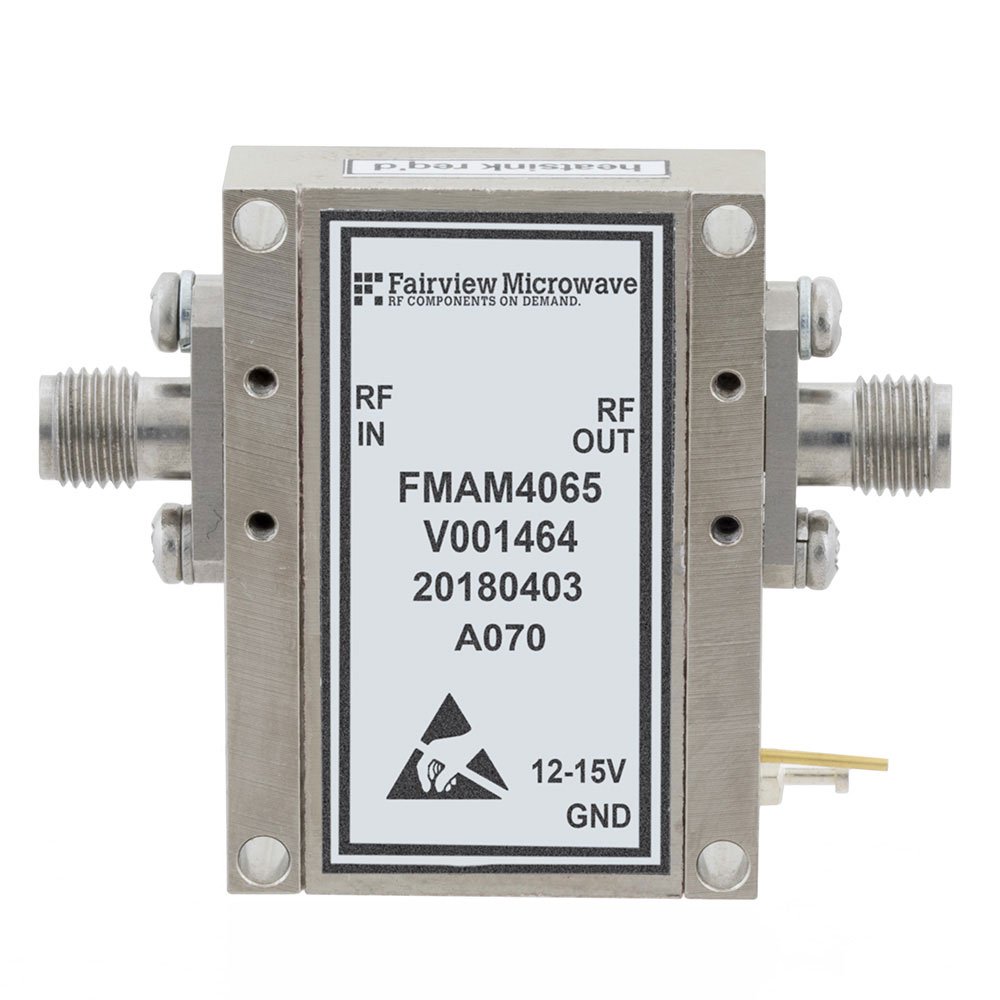

The FMAM4065 is a medium power amplifier manufactured by Fairview Microwave, designed for general-purpose applications. It operates within a frequency range of 18 GHz to 40 GHz and utilizes 2.92mm connectors. The device delivers a saturated output power (Psat) of 23 dBm at the P1dB point. This component is RoHS compliant and serves as a high-frequency signal amplification solution in RF systems.
Feature Summary
- Operates across the 18 GHz to 40 GHz frequency spectrum
- Provides 23 dBm output power at the P1dB compression point
- Utilizes 2.92mm connector interface for signal transmission
Applications
- General purpose RF signal amplification
- High-frequency communication systems
- Test and measurement equipment
Procurement Notes
Verify the specific datasheet version and RoHS compliance status directly with Fairview Microwave or authorized distributors before procurement. Confirm that the 2.92mm interface matches your system requirements. Ensure that the operating frequency range aligns with your application needs to avoid performance degradation.
Selection Notes
Select the FMAM4065 when a medium power amplifier is required for frequencies between 18 GHz and 40 GHz. Consider its 23 dBm output capability and 2.92mm interface compatibility. Evaluate thermal management requirements due to the power level. Compare against other models like the FMAM4067 if higher frequency operation up to 40 GHz with different power characteristics is needed.
Part Context
The FMAM4065 belongs to Fairview Microwave's line of medium power amplifiers. It is positioned alongside other models such as the FMAM4062F and FMAM4067, which cover different frequency ranges and power outputs. This model specifically targets the 18-40 GHz band, filling a niche for high-frequency general-purpose amplification.
Replacement Considerations
The FMAM4067 is a potential substitute offering operation from 26.5 GHz to 40 GHz with 27 dBm Psat. Verify interface compatibility and power specifications. No other direct substitutes are confirmed in public documentation.
