Product Detailed Parameters
- Description：POWER AMP 5500MHZ-9.5GHZ P1DB SM
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency：5.5GHz ~ 9.5GHz
- P1dB：37dBm
- Gain：23.5dB
- Noise Figure：8.5dB
- RF Type：Radar
- Voltage - Supply：-
- Current - Supply：-
- Test Frequency：-
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

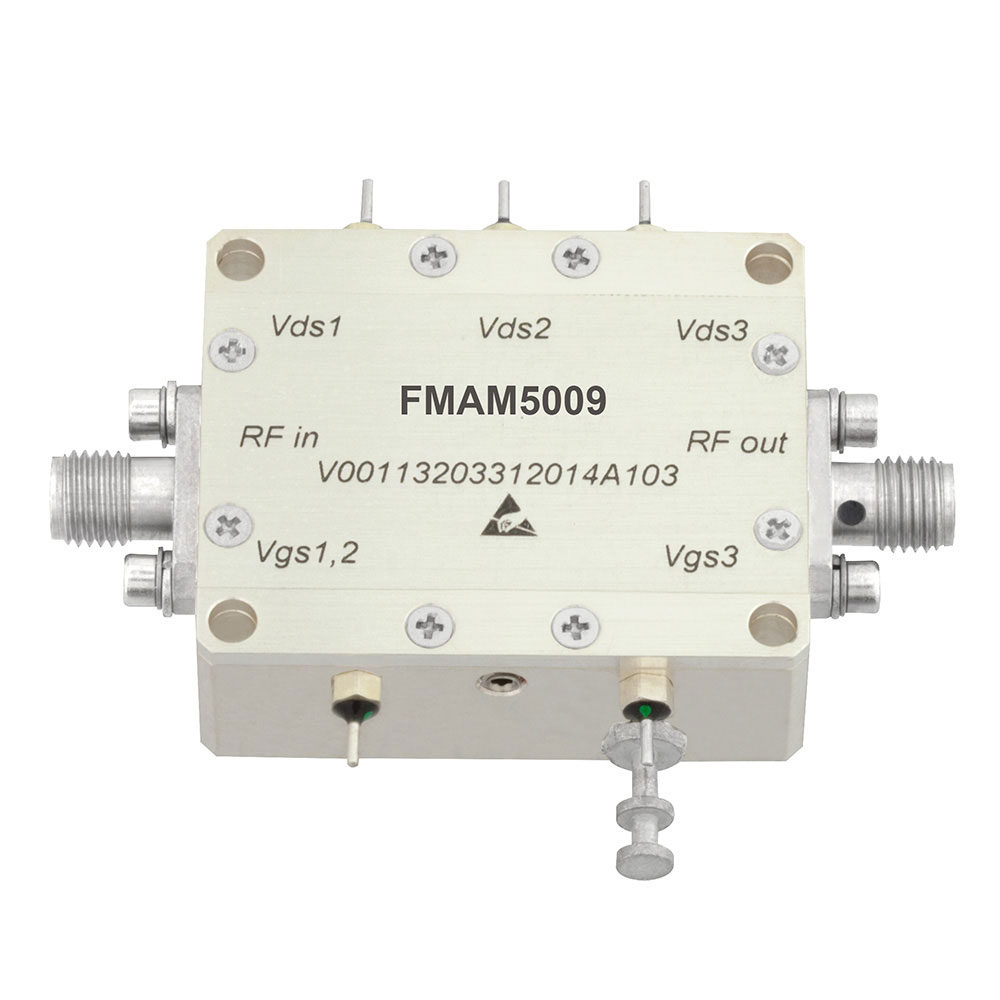

The FMAM5009 is a high-power GaAs amplifier manufactured by Fairview Microwave, designed for operation within the 5.5 GHz to 9.5 GHz frequency range. It delivers a typical gain of 23.5 dB with a saturated output power (Psat) of 6.3 Watts. The device features a third-order intercept point (OIP3) of 47 dBm and a 1 dB compression point (P1dB) of 37 dBm. It utilizes SMA connectors for input and output interfaces and is packaged in a bag.
Feature Summary
- Utilizes Gallium Arsenide (GaAs) technology for high-power performance
- Provides high linearity with a 47 dBm OIP3 specification
- Operates across a wide microwave frequency band from 5.5 GHz to 9.5 GHz
Applications
- Microwave communication systems
- Test and measurement equipment
- Electronic warfare applications
Procurement Notes
Verify component authenticity through authorized Fairview Microwave channels or certified distributors. Confirm that the specific unit matches the FMAM5009 designation and includes necessary documentation such as test reports or calibration certificates if required for your application. Ensure SMA connector compatibility with existing system infrastructure before procurement.
Selection Notes
Select this model when high output power and linearity are critical requirements within the 5.5-9.5 GHz spectrum. The GaAs construction supports robust performance compared to other technologies. Consider the SMA interface for standard integration. Evaluate thermal management needs given the 6.3 Watt Psat capability to ensure reliable operation under continuous load conditions.
Part Context
This component belongs to the Fairview Microwave RF amplifier portfolio, specifically targeting high-power applications. It complements their broader range of wireless and RF integrated circuits. The FMAM5009 serves as a specialized solution for engineers requiring significant signal amplification in microwave bands without compromising linearity.
FAQ
What is the maximum saturated output power?
The FMAM5009 provides a saturated output power (Psat) of 6.3 Watts.
Does the amplifier include heatsink mounting?
The provided specifications do not explicitly list an integrated heatsink for the FMAM5009, unlike some other models in the series. External thermal management may be required.
